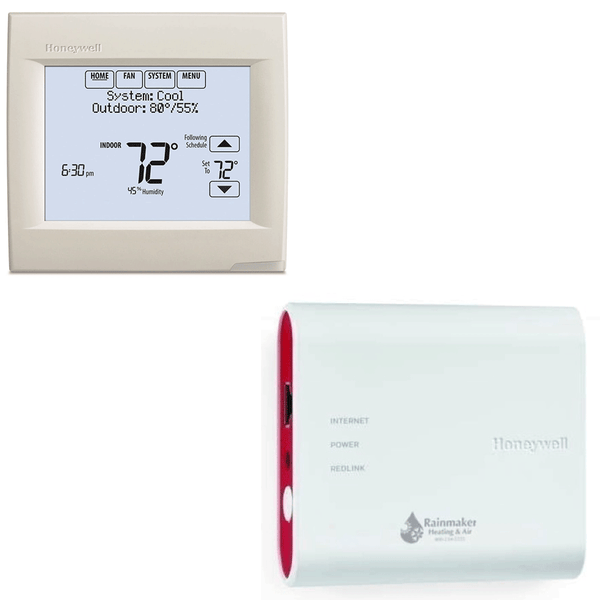

Honeywell YTH8321R1002 VisionPRO 8000 Programmable Thermostat w/ RIG
VisionPROÂ® 8000 with RedLINK is a 7 day programmable touchscreen thermostat that is selectable for residential or light commercial use. The thermostat can be wired directly to the equipment, used with the THM5421R1021 Equipment Interface Module or used with the THM4000R1000 TrueZONE Wireless Adapter. Works with the RedLINK accessories including the RedLINK Internet Gateway, Portable Comfort Control, Wireless Outdoor Sensor, Wireless Indoor Sensor, Wireless Entry/Exit Remote and Wireless Vent and Filter Boost Remote.
VisionPRO 8000 thermostat (TH8321R1001)
RedLINK Internet Gateway (RIG) (THM6000R1002)
Thermostat works standalone or with the THM5421R1021 Equipment Interface Module or with the TrueZONE Wireless Adapter.
Smart Schedule - programs in seconds for any lifestyle.
Patented interview based programming and installer setup.
RedLINK wireless communication.
Increase profit per job by including RedLINK accessories that provide comfort and convenience. RedLINK accessories include the RedLINK Internet Gateway, Portable Comfort Control (PCC), Wireless Outdoor Sensor, Wireless Indoor Sensor, Wireless Entry/Exit Remote, Wireless Vent and Filter Boost Remote, TrueSTEAM? humidifier with Wireless Adapter and TrueZONEÂ® zoning panel with Wireless Adapter.
Selectable for residential and light commercial applications. Meets commercial code and is title 24 compliant.
Light commercial - commercial language (occupied and unoccupied), schedule holidays and custom events, remote setback, economizer and time of day. Remote Setback requires the THM5421R1021 Equipment Interface Module.
Plain language setup, no manual needed.
Alerts and User Interactions Log - Keeps a searchable history of alerts and setting changes to the thermostat to determine if there is a system malfunction or if the issue was caused by a user error. Saves time in troubleshooting and points the technician in the right direction. The Alert and User Interaction Logs are viewable on a computer after you download them from the thermostat to a microSD card.
Customizable Service Reminders allow dealers to remind their customers when its time to call for service, when their warranty is expiring and to provide customized alerts.
MicroSD port for copying the Installer Setup, Customizable Reminders, Custom Events and Holidays to multiple thermostats.
MicroSD port for adding the dealer's contact information on the screen.
1 assignable output on the TH8321 model to control humidification, dehumidification, ventilation or a stage of heating/cooling.
3 assignable outputs on the Equipment Interface Module to control humidification, dehumidification, ventilation or a stage of heating/cooling. The TH8110 and TH8320 models require the use of a Wireless Indoor Sensor to control humidification and dehumidification.
1 assignable input can be used with a wired outdoor, indoor or discharge sensor.
4 assignable inputs on the Equipment Interface Module can be used with wired outdoor, indoor or discharge sensors, occupancy sensor for remote setback and dry contact devices to trip pre-packaged or custom alerts such as a full drain pan or water leak.
Extend wireless range of the Equipment Interface Module by connecting a THM4000R1000 Wireless Adapter to the ABCD terminals.
Dual powered - battery or hardwired (C wire).
Precise temperature control (+/- 1Â° F) for reliable and consistent temperature.
Multiple staging options to provide comfort or energy savings.
