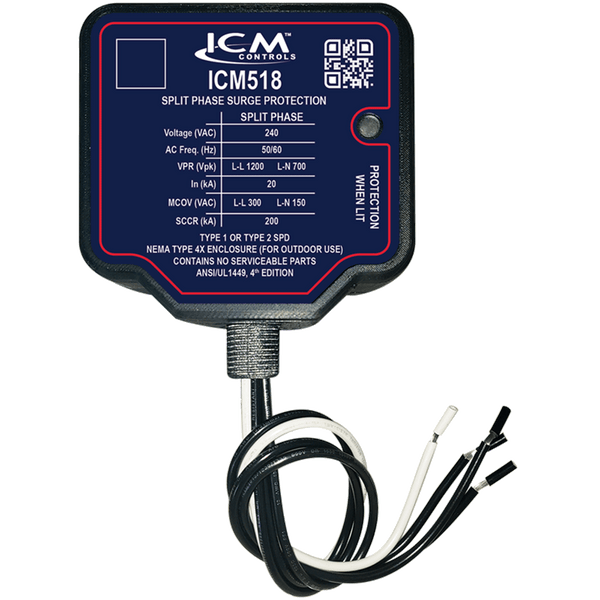

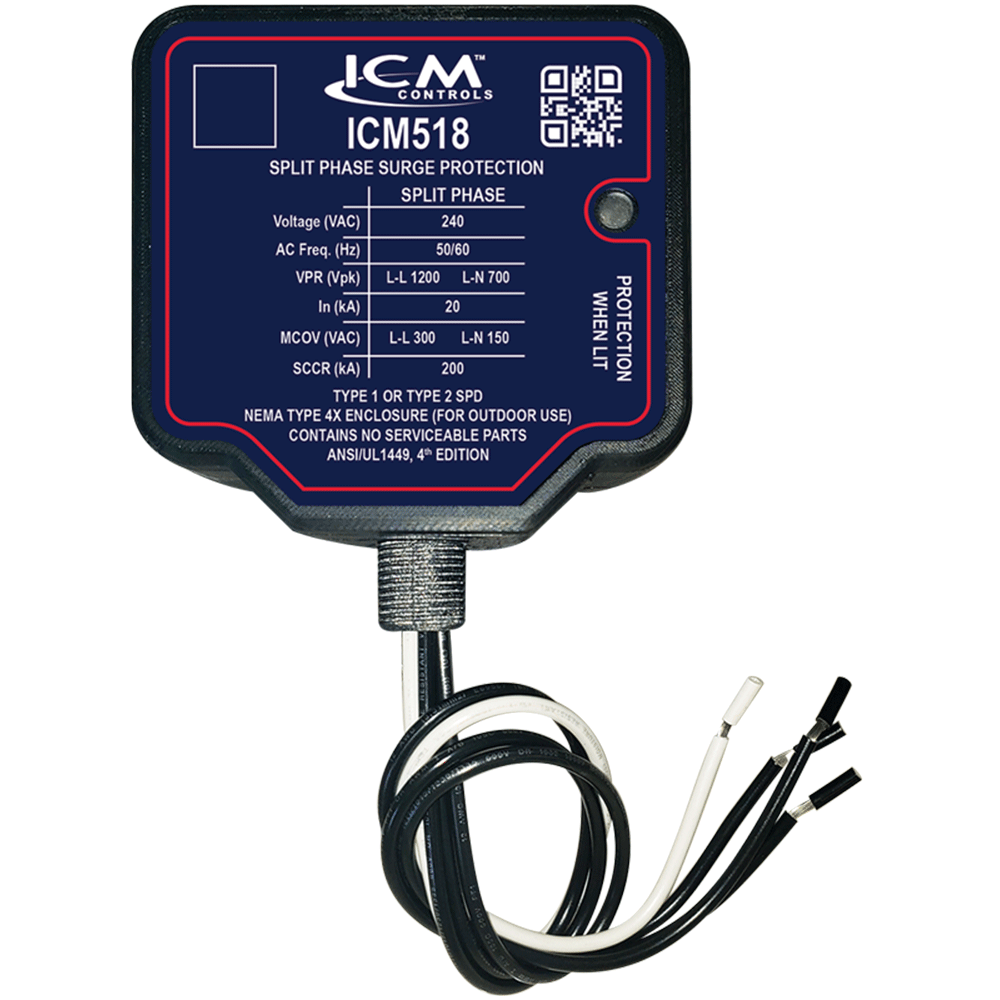

ICM Controls ICM518 Split-Phase Surge Protection Device for 240VAC

The ICM518 is a UL Listed Type 1&2 Surge Protective Device for 240 VAC Split Phase voltage configurations. When a surge occurs, the ICM518 will absorb the surge up to the limits expressed in the specifications section of this guide. The ICM518 incorporates thermal protection on the surge elements (TMOV’s) which allows for safe disabling of the surge elements when a surge exceeds the thermal limits of the device. The ICM518 has a status light on the control which identifies operational status when illuminated. The ICM518 can be installed as a Type 1 or Type 2 device for both indoor and outdoor applications. Suitable for use on a circuit capable of delivering not more than 200kA RMS symmetrical amperes, 240V maximum (Convient à des circuits produisant au plus 200kA RMS A eff.”, 240V maximum). Features 240 VAC split surge protective device Easy 3-wire installation 3/4” conduit connection Green LED indicator tells whether the device is operational Low cost, high performance Rugged and reliable UL Listed Type 1 or Type 2 SPD NEMA Type 4X watertight enclosure for indoor/outdoor use Surge protection technology: Thermally protected MOVs (TFMOV)
