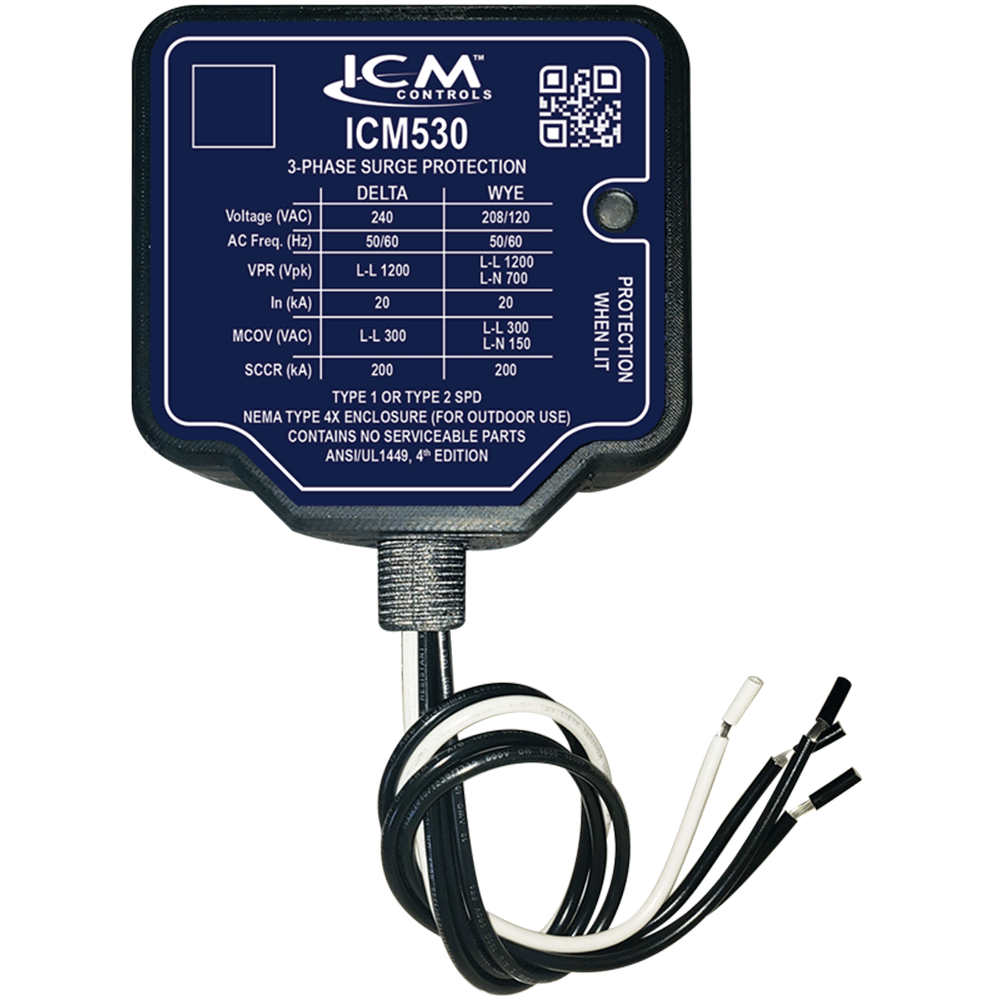

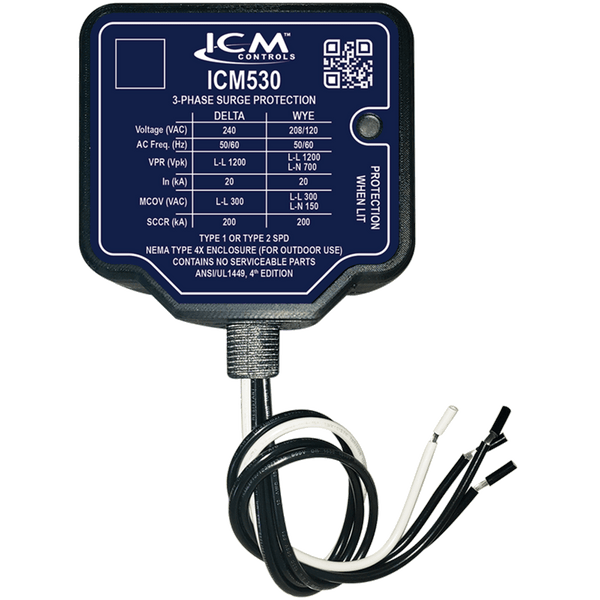

ICM Controls ICM530 3-Phase Surge Protective Device for 240VAC

13 items left
ICM530 (3-Phase Delta 240VAC or Wye 120/208VAC) The ICM530 is a UL Listed Type 1&2 Surge Protective Device for three phase Delta 240 VAC or Wye 120/208 VAC three phase voltage configurations. When a surge occurs, the ICM530 will absorb the surge up to the limits expressed in the specifications section of this guide. The ICM530 incorporates thermal protection on the surge elements (TMOV’s) which allows for safe disabling of the surge elements when a surge exceeds the thermal limits of the device. The ICM530 has a status light on the control which identifies operational status when illuminated. The ICM530 can be installed as a Type 1 or Type 2 device for both indoor and outdoor applications. Suitable for use on a circuit capable of delivering not more than 200kA RMS symmetrical amperes, 240V maximum (Convient à des circuits produisant au plus 200kA RMS A eff.”, 240V maximum). Features Delta or Wye Configuration NEMA Type 4X watertight plastic enclosure for outdoor and indoor installation Green LED indicates surge protection present Easily connects to electrical panel or disconnect for indoor and outdoor applications UL Listed Type 1 or Type 2 SPD Applications Appliance Electrical HVAC/R Pool & Spa
