ICM Controls

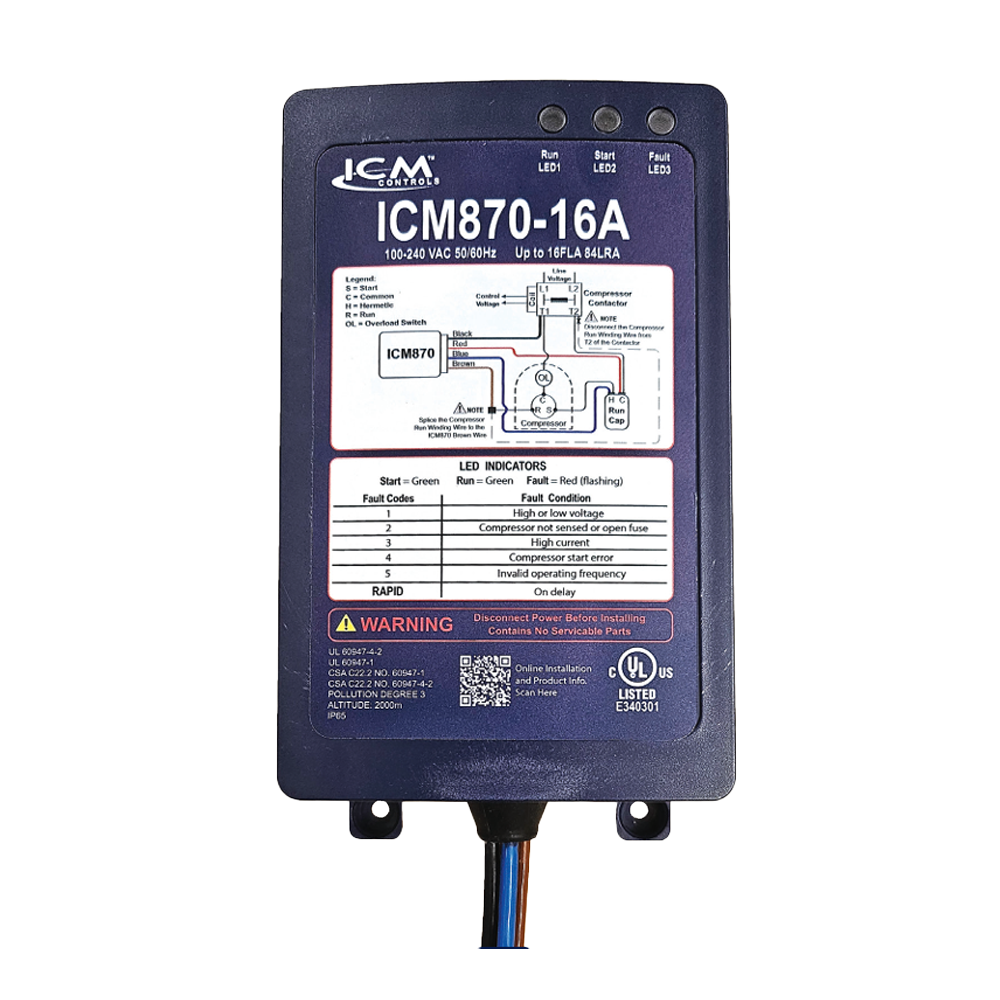

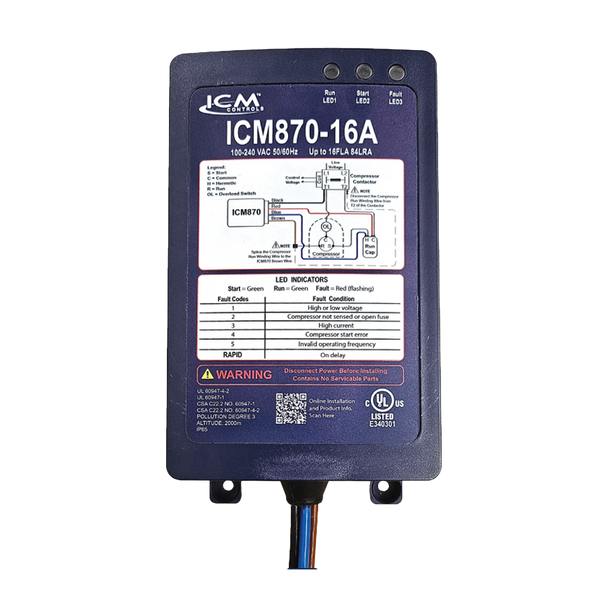

ICM Controls ICM870 Series 16A Soft Start W/ Over-Current Protection
ICM Controls ICM870 Series 16A Soft Start W/ Over-Current Protection
Regular price
$196.99
Regular price
Sale price
$196.99
Unit price
/
per
234 in stock
The ICM870 Soft Start is intended for residential, commercial, RV & marine applications. The ICM870 integrates compressor or motor in-rush current over startup time, thus reducing peak current demand on a power supply source by up to 70%.
Effectively reducing power draw to the A/C, the ICM870 utilizes a built-in self learning algorithm to deliver the optimal in-rush current per application. The ICM870 will monitor system health including voltage, current, compressor startup and integrity. Upon a fault condition, it will halt operation and initiate a 3 minute anti-short cycle routine while providing diagnostic fault information by means of an LED indicator.
* Note: The ICM870-16A will handle a condenser up to about 2-1/2 tons
Features:
Reduces in-rush current/draw necessary at startup by up to 70%
Prolong the life of the A/C by reducing excessive torque, wear and tear
Reduce loud noises, light flickering, and breaker trips
Built-in self-learning algorithm
Over-current protection
Over/under voltage monitoring
Built-in start capacitor
LED fault indicators
Ultrasonic sealed tamper-proof enclosure
Installation hardware is included
