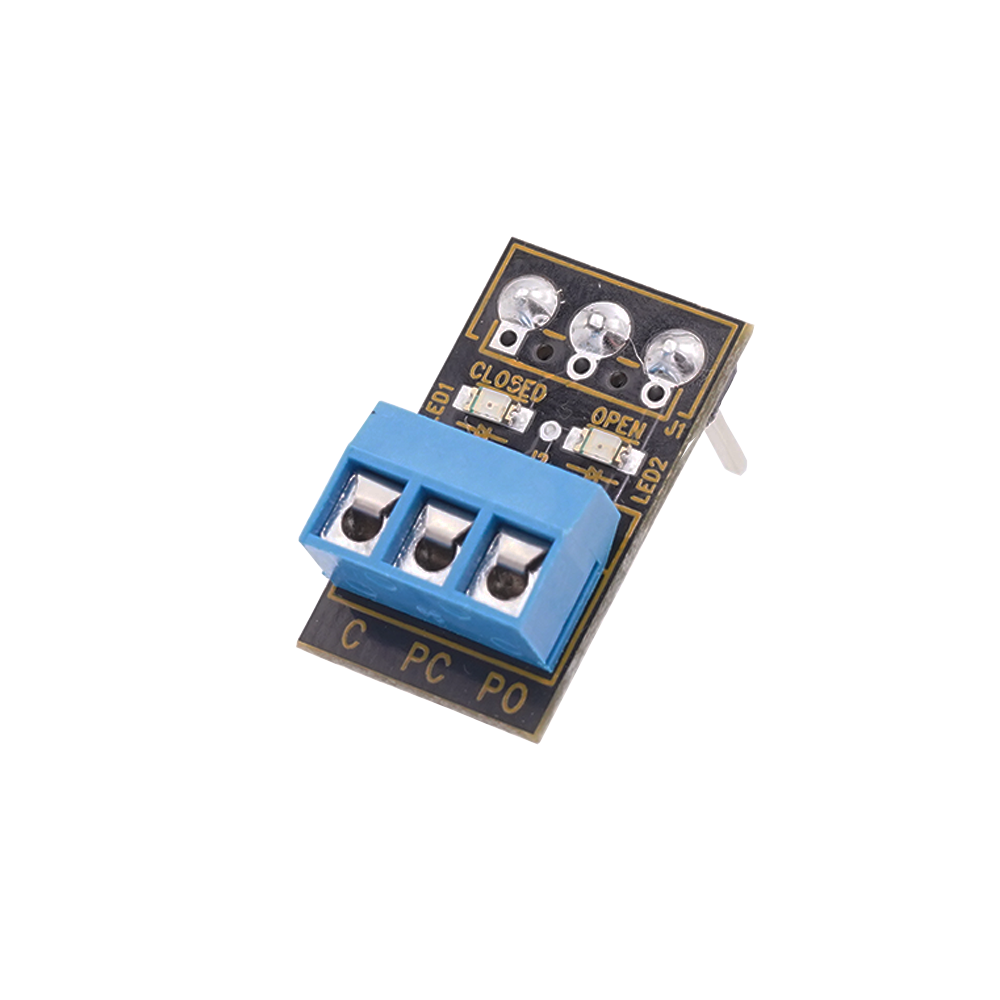

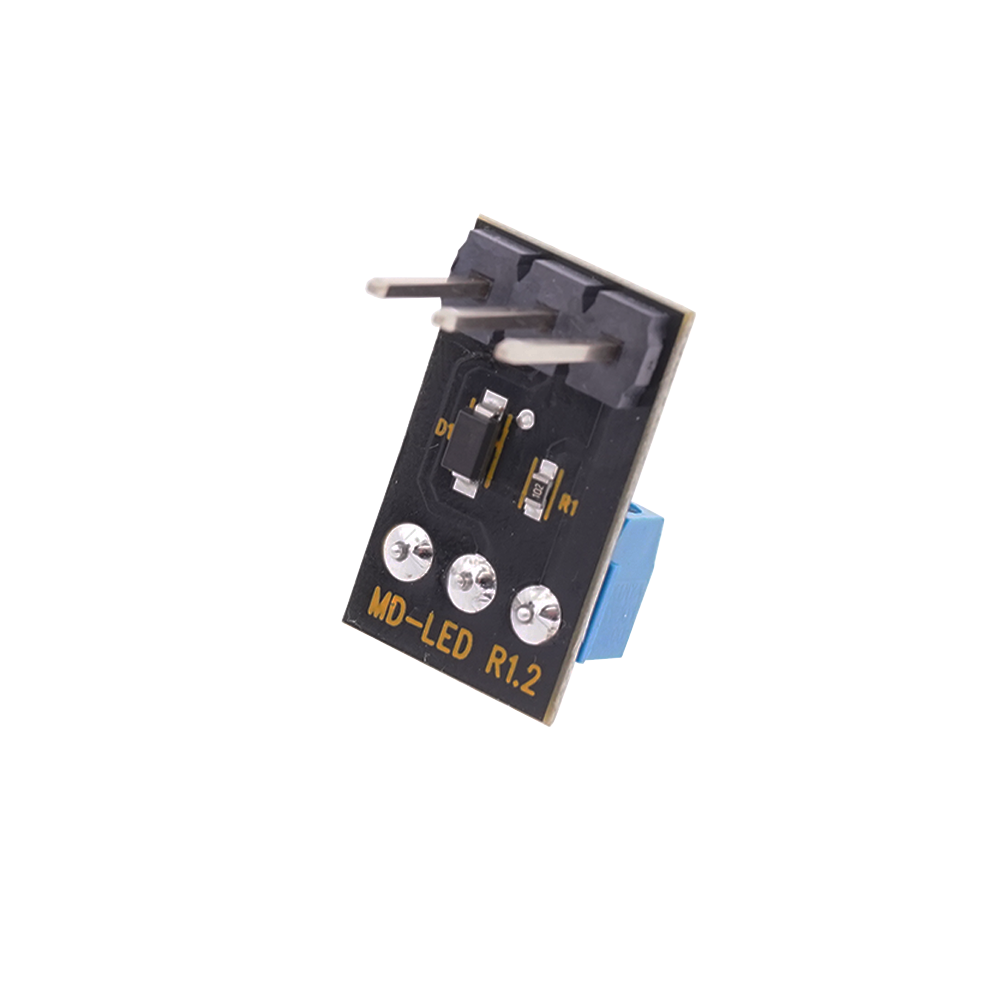

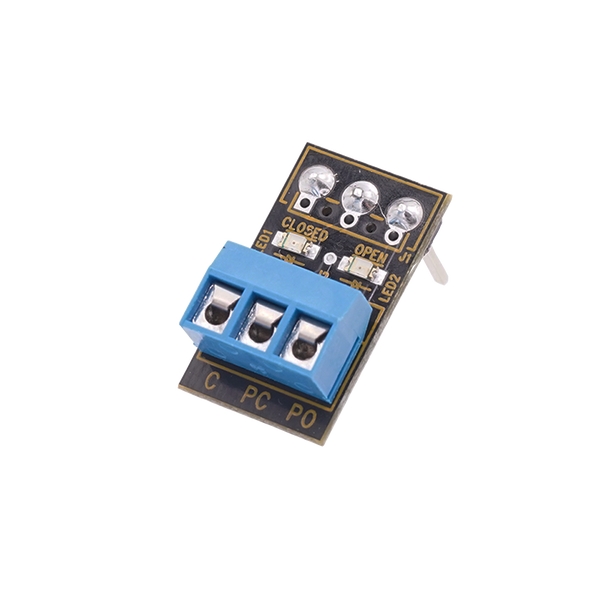

The MOTOR-LED actuator LED add-on board is designed to provide LED indication for Belimo 3-wire actuators.

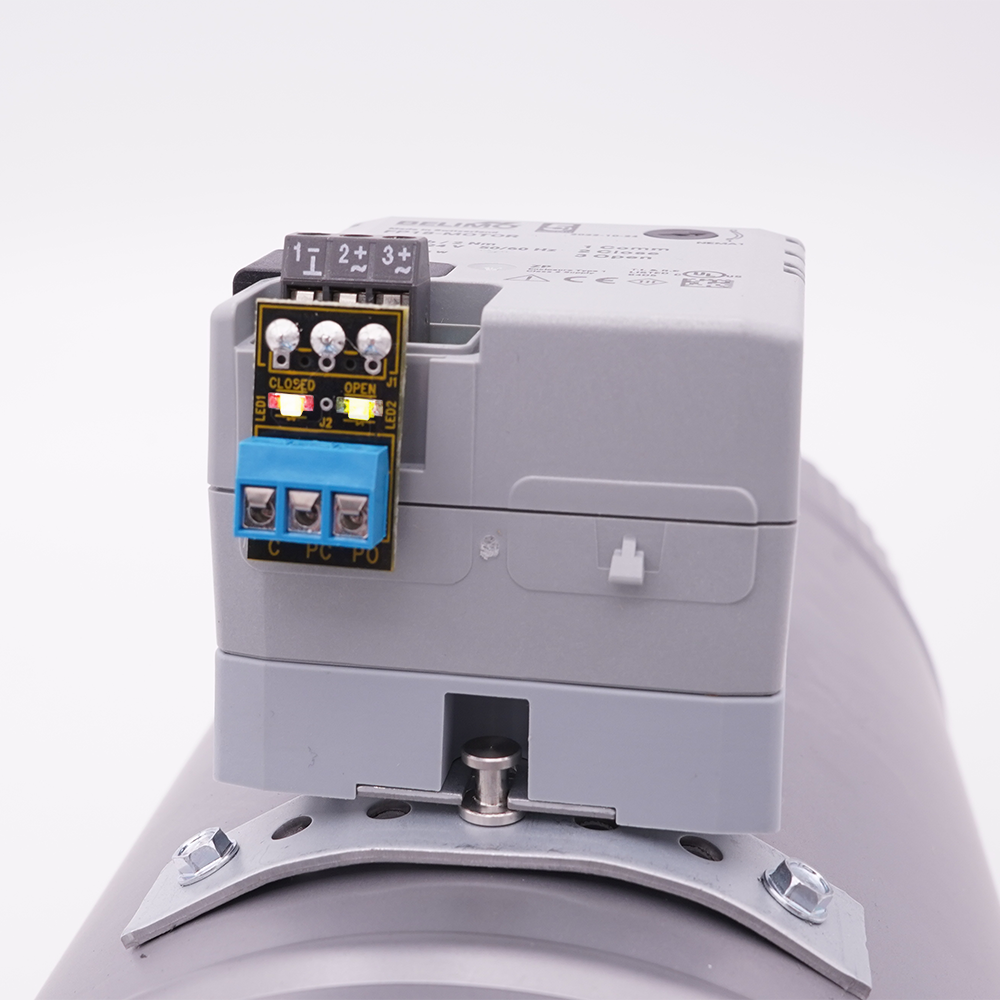

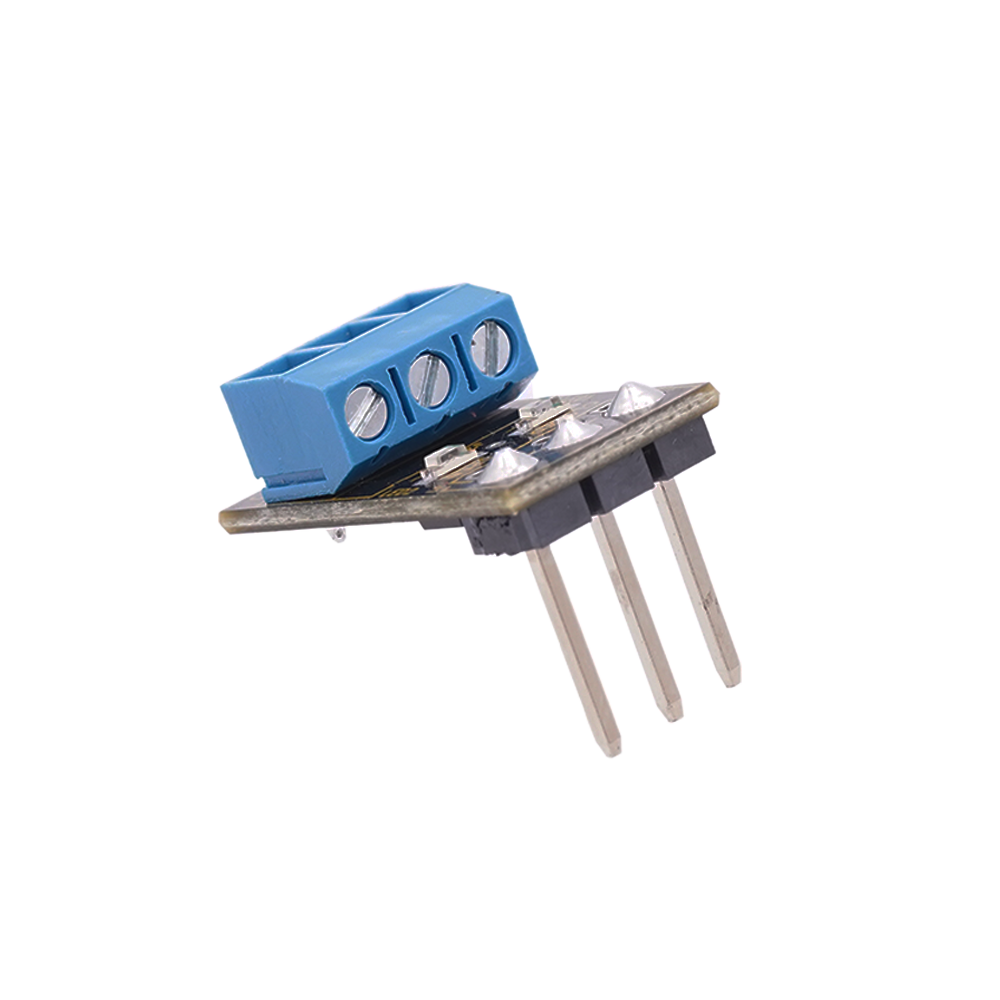

The 3 pin header will line up with the terminal strip built in to the Belimo actuator. Insert the pins into the terminal strip and tighten down the screws until snug. The 3 wires from the zone panel will wire into the terminal strip on the LED add-on board.
