Klein 3005CR Full-Cycle Ratcheting Crimper for 10-22 AWG Terminals
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.

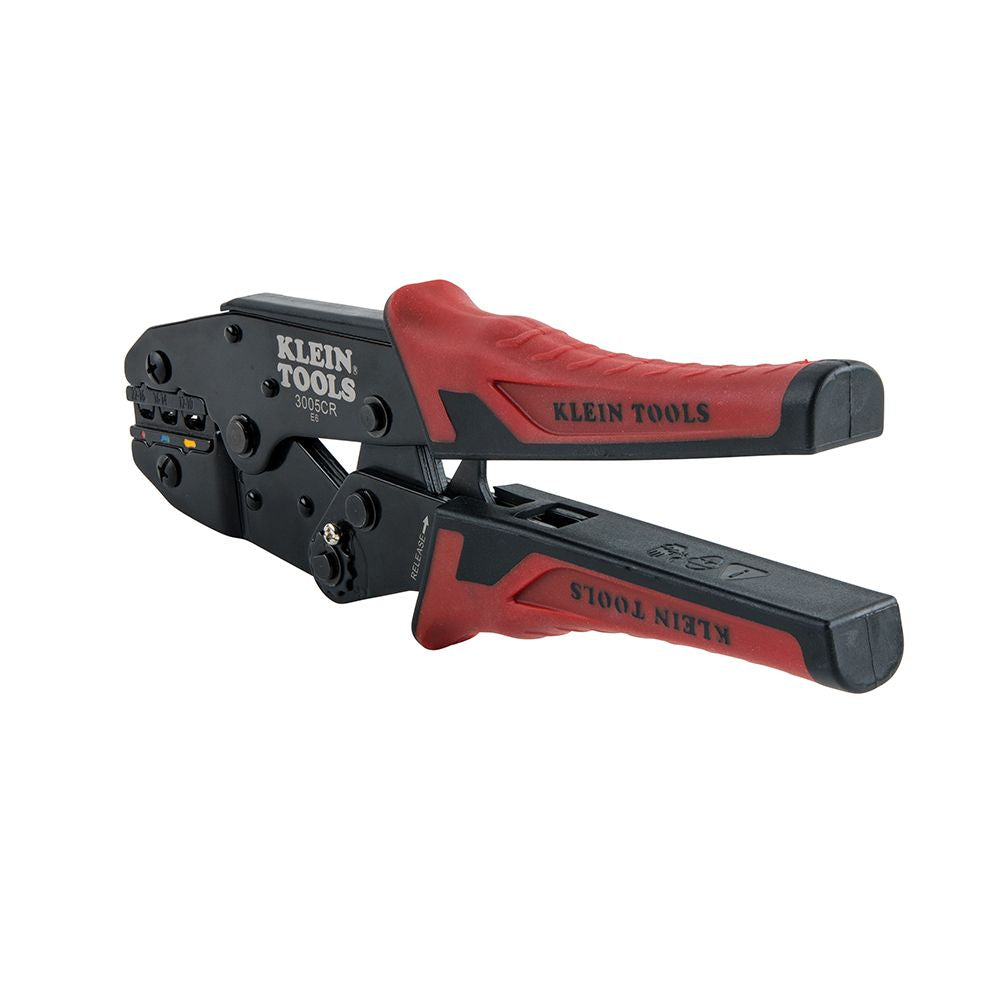

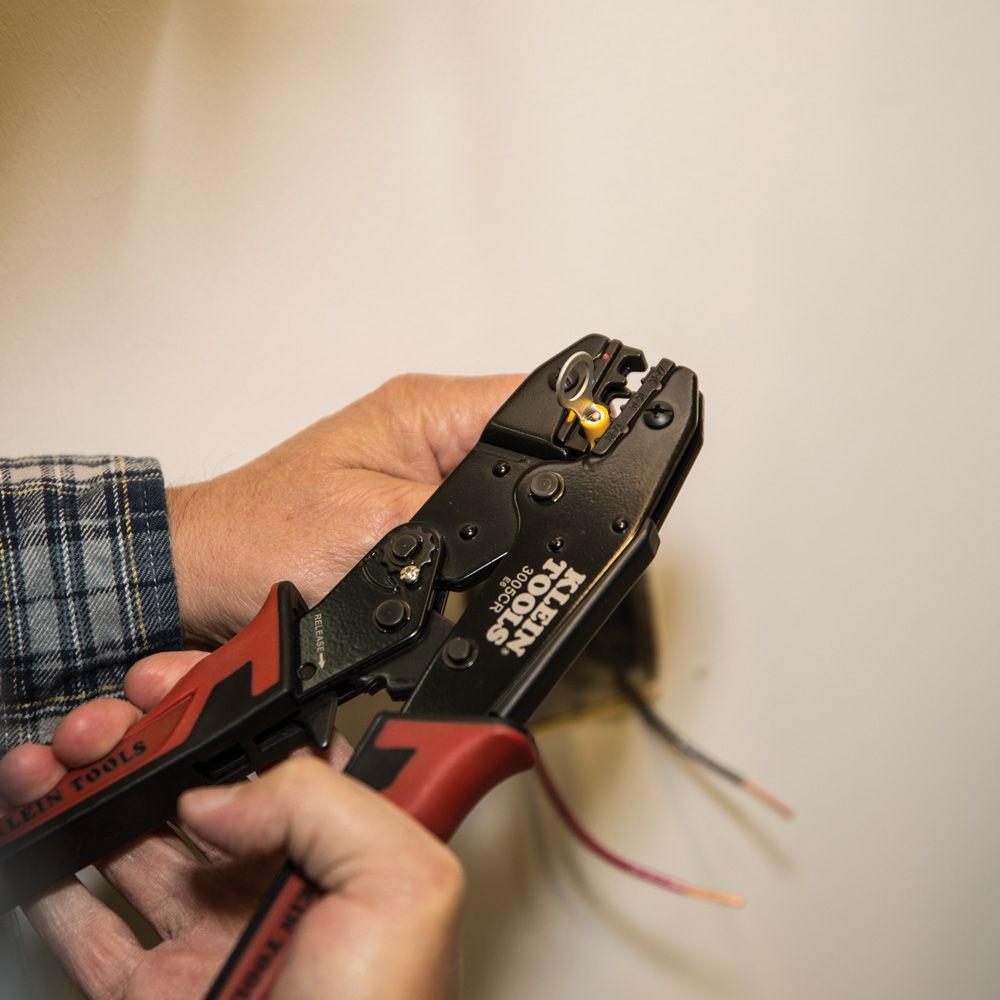

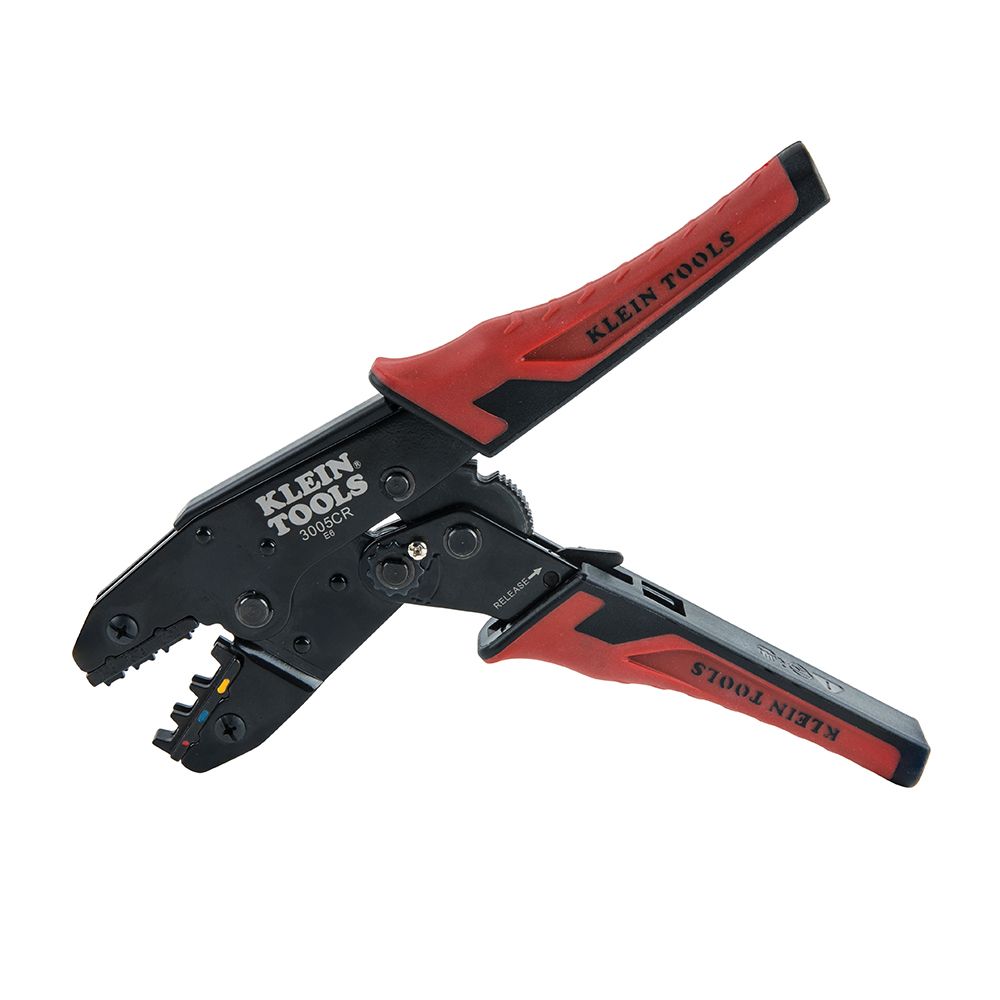

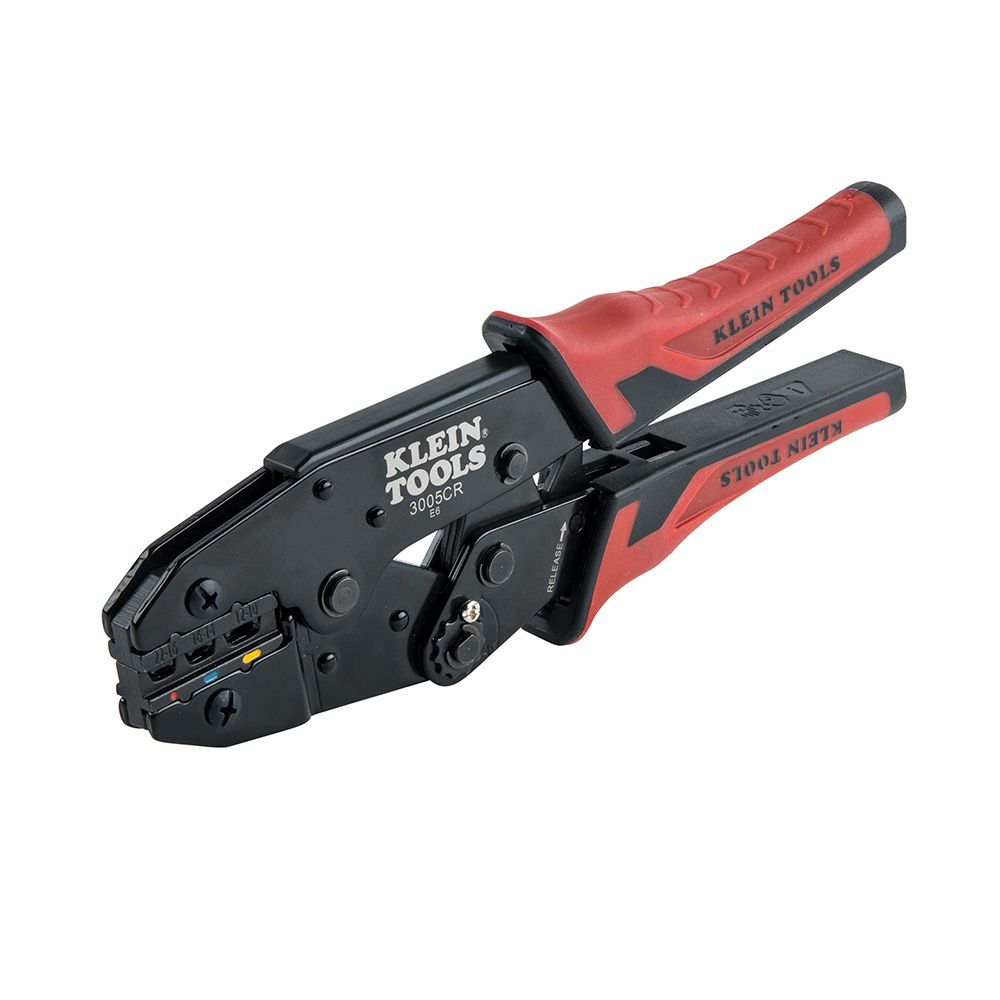

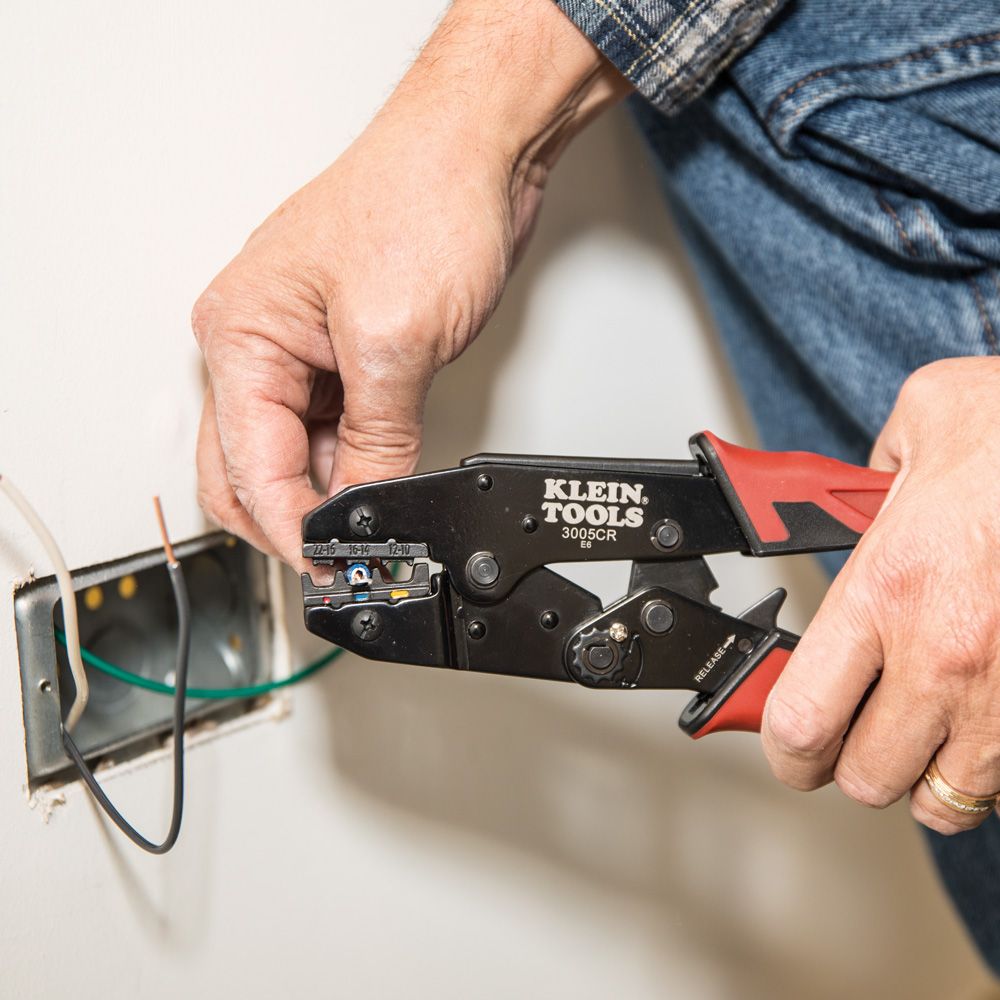

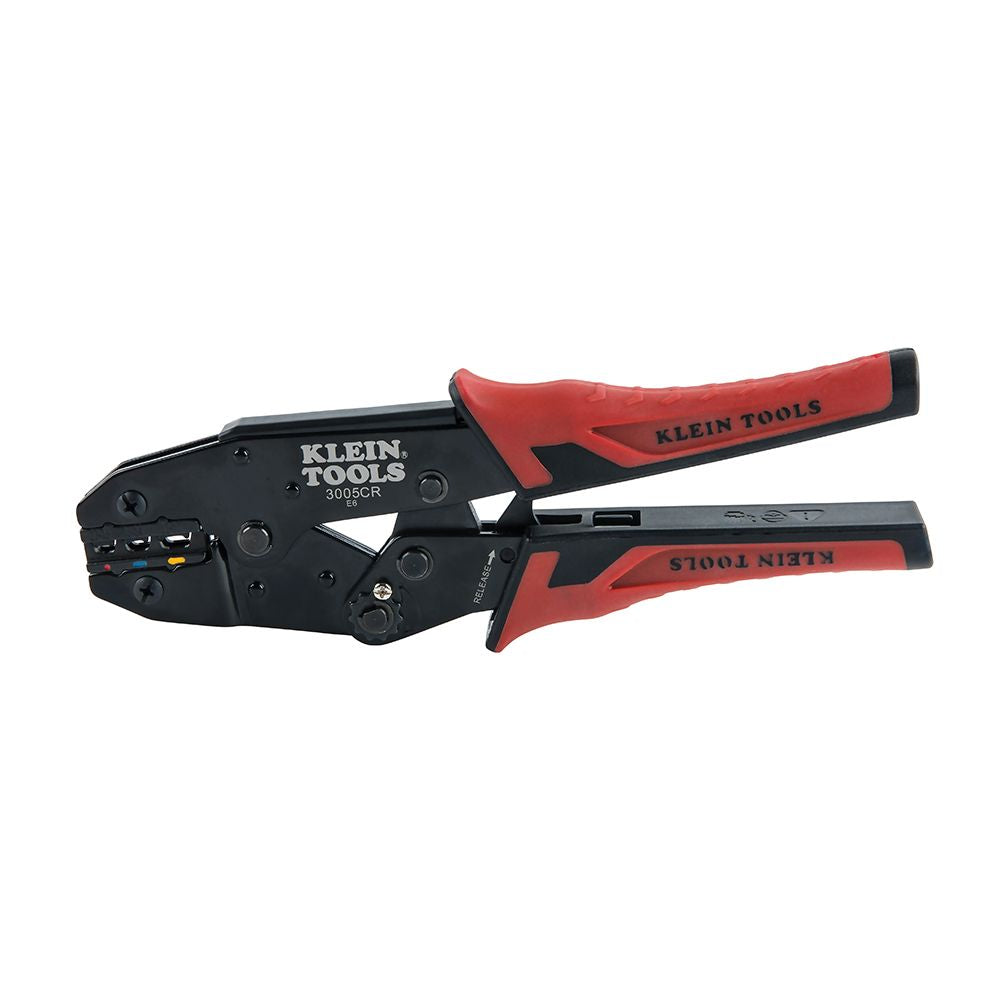

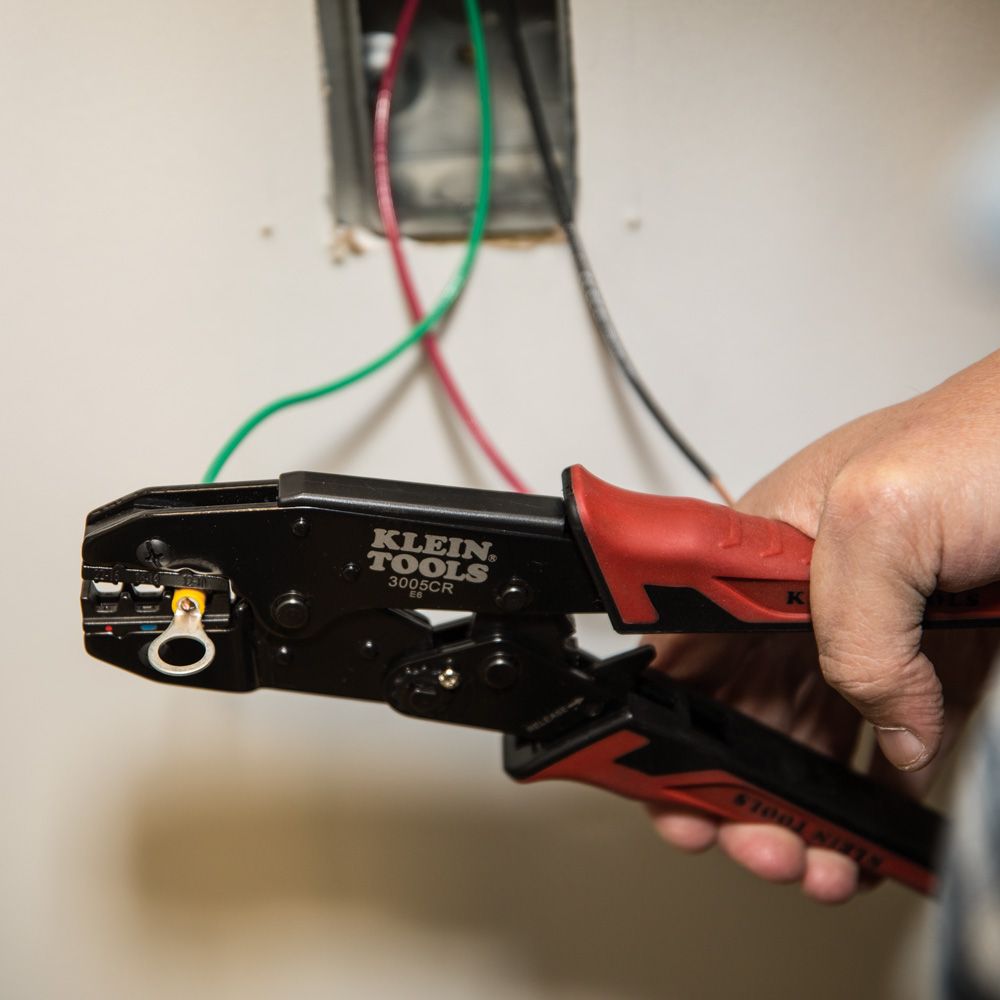

The Klein Tools 3005CR full-cycle Ratcheting Crimper crimps 10-22 AWG insulated wire terminals. This tool features three crimping cavities in one tool with color-coded wire markings for three size ranges of insulated terminals. Crimper design provides low effort to crimp while maintaining a high terminal pull-off force. Built-in ratchet ensures full-cycle crimping for a uniform crimp every time. Compound lever-action of narrow-span handles puts more crimping power into each squeeze. Comfort grips help reduce hand fatigue.
Features
Crimps insulated terminals onto 10-22 AWG stranded copper wire
Adjustable compound action design puts more crimping power into each squeeze

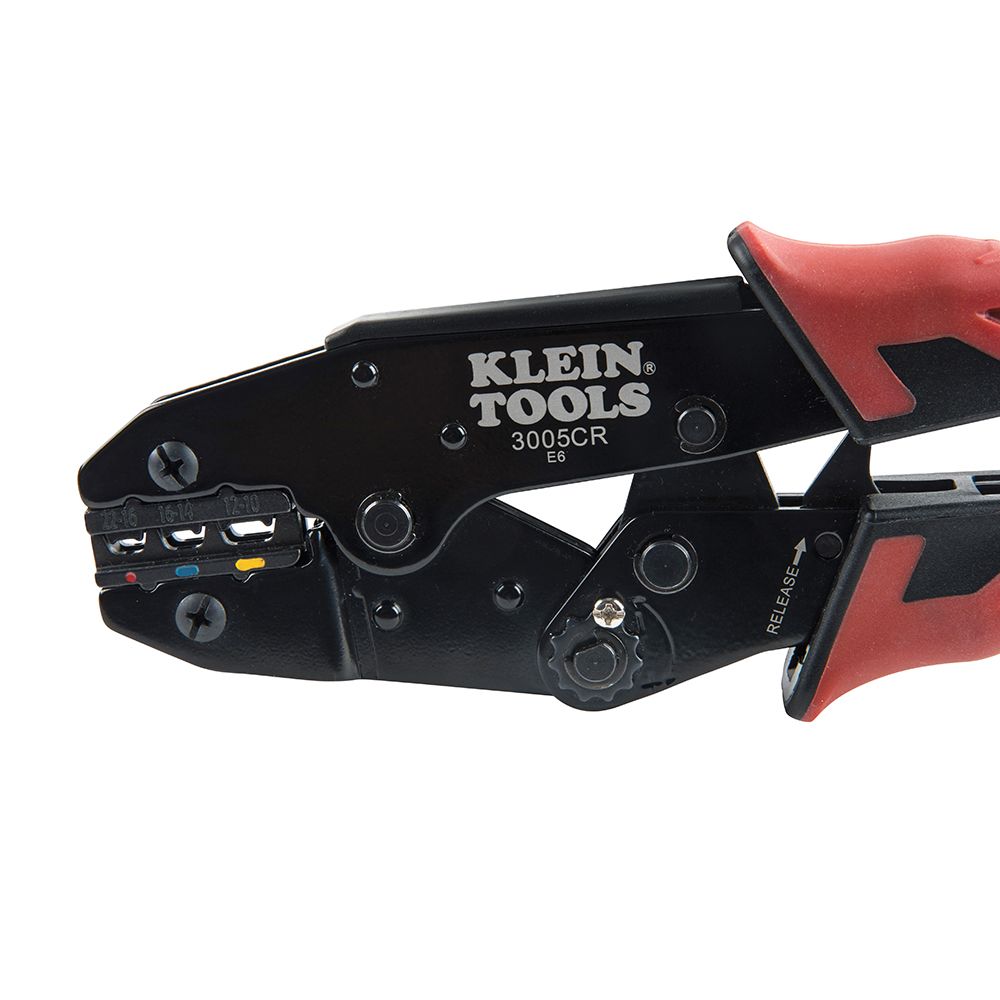

Three crimping cavities in one tool: 22–16 AWG (Red), 16–14 AWG (Blue) and 12–10 AWG (Yellow) terminals
Built-in ratchet ensures full-cycle crimping for a uniform crimp every time
Unique cavity design provides consistent crimp from either side of the tool
Dial adjusts the amount of force applied to the crimp
Dual-material molded grips provide added comfort
Specifications
Type: Ratcheting Crimper
Application: Wire Crimping
Special Features: 3 Crimping Cavities
Material: Steel
Handle Color: Red, Black
Handle Finish: Dual-Material
Cable Size: Front Cavity: 22-16 AWG Insulated Terminals; Mid Cavity: 16-14 AWG Insulated Terminals; Rear Cavity: 12-10 AWG Insulated Terminals
Connector Type: Insulated
