Klein 69149P Test Kit with Multimeter, Volt and Receptacle Tester
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.

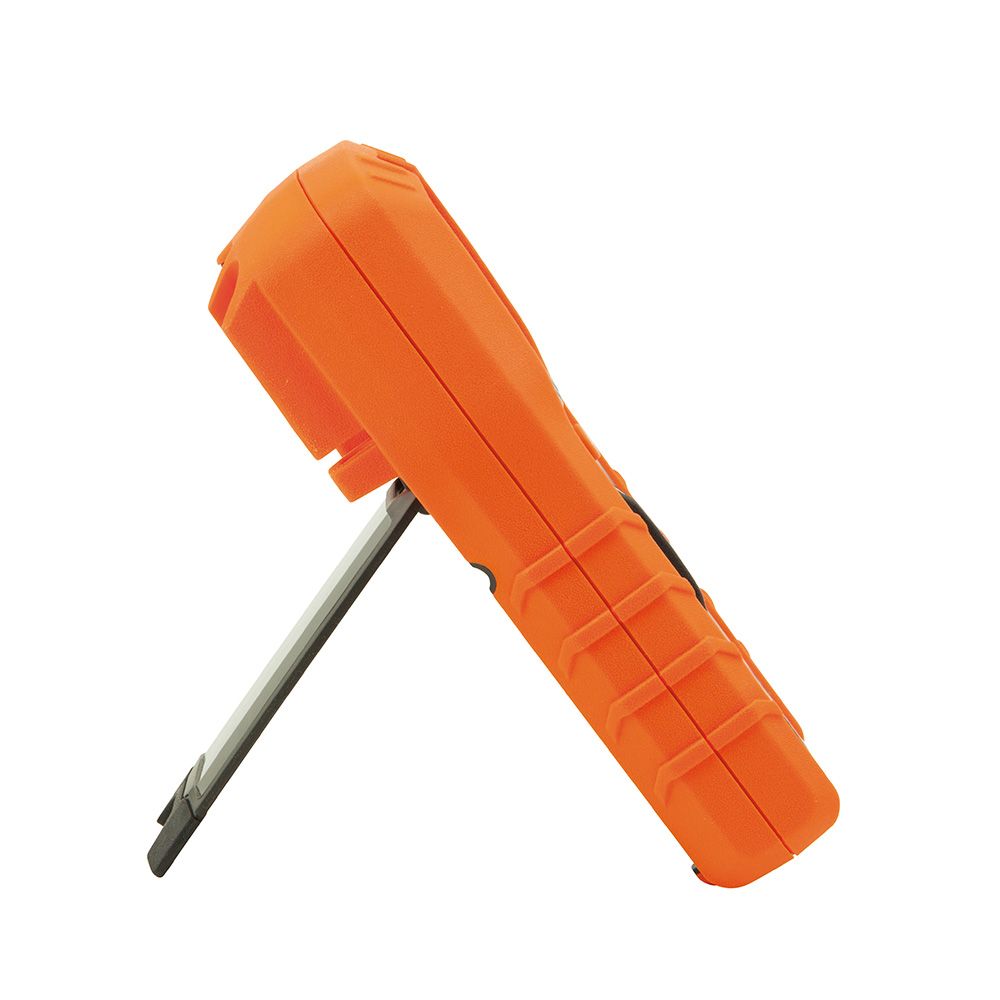

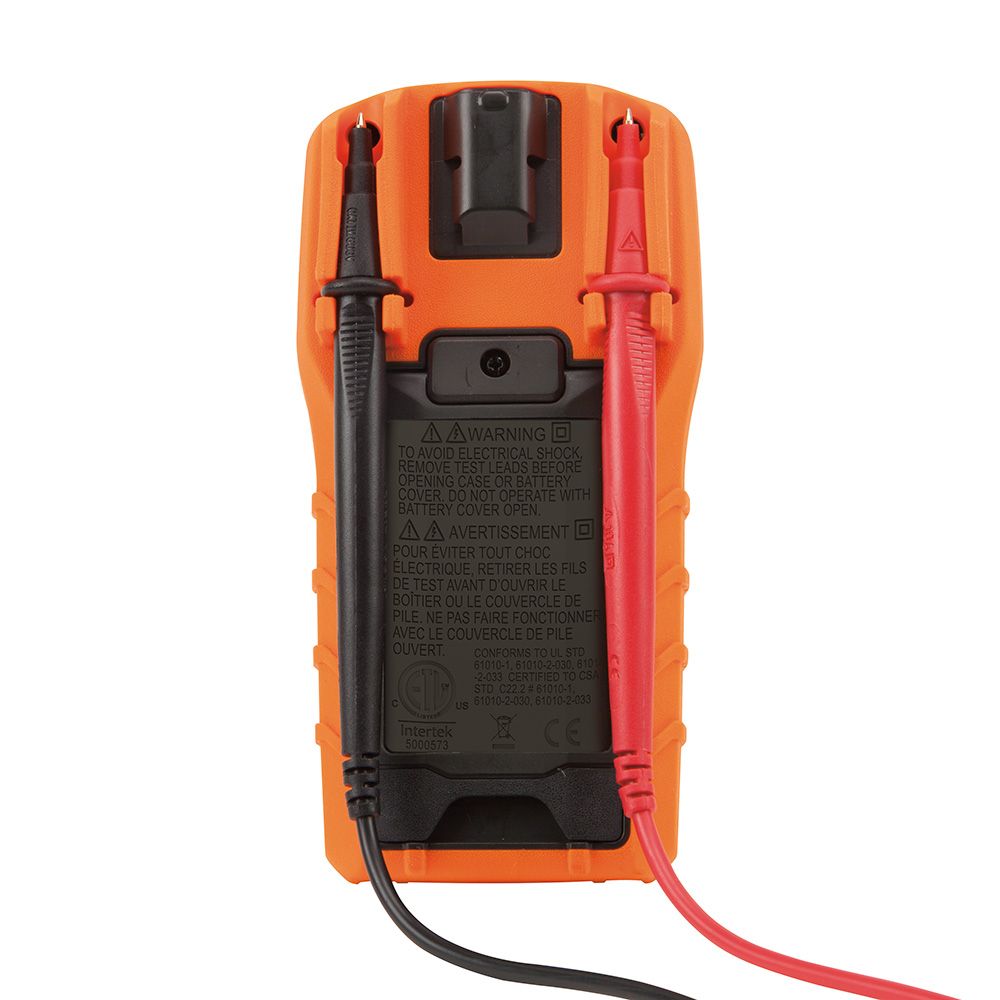

Klein Tools Multimeter Test Kit contains Cat. No. MM300 (Manual-Ranging Digital Multimeter), Cat. No. NCVT1P (Non-Contact Voltage Tester) and Cat. No. RT105 (Receptacle Tester). The MM300 measures DC current, AC/DC voltage and resistance. The NCVT1P automatically detects standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, outlets, and wires. The RT105 detects the most common wiring problems in standard receptacles.
Features
Multimeter measures up to 600V AC/DC voltage, 10A DC current and 2MOhms resistance

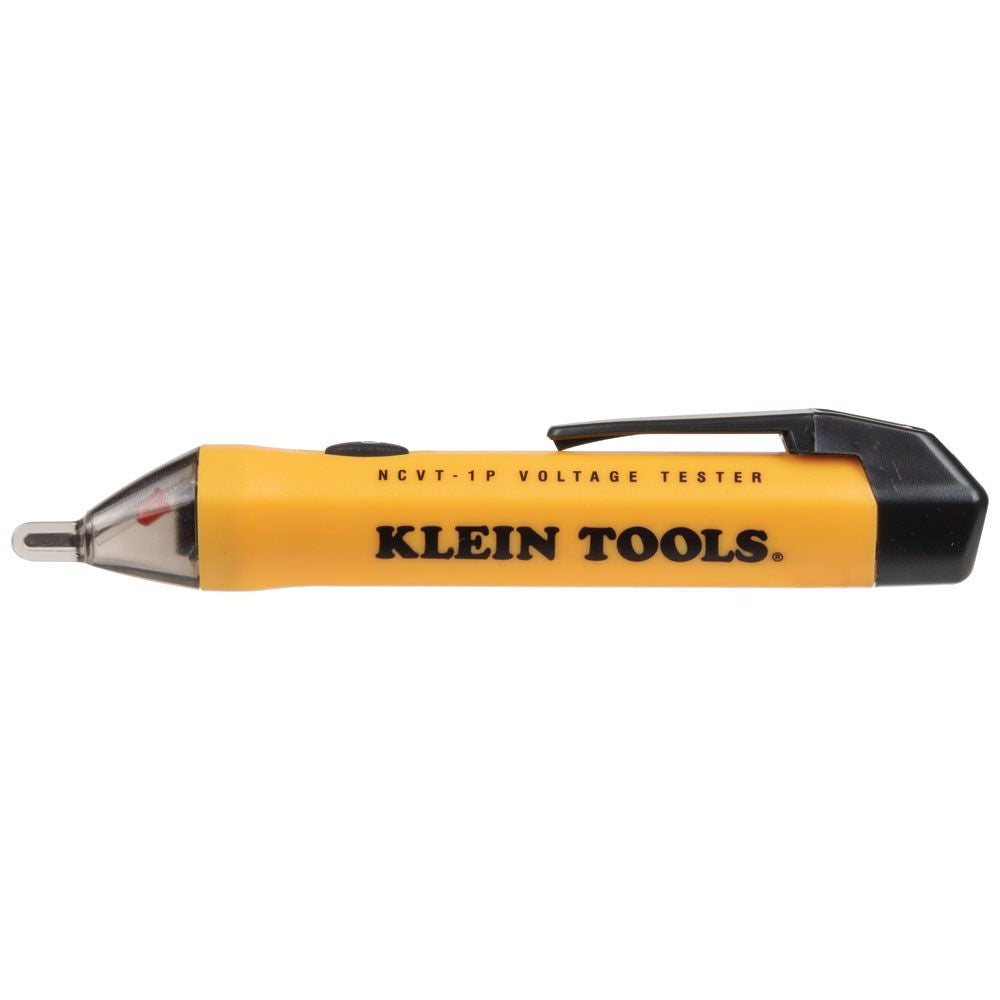

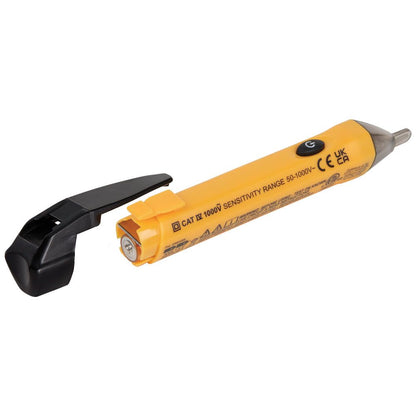

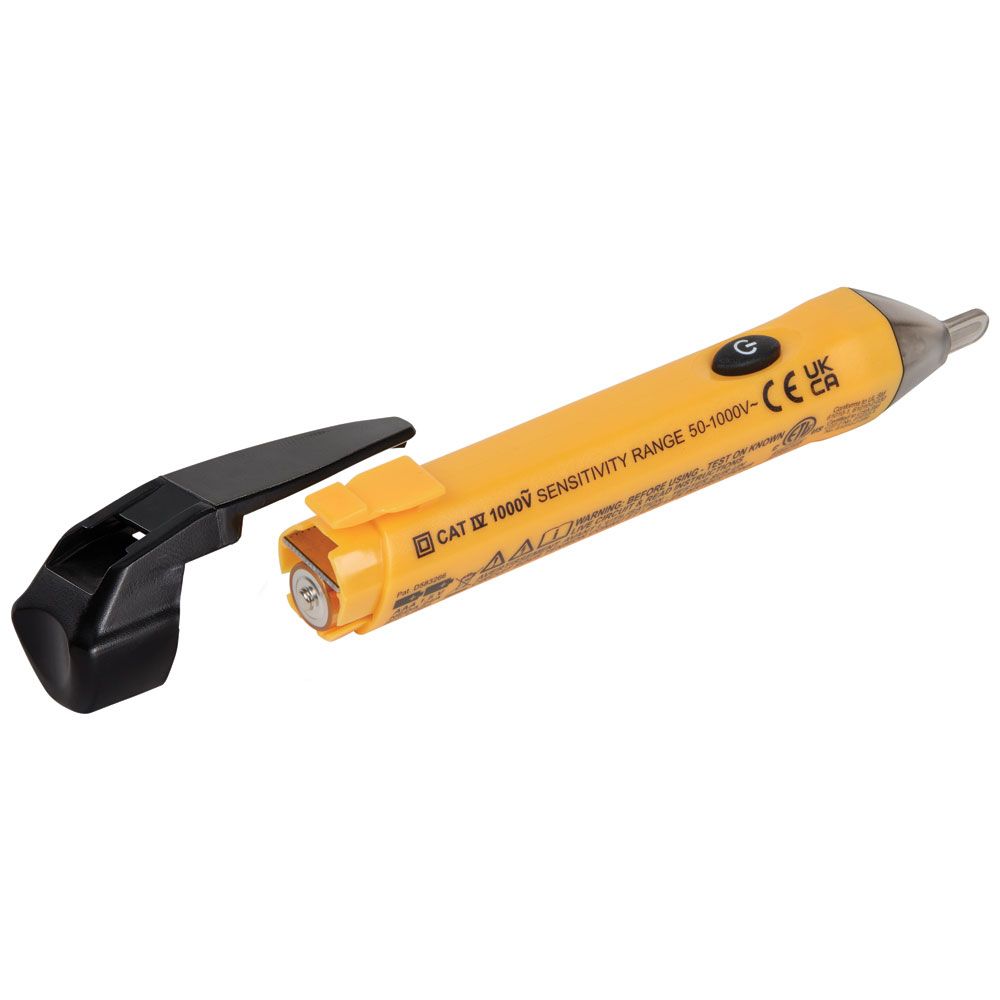

Non-Contact Voltage Tester Cat. No. NCVT1P has a bright green LED to indicate the tester is working; it changes to red and audible tones sound when voltage is detected
NCVT1P has a high intensity, bright red LED that illuminates and an audible tone when voltage is detected from 50 to 1000 VAC power operating range

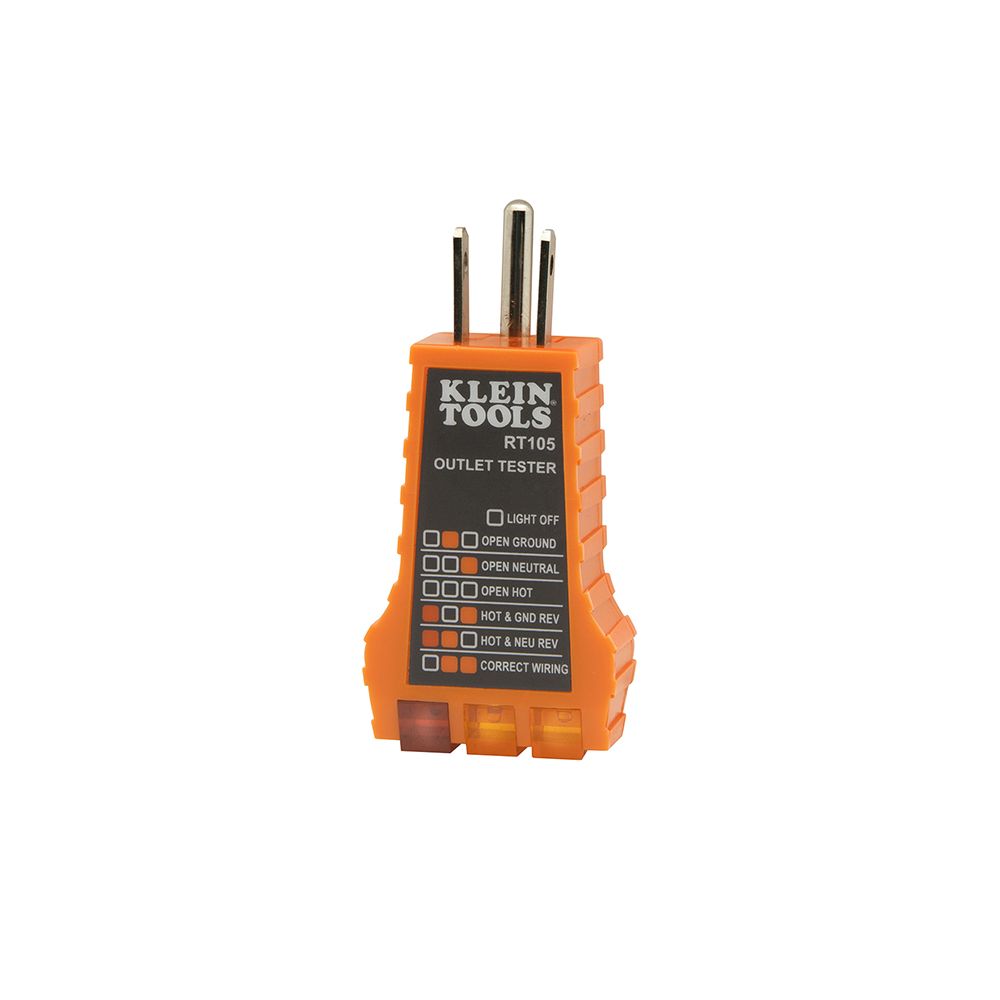

Receptacle tester detects wiring configurations and indicates correct wiring, and identifies common wiring faults
Identifies open ground, open hot, open neutral, hot/ground reversed; it does not indicate quality of ground, multiple hot wires, or a combination of defects
MM300 multimeter tests continuity with visual and audible continuity indicators
Test leads included for Cat. No. MM300; batteries included for Cat. Nos. NCVT1P and MM300
Specifications
Type: Electrical Test Kit
Application: Testing and Measuring Voltage
Special Features: MM300: Low Battery Indicator; NCVT-1P: Pocket Clip
Material: Polymer Body and Electronic Components
Batteries: MM300: 2 x AAA; NCVT-1P: 2 x AAA

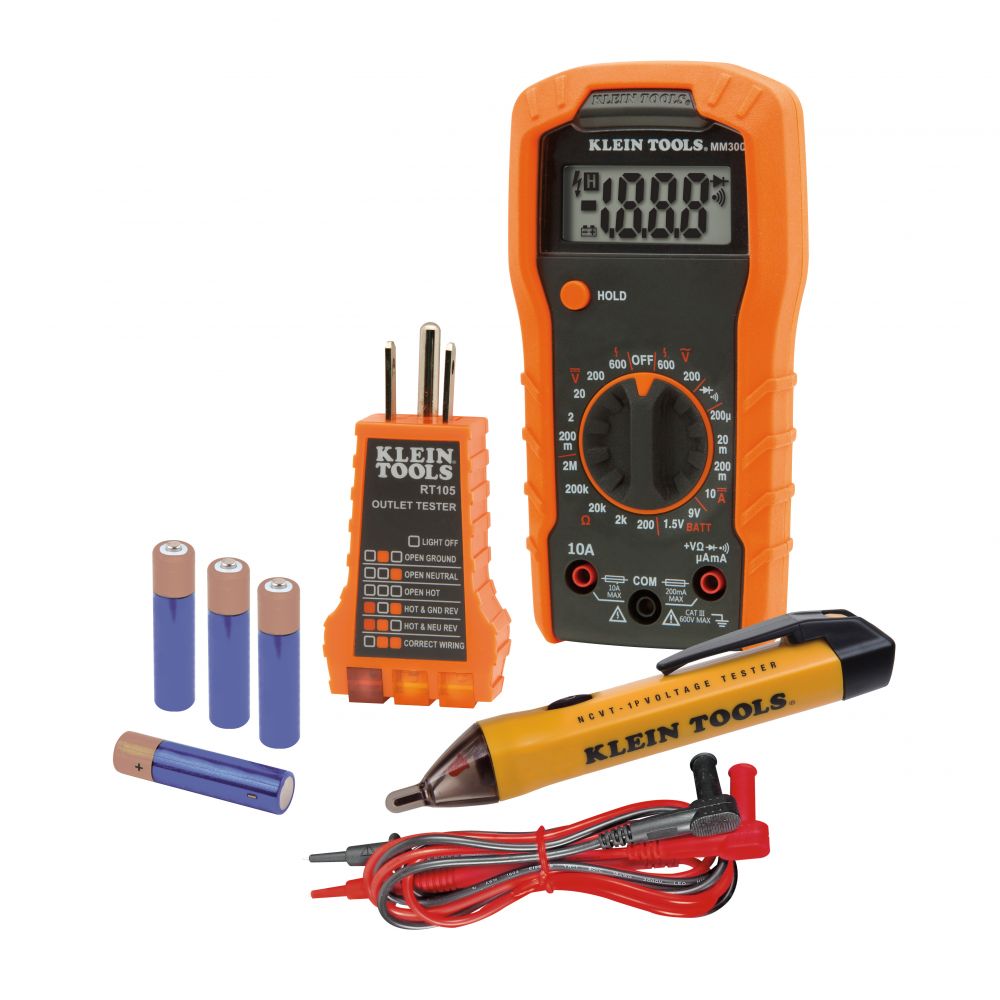

Included: MM300 Manual-Ranging Digital Multimeter with Right-angle Test Leads; NCVT1P Non-Contact Voltage Tester; RT105 Receptacle Tester with Test Leads; Instructions; and All Required Batteries
Standard: MM300: CAT III 600V; NCVT1P: CAT IV 1000V
