CL220

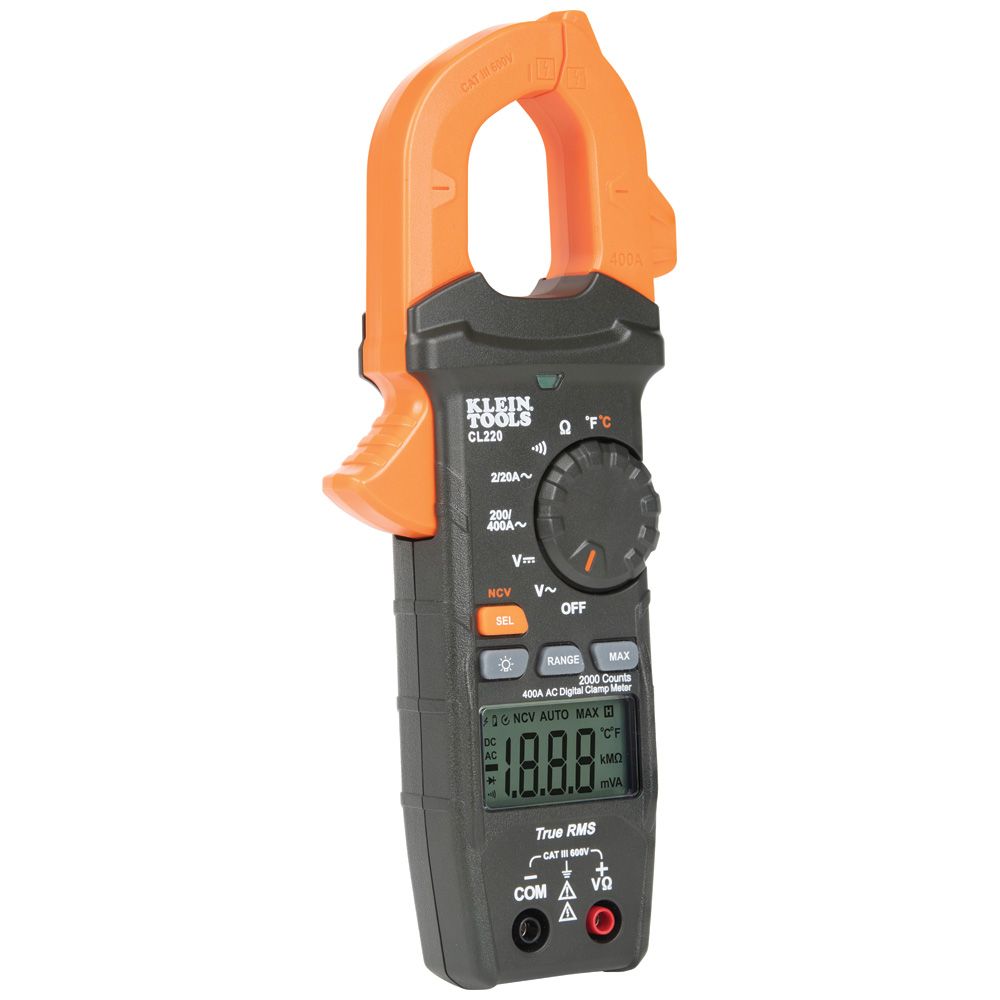

Klein Tools CL220 Digital Clamp Meter, AC Auto-Ranging 400 AMP
The CL220 measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple. The meter features automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy. Additionally, a backlit LCD makes viewing in low light easy.
Features
Measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple
Non-contact voltage tester integrated into the clamp jaw
Backlit LCD for ease of viewing in low light
Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
Measures temperature with a K-Type thermocouple probe
Auto-Range, Hold, Data Hold, and Max value
Auto-power off after 10 minutes to conserve battery life

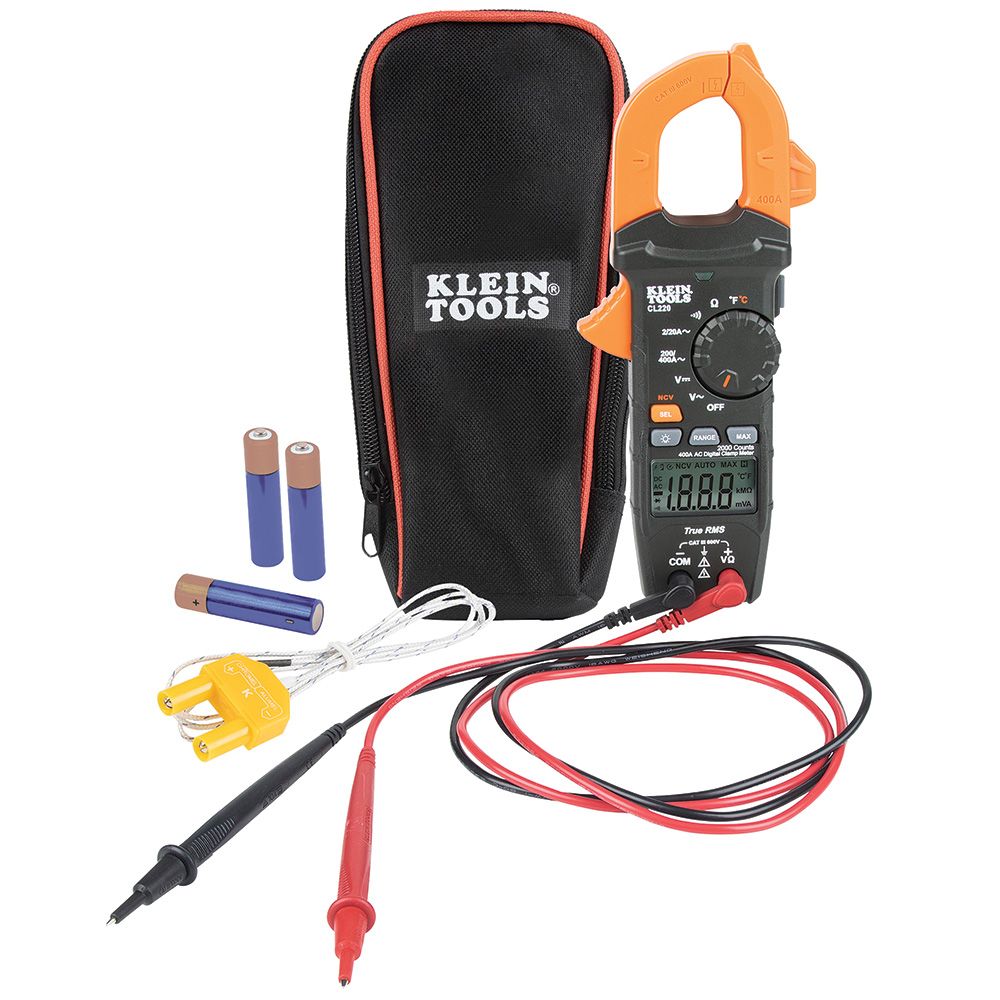

Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
Low battery indicator and easily accessible battery compartment
Built to withstand a 6.6-Foot (2 m) drop
CAT III 600V, Class 2, Double insulation safety rating
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Specifications
Type: Auto Ranging TRMS Clamp with Temperature
Application: Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, and Continuity via Test-leads, and Temperature with Thermocouple
Special Features: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; Added Temperature
Material: ABS/Electronics
Batteries: 3 x AAA
Auto-Power Off: Yes
Jaw Size: 1.6" (4.1 cm)
Drop Protection: 6.6' (2 m)
Display: 2000 Count Backlit LCD
Functions: TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature
Voltage: 600 V AC/DC
Current: 400 A AC
Ohms (Resistance): 20 MΩ
AC Voltage: 600 V
DC Voltage: 600 V
DC Polarity Indicator: Yes
Temperature Range: -40° - 1832°F (-40° - 1000°C)
Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
Included: Carrying Case, Instructions, Test Leads, Thermocouple, and Batteries
