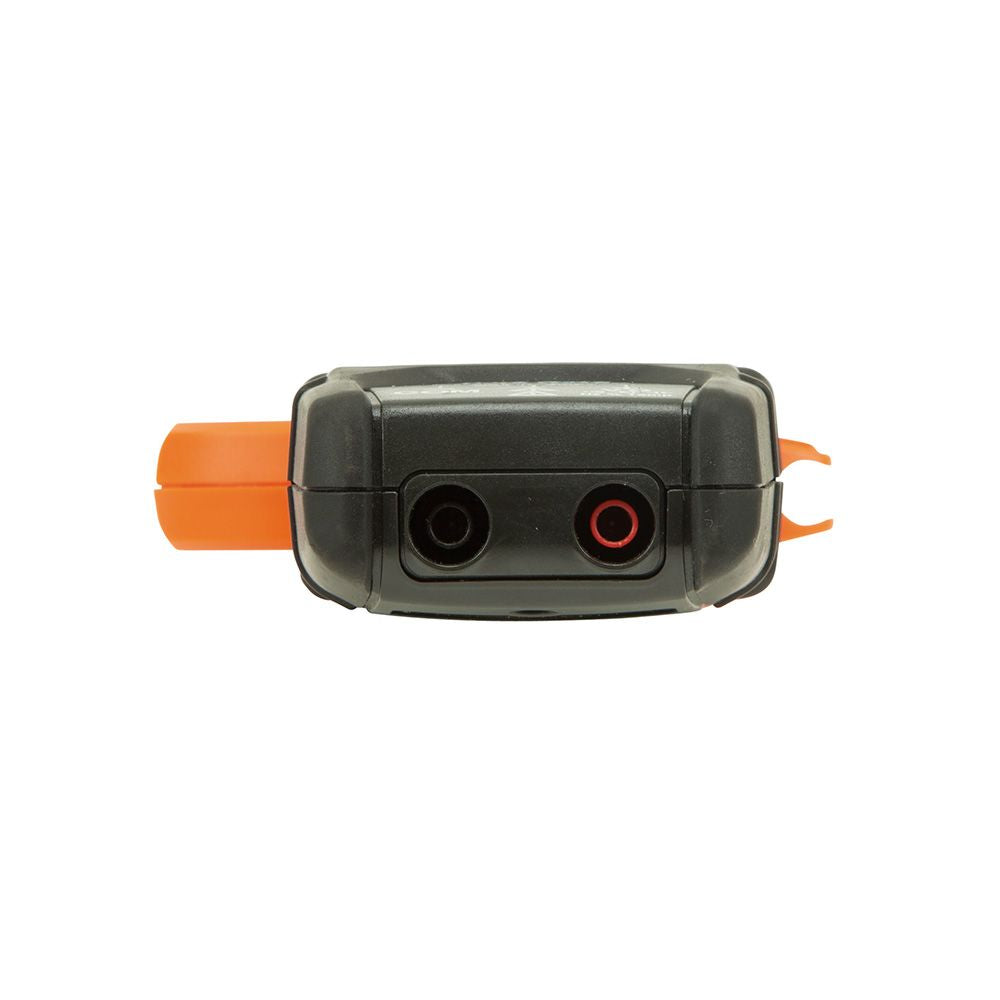

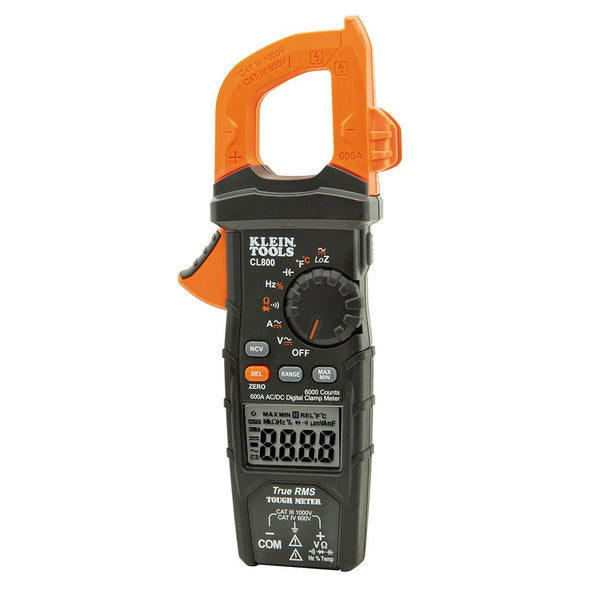

Klein Tools CL800 Auto-Ranging TRMS AC/DC Digital Clamp Meter
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
Klein Tools CL800 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools’ Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.
Features
Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy
Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
Thermocouple probe measures temperature
Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
Built to withstand a 6.6-Foot (2m) drop
Low battery indicator and easily accessible battery compartment
Operating temp: 32-degree F to 104-degree F (0-degree C to 40-degree C)
Operating altitude to 6562-Foot (2000m)
Includes carrying pouch, test leads, thermocouple with adapter and batteries
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Specifications
Application: Measures Current
Special Features: Features Low Battery Indicator and Auto Shut Off
Batteries: 2 x AAA
Jaw Size: 1.38" (3.5 cm)
Drop Protection: 6.6' (2 m)
Display: 6000 Count LCD
Functions: Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes. Thermocouple probe measures temperature.
Voltage: 1000V AC; 1000V DC
Frequency: 1Hz - 500 KHz
Current: 600A AC; 600A DC
Capacitance: 6000µF
Ohms (Resistance): 60MO
Temperature Range: -14° - 1000°F (-26° - 538°C)
Ingress Protection: IP40
Standard: CAT IV 600V; CE Certified
Included: Carrying Case, 41'' (1041.4 mm) Test Leads, Thermocouple with Adapter, and Batteries
