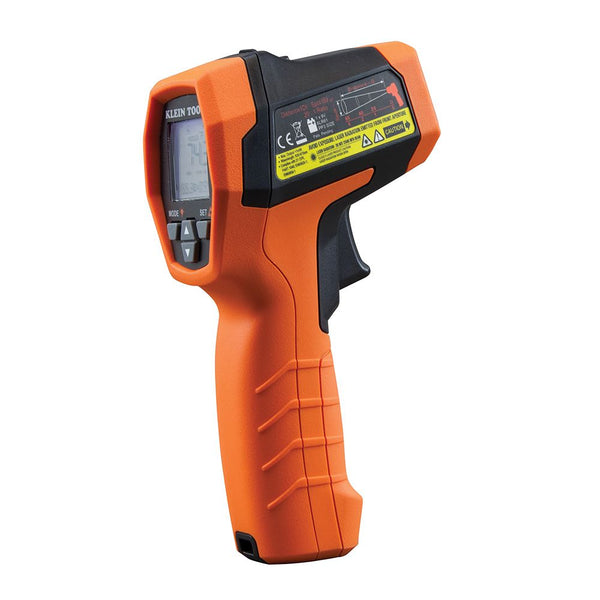

Klein Tools IR10 20:1 Dual-Laser Infrared Thermometer
$124.99
Out of Stock
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
Klein Tools IR10 is a professional dual targeting laser infrared (IR) thermometer. It offers a wide measurement range, a tight 20:1 distance-to-spot ratio, dual targeting lasers, and several calculation modes to facilitate different temperature measurement applications. In addition to measuring temperature using IR emission, it can also measure temperature using a standard K-type probe.
Features
Incorporates surface temperature measurement capability using IR emission and can also measure bulk temperatures of air, gas, or liquids using a standard K-Type probe
Dual targeting lasers offer more accurate determination of the area being tested
Optical Resolution (Distance-to-Spot) is 20:1
Measurement range for both IR and K-Type probe -40 to 1200-Degree Fahrenheit (-40 to 650-Degree Celsius)
Not a medical device; thermometer is NOT intended for use on people or animals.
Adjustable emissivity from 0.1-1.0 delivers flexibility to address multiple applications
Bright backlit display for working in low ambient lighting conditions
Statistical parameters for measurement event - max/min/avg/diff
User definable high/low limits with audible and visual alarms when limits are breached
Uses one 9-volt alkaline battery, with battery life expectancy at 8 hours of continuous use with laser and backlight on
Includes custom pouch, K-Type probe and battery
Soft-touch, over-mold housing; built to withstand a 9.9-Foot (3 m) drop
"Auto Power-Off" conserves and extends battery life
IP54 ingress protections for dust and water resistance
U.S. patent D791,624
Specifications
Type: Dual-Laser Infrared Thermometer
Application: Temperature Measurements Using IR Emission or K-Type Probe
Special Features: Dual Targeting Lasers, 20:1 Distance-to-Spot Ratio; Hi/Low Limits with Simultaneous Audible and Visual Alarms When Limits are Breached; Bright Backlit Display; Works with K-Type Probe Also
Audible Alert: Y
Material: Plastic Housing, Electronic Compenents
Batteries: 1 x 9V
Distance to Spot: 20:1
Accuracy: IR: 32Β° F and Above: +/- 3Β° F or +/- 1.5% (Whichever is Greater); Less Than 32Β° F: +/- (3.6Β° F + 0.2Β° F per Degree); K-Type: 32Β° F and Above: +/- 2Β° F or +/-% (Whichever is Greater); Above 32Β° F: +/- 3Β° or +/1% (Whichever is Greater)
Calculations: Min/Max/Difference/Average
Display: Digital Backlit
Display Resolution: 0.1F (0.1 C)
Response Time: <150ms
Auto Calibration: N
Degree Format: F or C
Range: -40Β° to 1200Β° F (-40Β° to 650Β° C)
Standard: EN 61326-1:2013, EN 608251:2014, 21 CFR 1040.10 and 1040.11, Class II Laser, CE
Drop Protection: 3 m
Ingress Protection: IP54
Included: Custom Pouch, K-Type Probe and Battery
