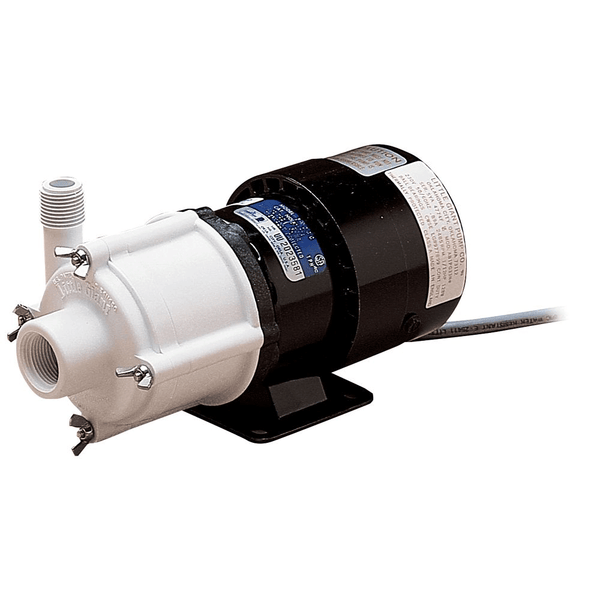

Little Giant 3-MD-SC 1/12 HP Magnetic Drive Pump, 581503
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The Little Giant 581503 is a 750 GPH 115V Magnetic Drive Pump with 6′ Power Cord for semi-corrosive chemicals and solutions. The MD-SC Series features leak proof, seal-less magnetic drives and are designed for in-line, non-submersed use. It has 115 Vac 50/60 Hz Single Phase 6 Foot Cord and 1/12 Horse Power, 750 Gallon Per Hour At 1 Foot Rise 21.9 Foot Max Height, Fluid temperature is 150F and Ambient air temperature is 77F.
Magnetically driven pumps for semi-corrosive chemicals and solutions. These pumps feature polypropylene, ceramic and Buna-N parts. Thermally protected open fan-cooled motor with sleeve bearings. 6 ft. power cord and 3-prong molded plug.
The Little Giant MD-SC series features leak-proof, seal-less magnetic drives and are designed for in-line, non submersible use. Volute, magnet housing and impeller are glass-filled polypropylene for excellent chemical resistance. Ceramic shaft and thrust washers are 99.5% pure alumina for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump.
Applications
Circulation of moderately corrosive acids, alkalis, solvents, brine, plating solutions, and other mildly corrosive chemicals and solutions that are compatible with the pump's material of construction
Features:
Specific Gravity: Up to 1.1'
Ambient Air Temperature: Up to 77F (25C).
Fluid Temperature: Up to 150F (66C).
Ratings
Horsepower: 1/12 hp
Frequency: 50/60 Hz
Amps - Full Load: 2.4 A
Full Load Watts: 190 W
Volts: 115 VAC
Cord Length: 6 ft / 1.83 m
Max Flow Rate: 60 Hz 12.5 gpm / 750 gph / 2839 Lph / 47.32 Lpm / 2.84 m³/h
Flow Rate At 1ft: 12.5 gpm / 750 gph / 2839 Lph / 47.32 Lpm / 2.84 m³/h
Shut-Off: 21.9 ft / 6.68 m
Minimum Head: 60Hz 1 ft / 0.3 m
Shut Off Height: 60Hz 21.9 ft / 6.68 m
Max PSIG: 60Hz 9.5 PSI
Switch Type: Manual
Liquid
Max Fluid Temperature: 150 °F
Materials of Construction
Pump Base Material: Plastic
Pump Body Material: Plastic
Discharge Head Material: Thermoplastic
Impeller Material: GF Polypropylene
Check Valve: No
Installation
Discharge Thread: MNPT
Discharge Type Threaded: MNPT
Discharge: 0.5 "
Suction Type: Threaded - FNPT
Product Width: 3.91 " / 9.93 cm
Product Height: 4.89 " / 12.42 cm
Product Length: 9.82 " / 24.94 cm
Product Weight: 7.5 lb / 3.4 kg
Product Weight w/ Pack: 8.5 lb / 3.86 kg
