Little Giant 502103 2E-N Oil Filled, Direct Drive Submersible Pump
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.

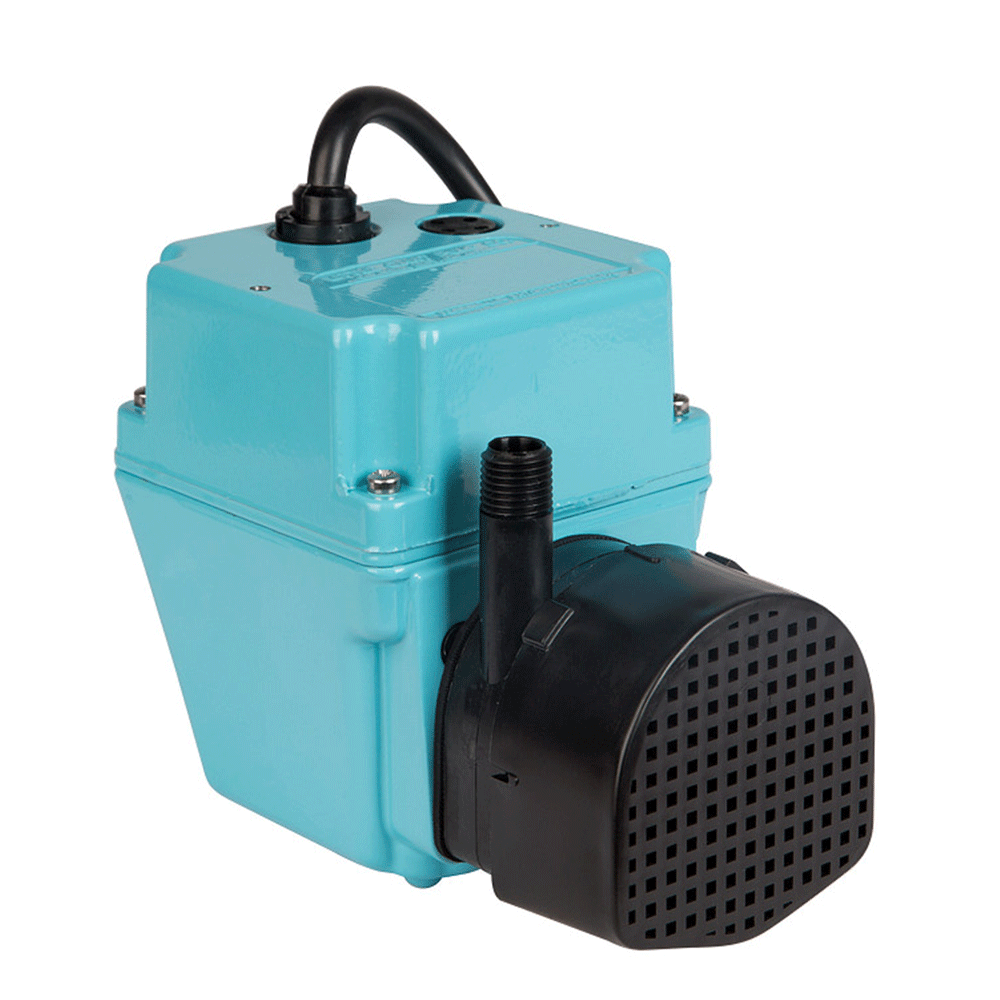

The Little Giant 2E-N is a small submersible oil-filled pump with epoxy coated cast aluminum housing. For commercial, industrial and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated. This compact 300 GPH pump features a 1/4" MNPT discharge, 11.8' shut-off head capability, and screened inlet.
Features
Epoxy coated die-cast aluminum housing
Oil-filled motor
11.8' maximum lift
100 watts
1/4" MNPT discharge
Thermal overload protection
For submersible use only
Electrical
Horsepower: 1/40 hp
Frequency: 60 Hz
Amps - Full Load: 1.7 A
Full Load Watts: 100 W
Volts: 115 VAC
Cord Length: 6 ft / 1.83 m
Operation
Max Flow Rate: 60 Hz 5 gpm / 300 gph / 1136 Lph / 18.93 Lpm / 1.14 m³/h
Flow Rate: At 1ft 5 gpm / 300 gph / 1136 Lph / 18.93 Lpm / 1.14 m³/h
Shut-Off: 11.8 ft / 3.6 m
Shut Off Height: 60Hz 11.8 ft / 3.6 m
Max PSIG: 60Hz 5.1 PSI
Max Fluid Temperature: 120°F
Installation
Discharge Type MNPT
Discharge: 0.5"
Suction Type: Screened
Product Weight: 4.47 lb / 2.03 kg
Product Width: 3.5" / 8.89 cm
Product Height: 4.64" / 11.79 cm
Product Length: 5.55" / 14.1 cm
Pump Length: 5.6" / 14.22 cm
Carton Width: 6.94" / 17.62 cm
Carton Height: 4.56" / 11.59 cm
Carton Length: 6.94" / 17.62 cm
Materials of Construction
Pump Volute Material: Nylon
Impeller Material: Nylon
Intake Screen Material: Polypropylene
Seal Material: Nitrile Rubber
