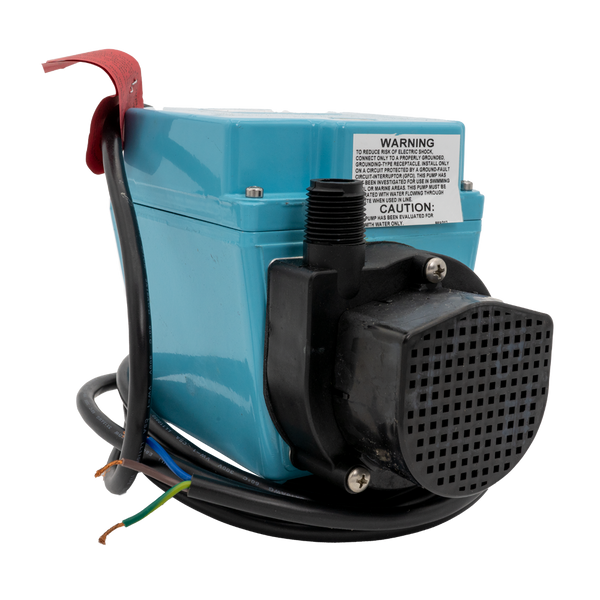

Little Giant 503216 Dual-Purpose, Oil-Filled Compact Submersible Pump
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The Little Giant 503216 is a dual purpose oil-filled pump that may be used totally submersed or in-line (fed with pipe or hose). For commercial, industrial and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated. This compact 600 GPH pump features a 1/2" MNPT discharge and 21' shut-off head capability.
Features
For submersed or in-line use
Epoxy coated die-cast aluminum housing
Oil-filled motor
21' maximum lift
200 watts
1/2" MNPT discharge
Thermal overload protection
Construction
Motor — 1/15 HP oil-filled
Intermittent Liquid Temp. up to — 120°F
Intake — 1/2" FNPT
Discharge — 1/2" MNPT
Housing — Epoxy coated cast aluminum
Cover — Epoxy coated cast aluminum
Volute — Nylon
Impeller — Nylon
Shaft Seal — Viton®
Screen — Polypropylene
