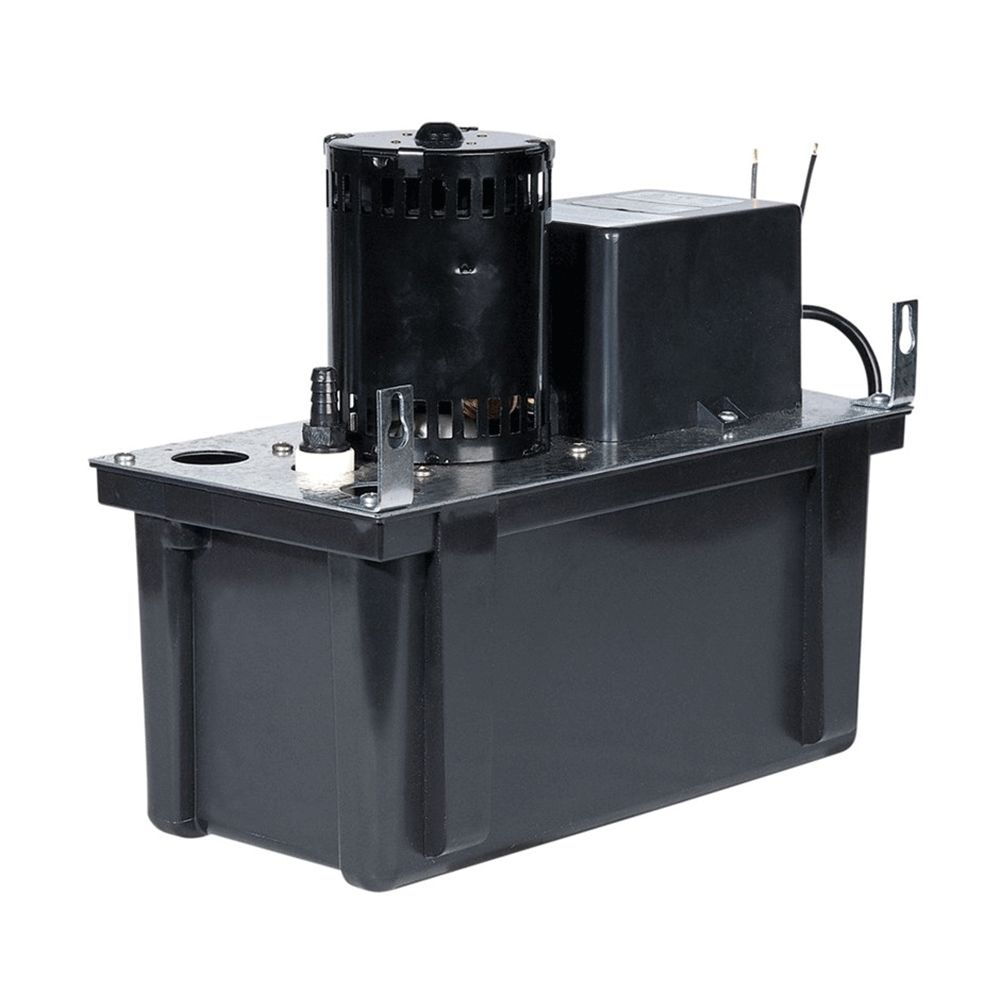

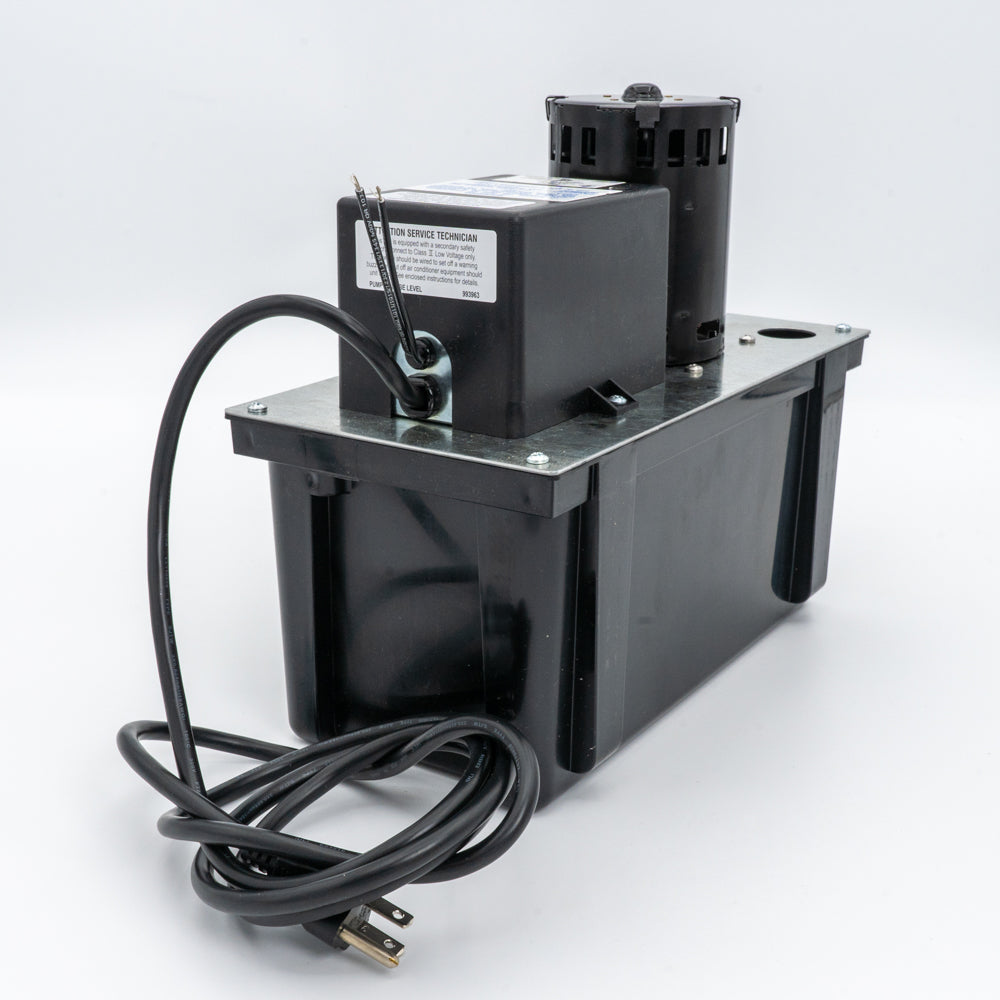

Little Giant 553201 VCL-24ULS Automatic Condensate Removal Pump
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The Little Giant VCL-24ULS is a 1/18 horsepower condensate removal pump that includes a safety switch and 1 gallon ABS plastic tank. The high-water level safety switch can be configured to operate as an external alarm or connected to shut off the system.
Features
1 gallon collection tank
Vertical centrifugal pump design
1/18 hp, fan cooled, concentric motor
Stainless steel motor shaft
Automatic start and stop operation
Includes float (solid polymer) activated switch for automatic high-level water detection (overflow detection switch)
Overflow detection switch: dual function NO and NC operation (set to NO from factory for equipment shut down connection)
Overflow detection switch includes two 5" switch lead wires
Two 1-1/8" diameter inlet openings
Thermally protected, fan cooled motor
Maximum water temperature: 120°F
6 ft, 3-conductor cable with grounded 3-prong plug
