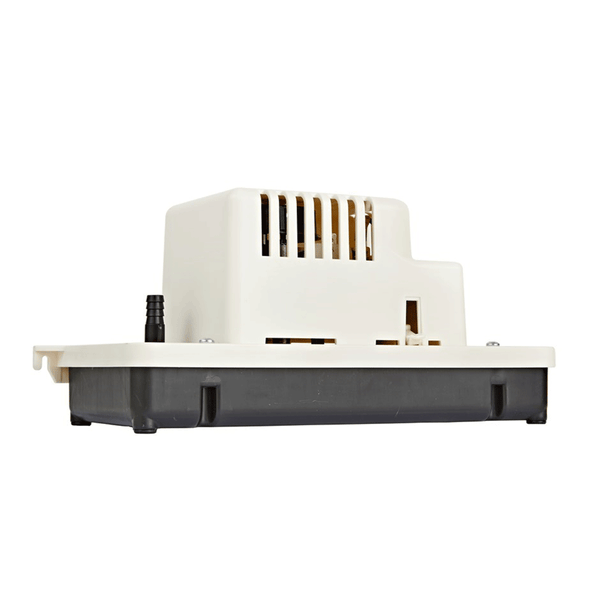

Little Giant VCCA-20ULS Automatic Condensate Removal Pump, 554201101
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The Little Giant VCCA-20ULS condensate removal pump is designed for the automatic collection and removal of condensate from air conditioning, refrigeration, and dehumification equipment when gravity drainage is not possible or practical. The VCC-20 is also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.
Features
Low profile for limited spaces
Vertical centrifugal pump design
Stainless steel motor shaft
Automatic start, stop and high-level water detection (overflow detection switch)
3/8" O.D. barbed discharge adapter with built-in check valve (installed on the pump)
1/4" O.D. barbed discharge adapter (included in the box)
Two inlet openings 1-1/8"
Overflow detection float activated switch
Two 5" overflow detection switch lead wires
Thermally protected, fan cooled motor
Intermittent liquid temperature up to 120 °F
6 ft, 3-conductor cable with grounded 3-prong plug
