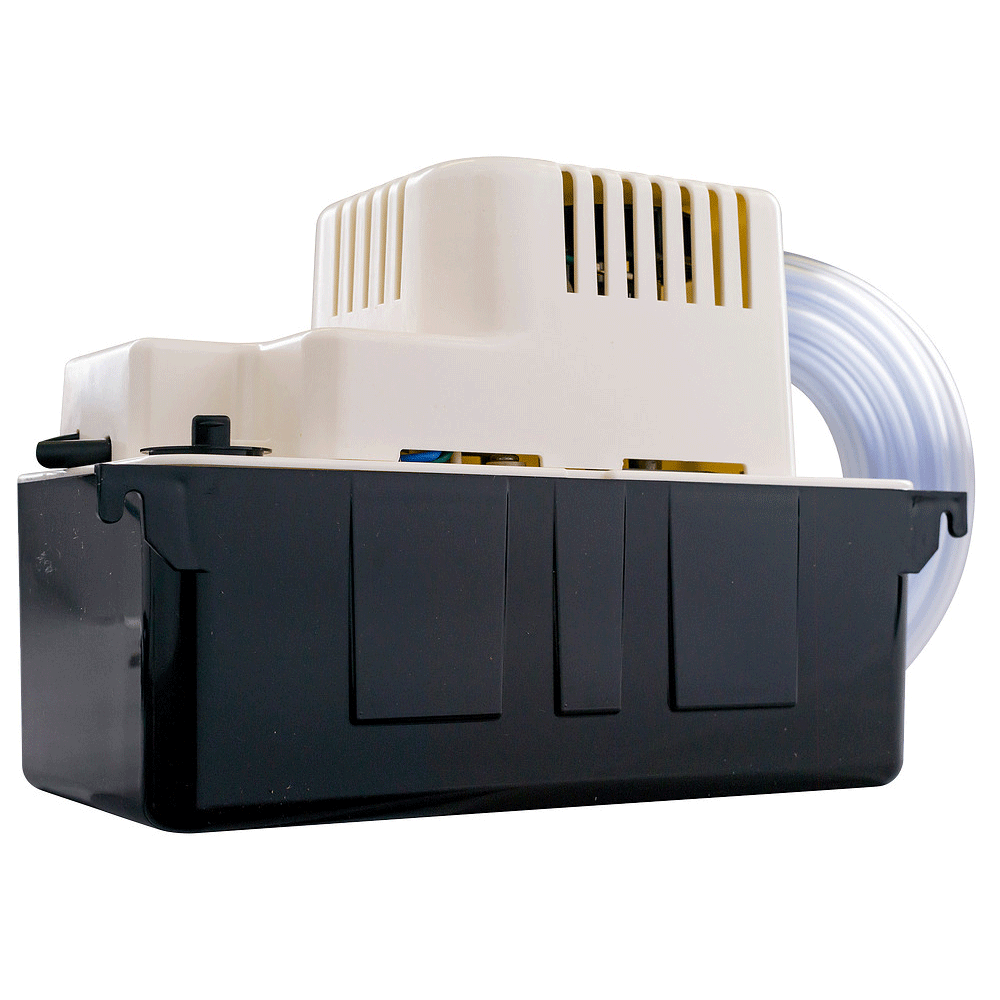

Little Giant - VCMA-15ULST - 65GPH Automatic Condensate Removal Pump with Safety Switch and Tubing
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The Little Giant VCMA-15ULST is ideal for automatic collection and removal of condensate from air conditioning, refrigeration and de-humidification equipment when gravity drainage is not possible or practical. Designed for automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible or practical. Also, suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.
Features
1/2-gallon collection tank
Vertical centrifugal pump design
Stainless steel motor shaft
Automatic start and stop operation
Some models equipped with float (solid polymer) activated switch for automatic high-level water detection (overflow detection switch)
For models with overflow detection switch: dual function NO and NC operation (set to NO from factory for equipment shut down connection)
Models equipped with overflow detection switch include two 5" switch lead wires
3/8" O.D. barbed discharge adapter with built-in check valve
Three 1-1/8" diameter inlet openings (two fitted with removable cap plug)
Thermally protected, fan cooled motor
Built-in wall mount tabs on tank
Removable pump float locking tab for safety during transportation (remove at time of installation)
Maximum water temperature: 140F
6 ft, 3-conductor cable with grounded 3-prong plug
Some models include 20' x 3/8" I.D. vinyl discharge tubing
Electrical Ratings
Horsepower: 1/50 hp
Frequency: 60 Hz
Amps - Full Load: 1 A
Full Load Watts: 60 W
Volts: 115 VAC
Cord Length: 6 ft / 1.83 m
Continuous Duty: No
Max Flow Rate: 60 Hz 1.08 gpm / 65 gph / 246 Lph / 4.1 Lpm / 0.25 m³/h
Flow Rate At 1ft: 1.08 gpm / 65 gph / 246 Lph / 4.1 Lpm / 0.25 m³/h
Max PSIG: 6.5 PSI
Shut-Off: 15 ft / 4.57 m
Safety Switch: YES
Tank Capacity: 0.5 gal / 1.89 L
Materials of Construction
Pump Base Material: Plastic
Pump Body Material: Plastic
Check Valve No
Installation
Discharge Thread: Barb
Discharge Type: Barb
Discharge: 0.38 "
Product Width: 5 " / 12.7 cm
Product Height: 7.03 " / 17.86 cm
Product Length: 11 " / 27.94 cm
Product Weight: 5.5 lb / 2.49 kg
Product Weight: w/ Pack 6 lb / 2.72 kg
Carton Width: 7.44 " / 18.89 cm
Carton Height: 7.13 " / 18.1 cm
Carton Length: 12 " / 30.48 cm
Tubing Included: Yes
This pump automatically removes condensate water that drips from an air conditioner evaporator coil, refrigeration equipment coil, condensing furnace, or condensing boiler. The pump is controlled by a float switch mechanism, which automatically starts and stops the pump.
Some models also include a high-water level switch, which opens a thermostat circuit when the pump reservoir is full, stopping production of condensate. Alternatively, this switch can be reconfigured to close a circuit, which can operate an external alarm or relay, (purchased separately)
.
