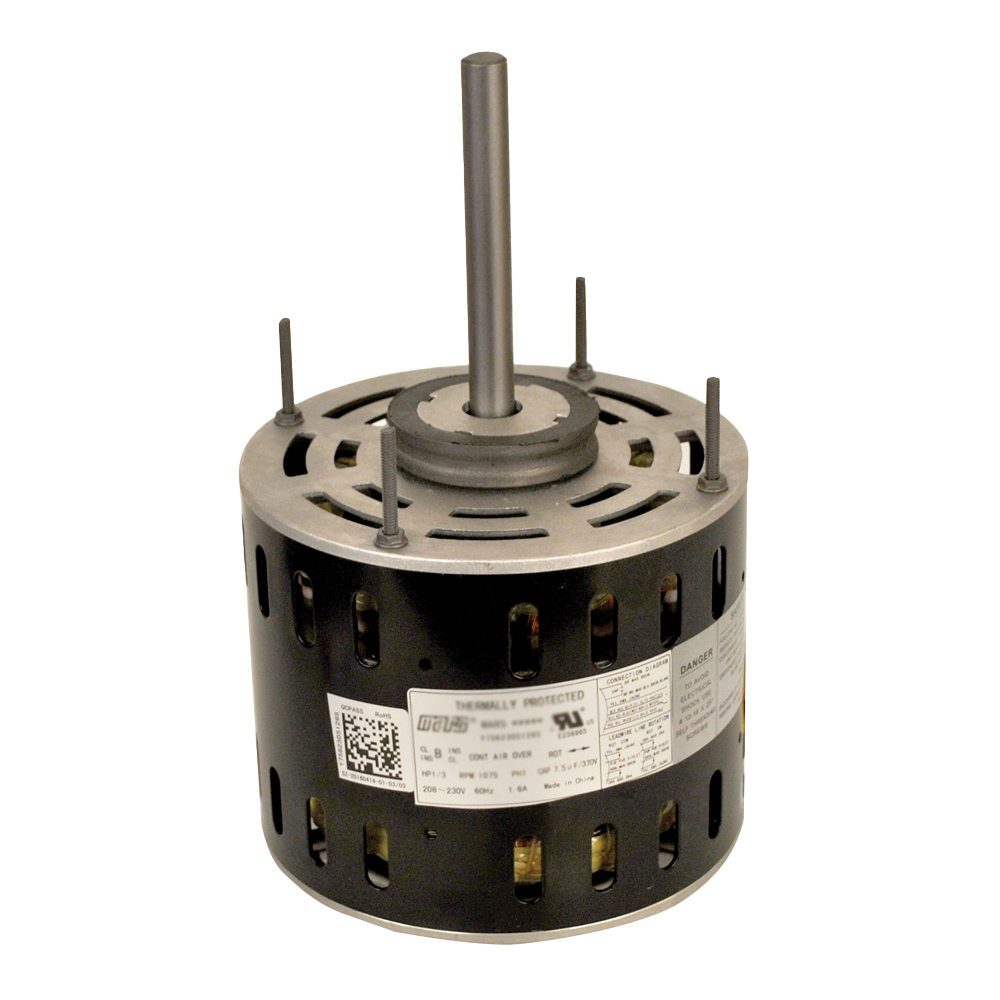

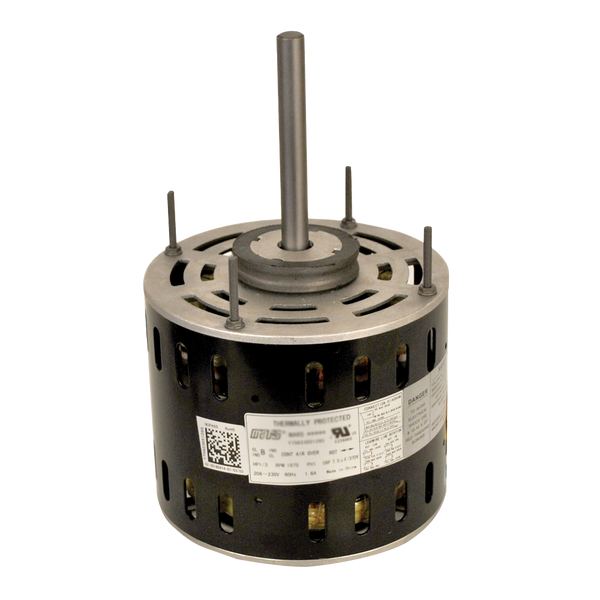

Mars 10576 Hi Efficiency Direct Drive 1/3HP 208-230V 1075 RPM Motor
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
MARS High Efficiency direct drive blower motors save ENERGY. Designed for continuous air over applications, such as furnace blowers or central air handling units with single shaft requirements.
Features
Optimized high efficiency design
12-15% more efficient compared to standard motors
Permanently lubricated ball bearings
Rheem mounting holes
Extended thru bolts, shaft end
3 Speeds
Open Construction
Product Details:
Motor Type: PSC
Enclosure: OPAO
H.P. (Max.): 1/3
Voltage: 208-230
Speeds: 3
Hz: 60
Rotation: REV
RPM Range: 1075
NEMA Frame Size: 48
Phase: Single
Standards: cULus
FLA: 1.6
Mount: ThruBolt/All Angle
Bearing: Ball
Shaft Length Inches: 4.5
Shaft Dia Inches: 1/2
Thermal Protection: Auto
Ambient Deg C: 40
Ins. Class: Class B
Capacitor Included: No
Capacitor Rating: 7.5/370
