10578

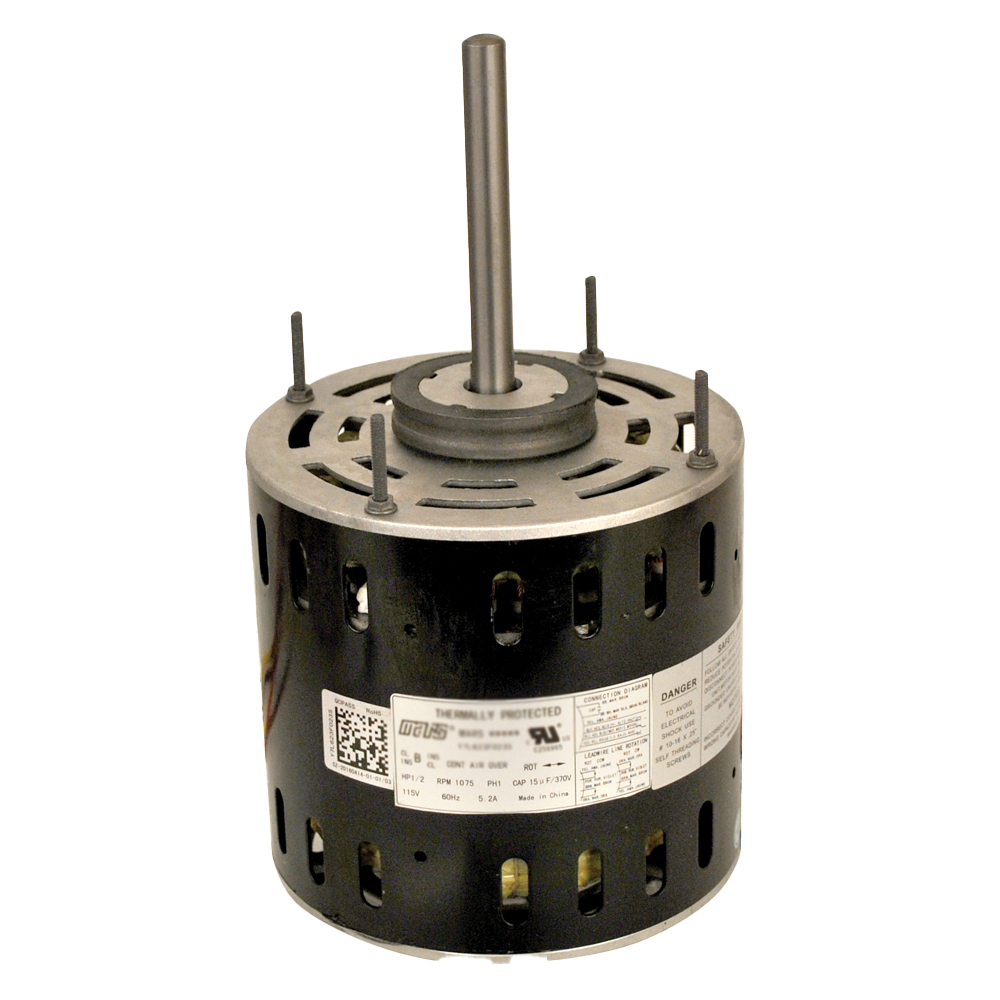

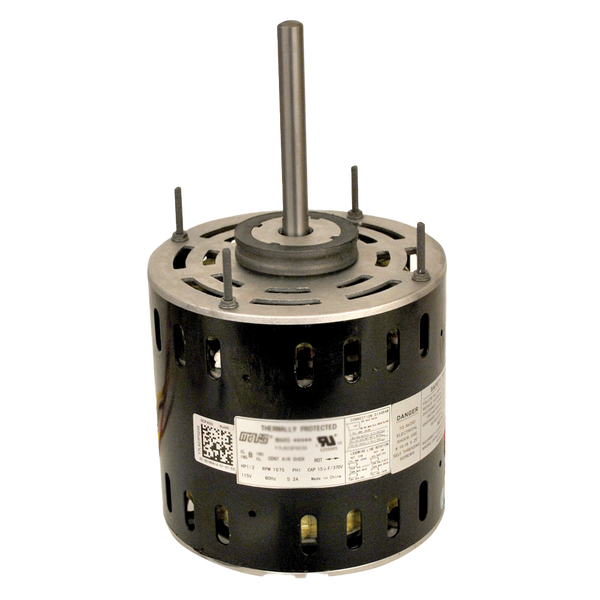

Mars 10578 Hi Efficiency Direct Drive 1/2HP 208-230V 1075 RPM Motor

4 items left
MARS High Efficiency direct drive blower motors save ENERGY. Designed for continuous air over applications, such as furnace blowers or central air handling units with single shaft requirements. Features Optimized high efficiency design 12-15% more efficient compared to standard motors Permanently lubricated ball bearings Rheem mounting holes Extended thru bolts, shaft end 3 Speeds Open Construction Product Details: Motor Type: PSC Enclosure: OPAO H.P. (Max.): 1/2 Voltage: 208-230 Speeds: 3 Hz: 60 Rotation: REV RPM Range: 1075 NEMA Frame Size: 48 Phase: Single Standards: cULus FLA: 2.5 Mount: ThruBolt/All Angle Bearing: Ball Shaft Length Inches: 4.5 Shaft Dia Inches: 1/2 Thermal Protection: Auto Ambient Deg C: 40 Ins. Class: Class B Capacitor Included: No Capacitor Rating: 10/370
