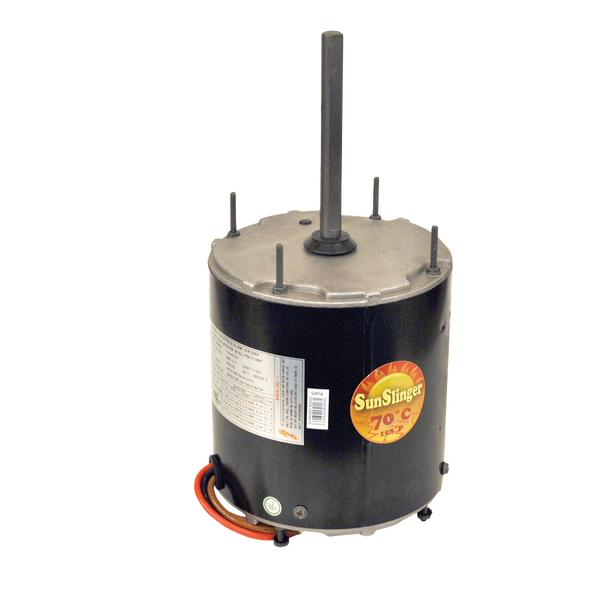

Mars 20459 70C Multi-Horsepower SunSlinger Condenser Fan Motor
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
MARS 70°C multi-horsepower SunSlinger condenser fan motors are ideal for truck stock. They are designed to provide reliable operation in a wide range of ambient temperatures. Three 1075 RPM models cover 208-230 volt applications from 1/6 to 1/2 HP. Two 825 RPM models cover 208-230 volt applications from 1/8 to 1/3 HP.
Features:
All angle
Rheem shell mounting holes with screws installed
Trane 4.33 bolt circle mounting holes with self-tapping screws
Thru bolt or band mounting
Water slinger on shaft
Extra set of nuts on mounting studs
Specifications
Motor Type: PSC
Enclosure: TEAO
H.P. (Max.): 1/3
Voltage: 208-230
Multi-Rated H.P.: 1/8-1/3
Speeds: 1
Hz: 60
Rotation: REV
RPM Range: 825
NEMA Frame Size: 48
Phase: Single
Standards: CUL
FLA: 1.9
Mount: All Angle
Bearing: Ball
Shaft Length Inches: 6.5
Shaft Dia Inches: 1/2
Thermal Protection: Auto
Ambient Deg C: 70
Ins. Class: Class B
Capacitor Included: No
Capacitor Rating: 10/370
