20728

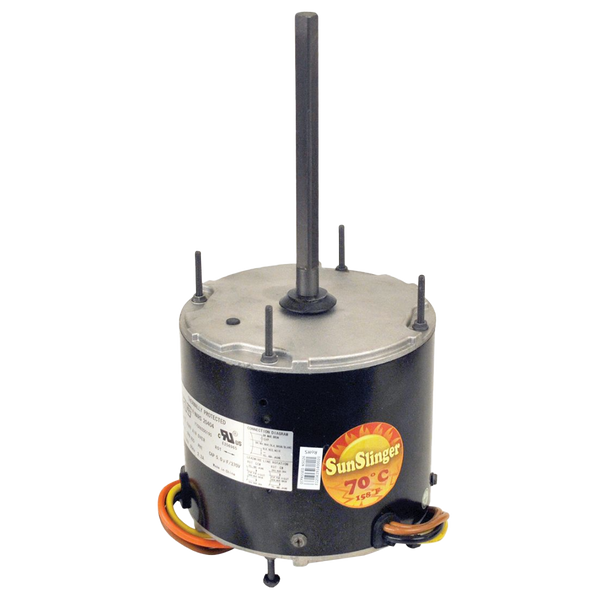

Mars 20728 SunSlinger 1/4HP 208-230V Condenser Fan Motor, Single Phase 60HZ
MARS 70C SunSlinger totally enclosed condenser fan motors are designed for either vertical shaft-up or shaft-down applications in a variety of ambient conditions. Shell and end shields are enclosed for weather protection. A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications.
Features:
All angle, ball bearing
Rheem mounting holes w/screws installed
Trane 4.33 bolt circle mounting holes with self tapping screws
Reversible rotation
Thru bolt or band mounting
Water slinger on shaft
Capacitor requirement noted on motor label
Extra set of nuts on mounting studs
Specifications:
Motor Type: PSC
Enclosure: TEAO
H.P. (Max.): 1/4
Voltage: 208-230
Speeds: 1
Hz: 60
Rotation: REV
RPM Range: 1075
NEMA Frame Size: 48
Phase: Single
Standards: CUL
FLA: 1.8
Mount: All Angle
Bearing: Ball
Shaft Length Inches: 6.5
Shaft Dia Inches: 1/2
Thermal Protection: Auto
Ambient Deg C: 70
Ins. Class: Class B
Capacitor Included: No
Capacitor Rating: 5/370
