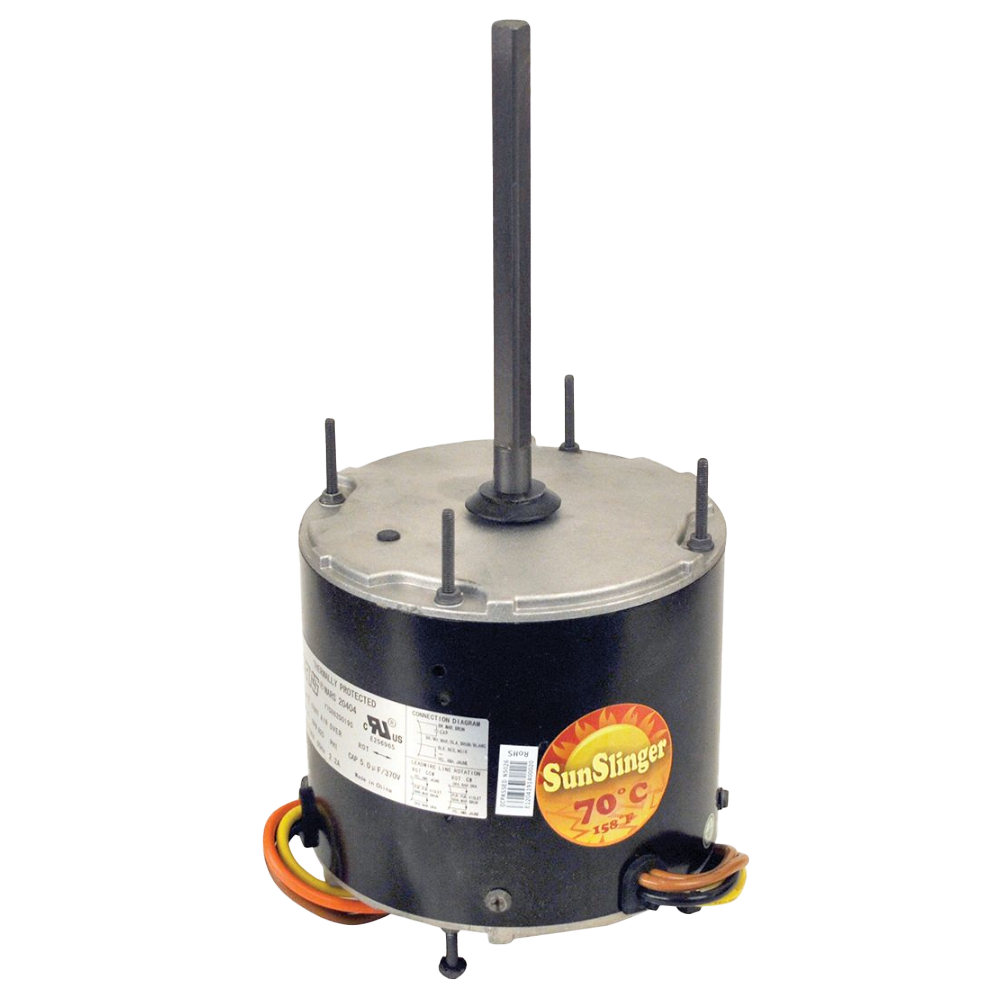

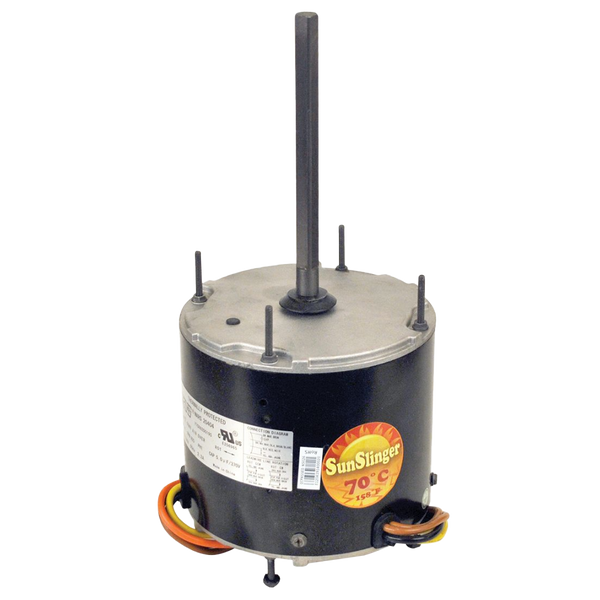

Mars 20730 SunSlinger 1/2HP 208-230V Condenser Fan Motor, Single Phase 60 Hertz

MARS 70C SunSlinger totally enclosed condenser fan motors are designed for either vertical shaft-up or shaft-down applications in a variety of ambient conditions. Shell and end shields are enclosed for weather protection. A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications. Features: All angle, ball bearing Rheem mounting holes w/screws installed Trane 4.33 bolt circle mounting holes with self tapping screws Reversible rotation Thru bolt or band mounting Water slinger on shaft Capacitor requirement noted on motor label Extra set of nuts on mounting studs Specifications Motor Type: PSC Enclosure: TEAO H.P. (Max.): 1/2 Voltage: 208-230 Speeds: 1 Hz: 60 Rotation: REV RPM Range: 1075 NEMA Frame Size: 48 Phase: Single Standards: CUL FLA: 3.5 Mount: All Angle Bearing: Ball Shaft Length Inches: 6.5 Shaft Dia Inches: 1/2 Thermal Protection: Auto Ambient Deg C: 70 Ins. Class: Class B Capacitor Included: No Capacitor Rating: 10/370
