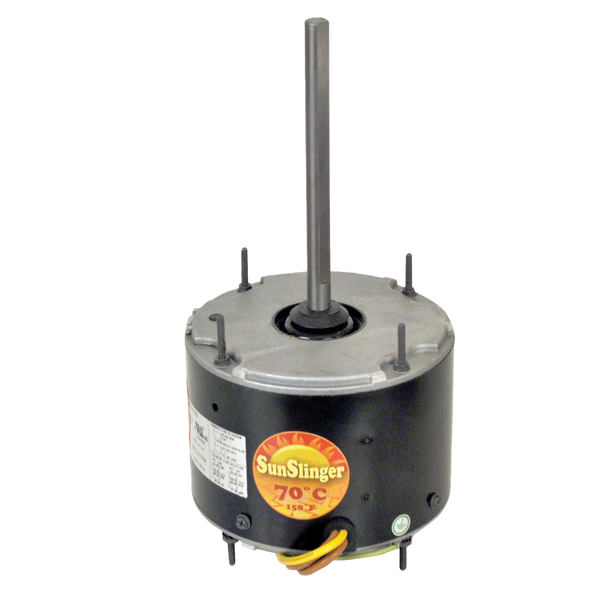

Mars 20837 SunSlinger 1/3HP 460V Condenser Fan Motor, Single Phase 60HZ
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
MARS 70C SunSlinger totally enclosed outdoor condenser fan motors are designed for all angle air conditioning or heat pump applications. A weep hole is provided in each end shield to allow condensate to drain.
Features:
All angle
Rheem mounting holes w/screws installed
Trane 4.33 bolt circle mounting holes and self tapping screws
Extended thru bolt or band mounting and extra nuts
Capacitor requirement noted on motor label
Water slinger on shaft
End shield drain holes w/plugs
Specifications:
Motor Type: PSC
Enclosure: TEAO
H.P. (Max.): 1/3
Voltage: 460
Speeds: 1
Hz: 60
Rotation: REV
RPM Range: 1075
NEMA Frame Size: 48
Phase: Single
Standards: CUL
FLA: 0.9
Mount: Thru Bolt/All Angle
Bearing: Ball
Shaft Length Inches: 6.5
Shaft Dia Inches: 1/2
Thermal Protection: Auto
Ambient Deg C: 70
Ins. Class: Class F
Capacitor Included: No
Capacitor Rating: 7.5/440
