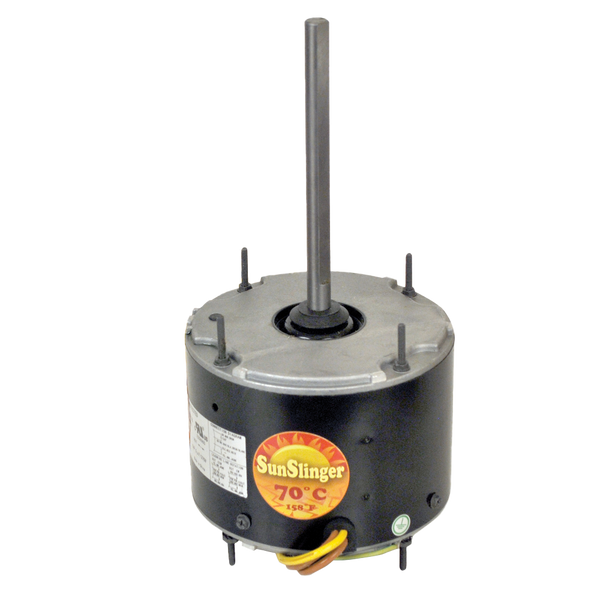

Mars 20838 SunSlinger 1/2HP 460V Condenser Fan Motor, Single Phase 60HZ

MARS 70C SunSlinger totally enclosed outdoor condenser fan motors are designed for all angle air conditioning or heat pump applications. A weep hole is provided in each end shield to allow condensate to drain. Features: All angle Rheem mounting holes w/screws installed Trane 4.33 bolt circle mounting holes and self tapping screws Extended thru bolt or band mounting and extra nuts Capacitor requirement noted on motor label Water slinger on shaft End shield drain holes w/plugs Specifications: Motor Type: PSC Enclosure: TEAO H.P. (Max.): 1/2 Voltage: 460 Speeds: 1 Hz: 60 Rotation: REV RPM Range: 1075 NEMA Frame Size: 48 Phase: Single Standards: CUL FLA: 1.3 Mount: Thru Bolt/All Angle Bearing: Ball Shaft Length Inches: 6.5 Shaft Dia Inches: 1/2 Thermal Protection: Auto Ambient Deg C: 70 Ins. Class: Class F Capacitor Included: No Capacitor Rating: 10/440
