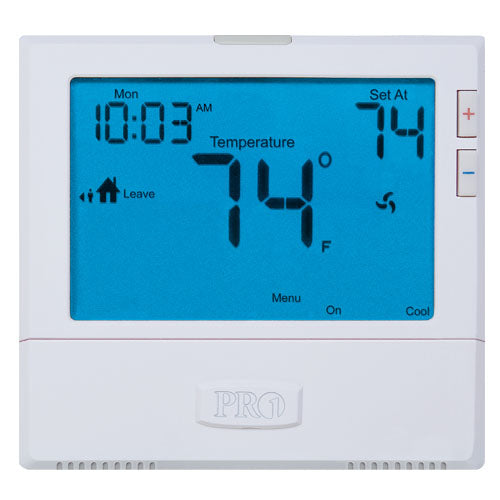

Pro1 IAQ T805 7-Day Programmable Dual-Powered Thermostat, 1H/1C
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
FEATURES:
7 Day or 5/1/1 progammable, or non-programmable
Can be converted to heat-only operation in Installer menu
Auto Changeover
Easy menu driven programming
Intuitive wake, leave, return, sleep programming icons
8 sq. inch display
Blue backlight
Glow in the dark light button
Programmable fan
Electric or Gas configurable
Separate heating and cooling swing (cycle rate) adjustments
Room temperature calibration adjustment
Keypad lockout
Heating and cooling setpoint limits
5 minute compressor delay protection (selectable on or off)
Filter change indicator - (selectable on or off)
Simple private label badge system
Easy wire color coded terminal blocks
Universal sub-base
Mounts on wall or junction box
Battery or 24v power
5 year warranty
SPECIFICATIONS:
The display range of temperature - 41ºF to 95ºF (5ºC to 35ºC)
The control range of temperature - 44ºF to 90ºF (7ºC to 32ºC) L
oad rating - 1 amp per terminal, 1.5 amp maximum all terminals combined
Display accuracy - ± 1ºF S
wing (cycle rate or differential) - Heating is adjustable from 0.4ºF to 2.0ºF / Cooling is adjustable from 0.4ºF to 2.0ºF
Power source - 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) / Battery power from 2 AA Alkaline Energizer batteries
Operating ambient - 32ºF to +105ºF (0º to +41ºC)
Operating humidity - 90% non-condensing maximum
Dimensions - 4.7"W x 4.4"H x 1.1"D
Terminals - Rc, Rh, C, W, Y, G, B, O
