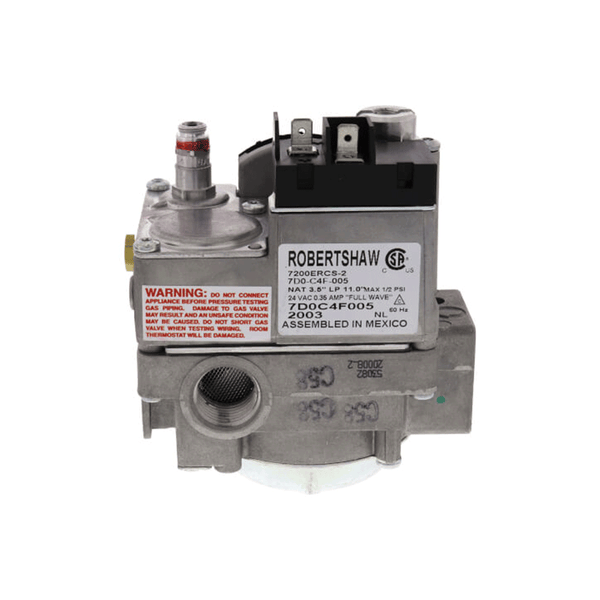

Robertshaw 720-472 1/2in 24V Dual Gas Valve with 150k BTU Capacity
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The Robertshaw 720-472 24V Dual Gas Valve has a 150,000 BTU Capacity and an inlet and outlet size of 1/2in. It's pressure regulation rating is 3.5in WC Natural or 11.0in LP Convertible Gas and it has a Reducer Blushing of (1) 1/2in by 3/8in. It has 1/2in FTP with Plugs as side outlets.. Uni-Kit® models are factory set at 3.5” WC for natural gas but can be converted to LP by installing the regulator conversion kit included. The wiring connections, manual selector and adjustments are easily accessible on top of the valve.
This Dual Gas Valve has six-functions and incorporates a manual valve, safety shut-off magnet, dual automatic valves, main gas regulator, and pilot adjustment. Models are available with and without a pressure regulator. It has a 3-9/16” swing radius.
This model has a step-opening ot 40% of full flow within 30 seconds for mobile homes.
Features
Gas cock dial marking Off - Pilot - On
Pilot outlet 1/4” tubing
Ambient temperature of -40°F to 175°F
Combination screw/spade terminal type
Maximum inlet pressure 14” WC (0.5 PSI)
Standard NEMA terminals
Inlet filtered screen
Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
Multiple actuators available
RoHS compliant
