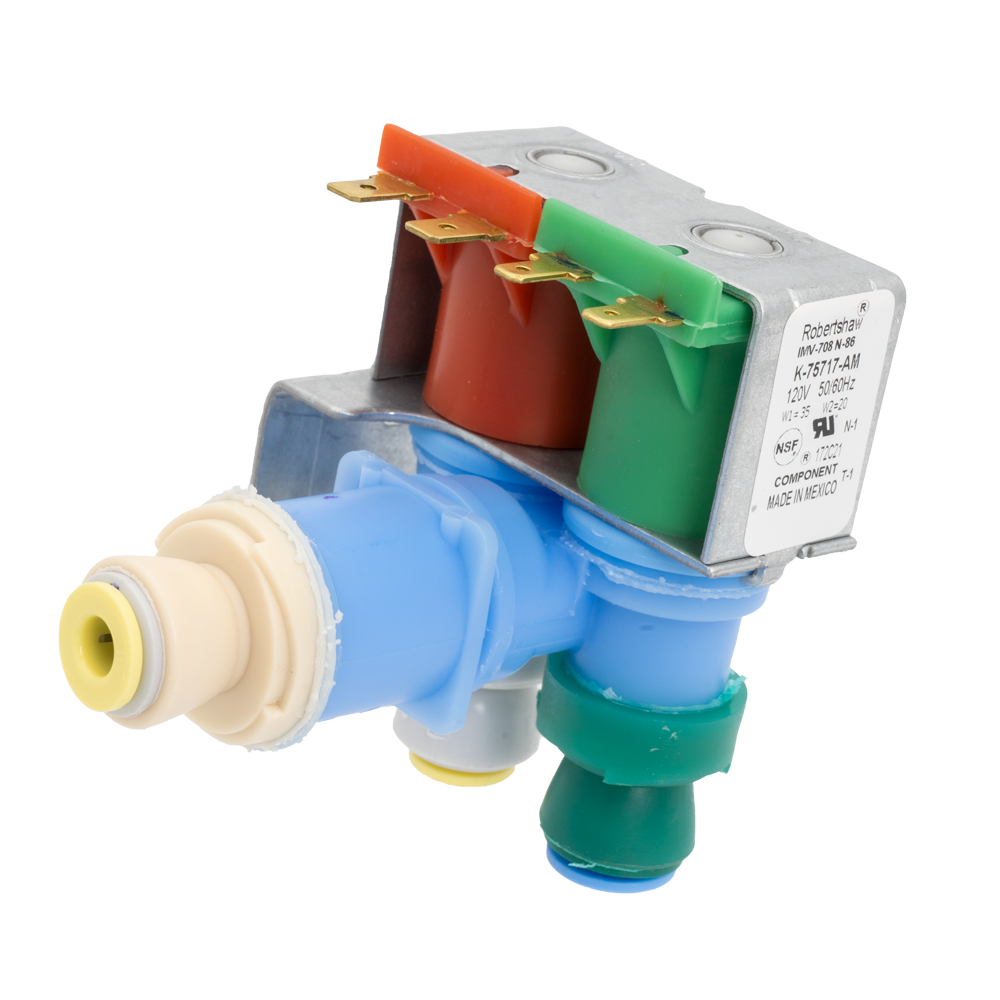

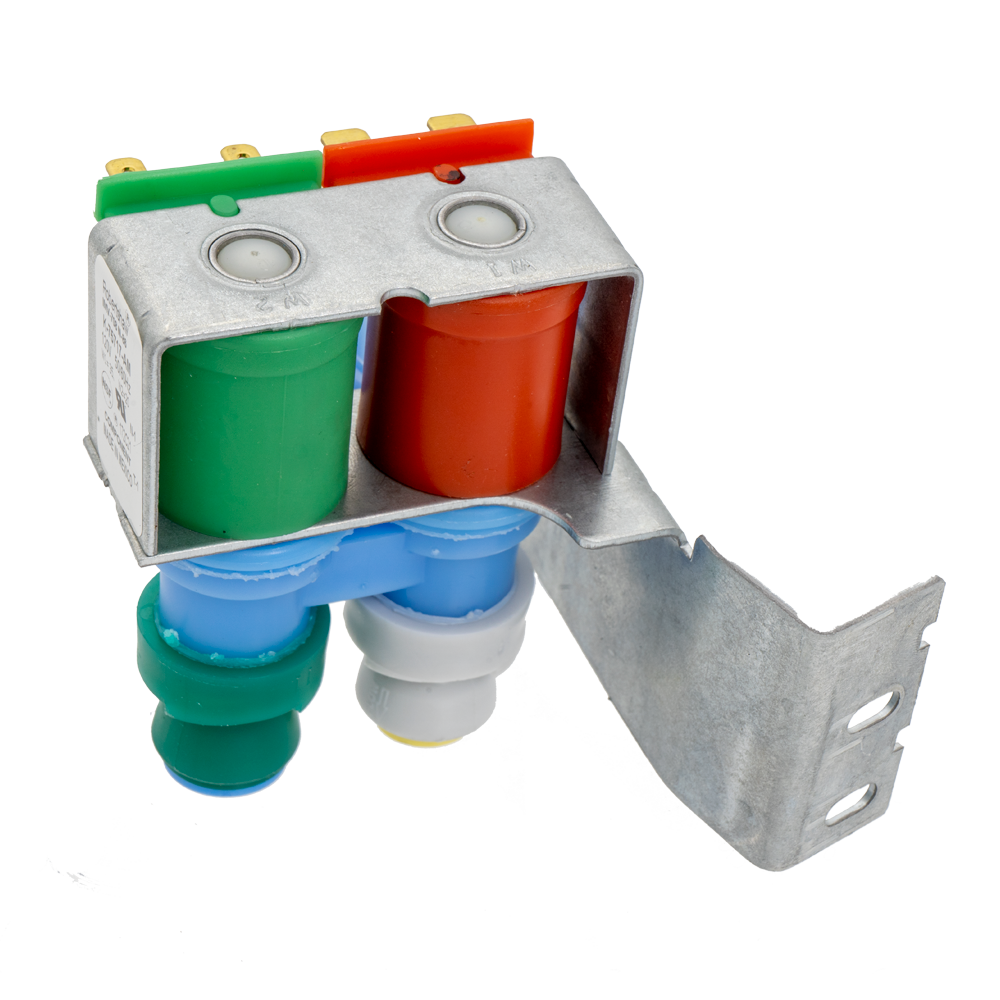

Robertshaw IMV-708 N-86 Ice Machine Water Valve, 120V

The Robertshaw IMV-708 is a 120V AC, 50/60 Hz, 35W|120V AC, 50/60 Hz, 20W residential ice machine N-86 Dual Water Valve. The Robertshaw N-86 Dual Water Valve Series are automatic icemaker valves for residential refrigerator icemakers. The N-86 valve allows individual control of water flow through two outlets by using a single inlet for water to the door and for water to fill the icemaker. Features Direct acting armature provides high flow capacity with minimum power requirements Encapsulated coil provides high mechanical and dielectric strength, and is moisture resistant Unique armature and seat design reduce unwanted particles from entering the armature area Armature is designed with clearances which minimize the possibility of jamming due to foreign materials Bodies are made of polypro which provides high resistance to corrosion and mineral deposits Suitable for applications using water at temperatures up to 160°F (71°C) Specifications Series Application: Residential Ice Machine Water Valve N-86 Dual Electrical Rating: 120V AC, 50/60 Hz, 35W|120V AC, 50/60 Hz, 20W Body Material: Polypro Inlet Size: 1/4" flare, loxit or compression Operating Pressure: 20 PSI to 120 PSI Outlet: 7/16" 20 UNF|1/2" 20 UNF Terminals: 1/4" Male|3/16" Male Flow Rate: 130 CC in 7.5 seconds, 22-38 CC per second
