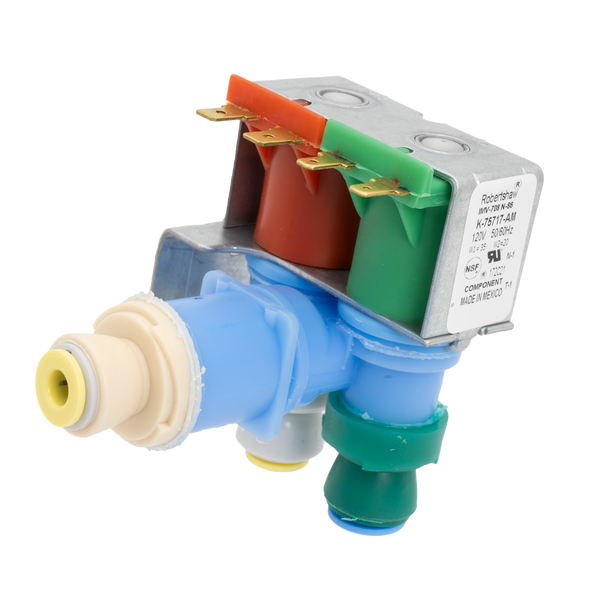

Robertshaw IMV-708 N-86 Ice Machine Water Valve, 120V
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The Robertshaw IMV-708 is a 120V AC, 50/60 Hz, 35W|120V AC, 50/60 Hz, 20W residential ice machine N-86 Dual Water Valve.
The Robertshaw N-86 Dual Water Valve Series are automatic icemaker valves for residential refrigerator icemakers. The N-86 valve allows individual control of water flow through two outlets by using a single inlet for water to the door and for water to fill the icemaker.
Features
Direct acting armature provides high flow capacity with minimum power requirements
Encapsulated coil provides high mechanical and dielectric strength, and is moisture resistant
Unique armature and seat design reduce unwanted particles from entering the armature area
Armature is designed with clearances which minimize the possibility of jamming due to foreign materials
Bodies are made of polypro which provides high resistance to corrosion and mineral deposits
Suitable for applications using water at temperatures up to 160°F (71°C)
Specifications
Series Application: Residential Ice Machine Water Valve N-86 Dual
Electrical Rating: 120V AC, 50/60 Hz, 35W|120V AC, 50/60 Hz, 20W
Body Material: Polypro
Inlet Size: 1/4" flare, loxit or compression
Operating Pressure: 20 PSI to 120 PSI
Outlet: 7/16" 20 UNF|1/2" 20 UNF
Terminals: 1/4" Male|3/16" Male
Flow Rate: 130 CC in 7.5 seconds, 22-38 CC per second
