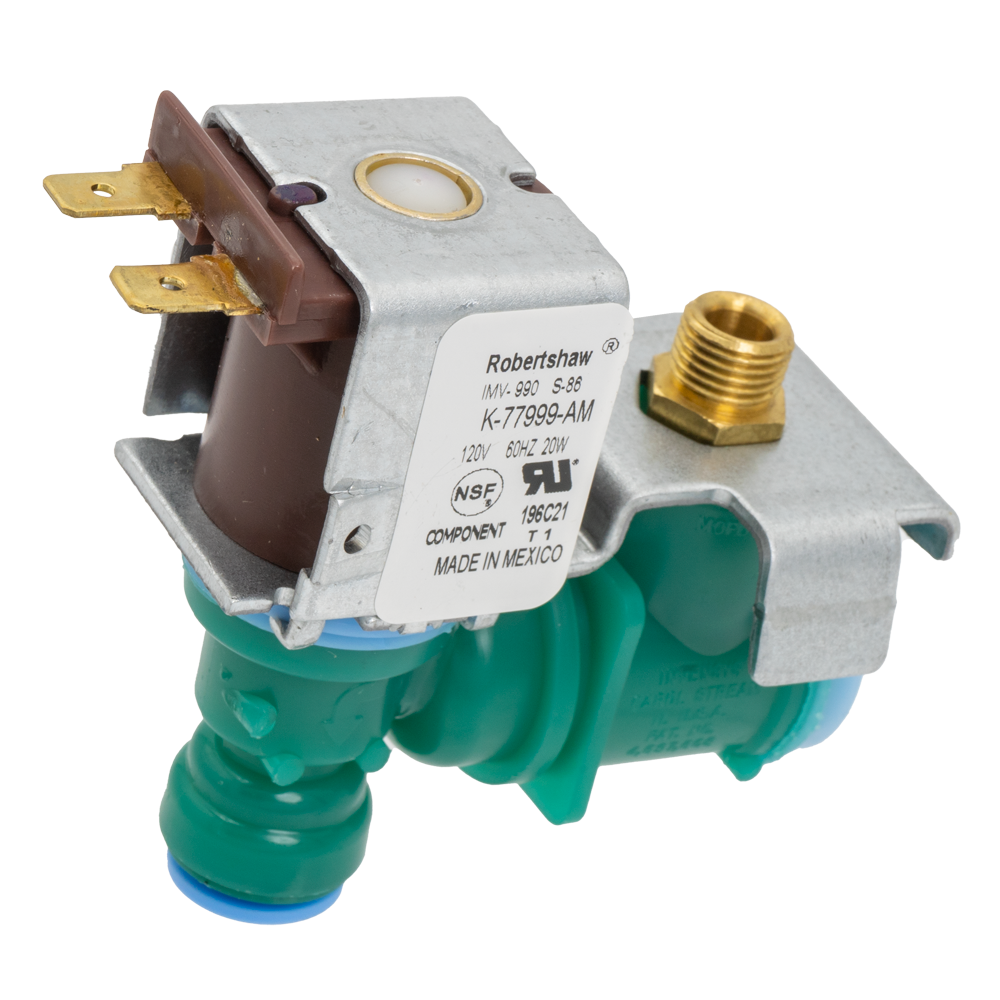

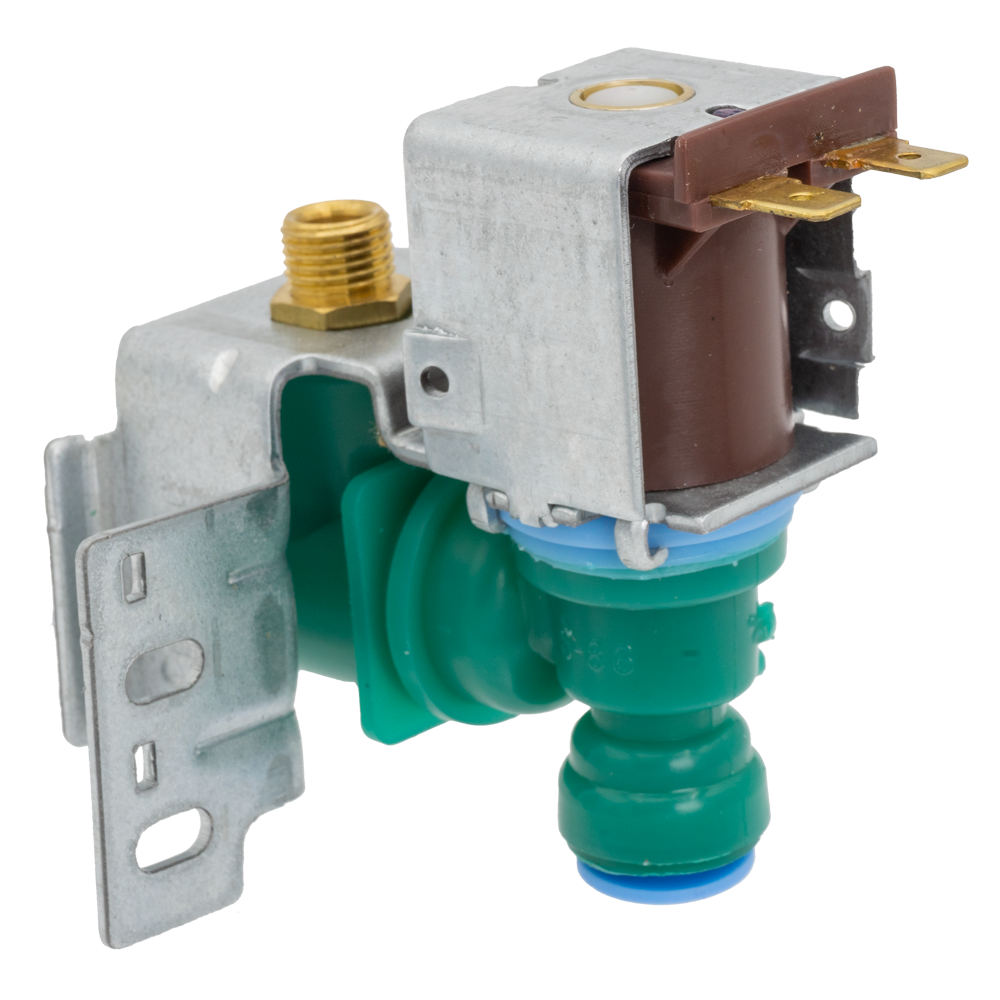

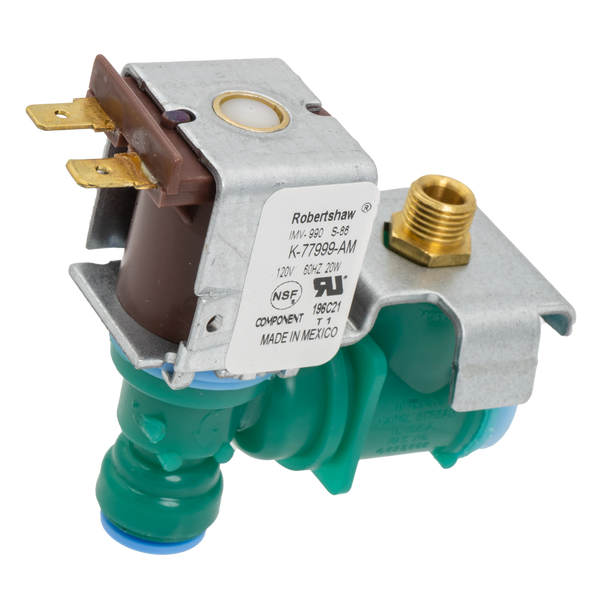

Robertshaw IMV-990 Water Solenoid Inlet Valve Pump for Whirlpool
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The Robertshaw IMV-990 is a 120V AC, 60 Hz, 20W residential ice machine S-86 Dual Water Valve.
The Robertshaw S-86 Dual Water Valve Series are automatic icemaker valves for residential refrigerator icemakers.
Features
Direct acting armature provides high flow capacity with minimum power requirements
Encapsulated coil provides high mechanical and dielectric strength, and is moisture resistant
Unique armature and seat design reduce unwanted particles from entering the armature area
Armature is designed with clearances which minimize the possibility of jamming due to foreign materials
Bodies are made of polypro which provides high resistance to corrosion and mineral deposits
Suitable for applications using water at temperatures up to 160°F (71°C)
Specifications
Series Application: Residential Ice Machine Water Valve S-86 Dual
Electrical Rating: 120V AC, 60 Hz, 20W
Body Material: Polypro
Operating Pressure: 20 PSI to 120 PSI
Inlet Size: 7/16" 24 UNS
Outlet: 5/16" quick connect
Terminals: 1/4" Male
Flow Rate: 180-600 CC in 7.5 seconds
Replaces: Whirlpool W10342318, Whirlpool 10498990
Factory Part Number: K-77999
