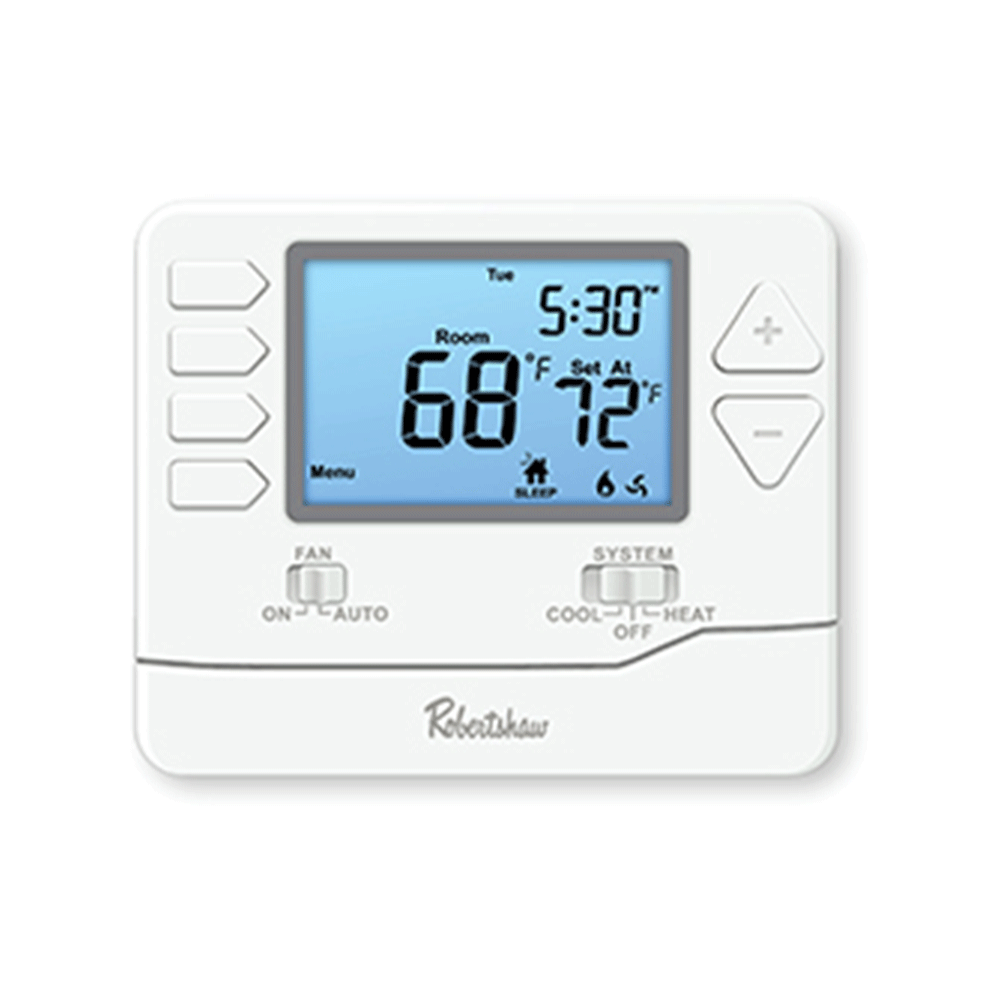

Robertshaw RS8210 Non-Programmable Multi-Stage Wall Thermostat, 2H/1C
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The Robertshaw RS8210 is a multi-state non-programmable thermostat that ontractors can offer owners easy, yet powerful and reliable two-stage heating and one-stage cooling control in a simple, modern design with the RS8210 non-programmable wall thermostat.
Features
Large terminal blocks for easy installation
Universal sub-base
Quick access menu button
Contractor/technician setup menu Simple, yet powerful control.
Large, easy-to-read 4.6-square-inch blue backlit display
24V AC Powered OR Battery Operation (Included)
6Year Limited Warranty
Easy-access front-load battery compartment
Adjustable temperature differential (swing) for energy optimization and maximum system life
Adjustable room temperature calibration
Adjustable setpoint limits
Filter change reminder
Five-minute selectable on/off compressor delay protection for short-cycling prevention
Separate O and B terminals
Specifications
Dimensions 4.7 x3.8 x 1in (119.6 x 97.6 x 26mm)
Mounting Type Wall or junction box
Temperature Range 41°F to 95°F (5°C to 35°C)
Power Source 24V AC (18 to 30V AC), 50/60 Hz for hardwire common wire or 2 AAA 1.5V alkaline batteries (included)
Terminals: R, C, Y, W2, W/E, G, O, B
