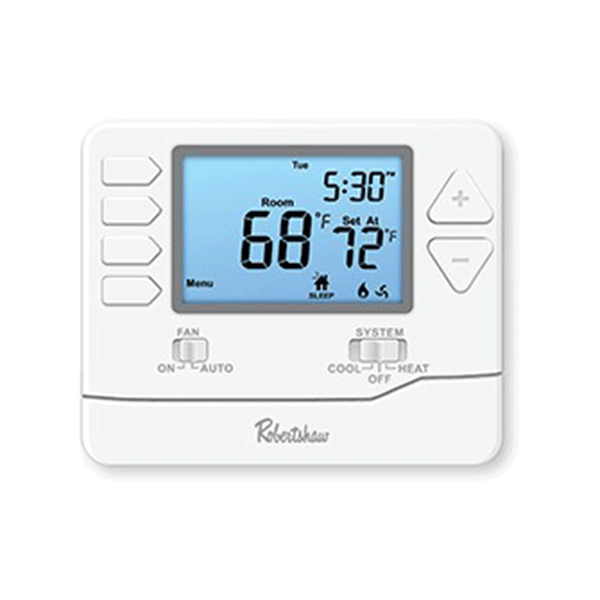

Robertshaw RS9110 Programmable Single-Stage Thermostat, 1H/1C

Notify me when this product is available:

The Robertshaw RS9110 is a 1 Heat / 1 Cool programmable thermostat that contractors can offer to owners that is easy, yet powerful and reliable single-stage heating and cooling control in a simple, modern design with the RS9110 programmable wall thermostat. Features Large terminal blocks for easy installation Universal sub-base Quick-access menu button Contractor/technician setup menu Easy-to-understand programming menus Intuitive wake, leave, return, sleep programming icons 24V AC Powered OR Battery Operation (Included) 6Year Limited Warranty Factory pre-set energy efficiency program Simple, yet powerful control. Large, easy-to-read 4.6-square-inch blue backlit display Easy-access front-load battery compartment Adjustable temperature differential (swing) for energy optimization and maximum system life Adjustable room temperature calibration Adjustable setpoint limits Five-minute selectable on/off compressor delay protection for short-cycling prevention Separate O and B terminals Filter change reminder Specifications Dimensions: 4.7 x3.8 x 1in (119.6 x 97.6 x 26mm) Mounting Type: Wall or junction box Temperature Range: 41°F to 95°F (5°C to 35°C) Power Source: 24V AC (18 to 30V AC), 50/60 Hz for hardwire (common wire or 2 AAA 1.5V alkaline batteries (included) Terminals: Rh, Rc, C, Y, W, G, O, B
