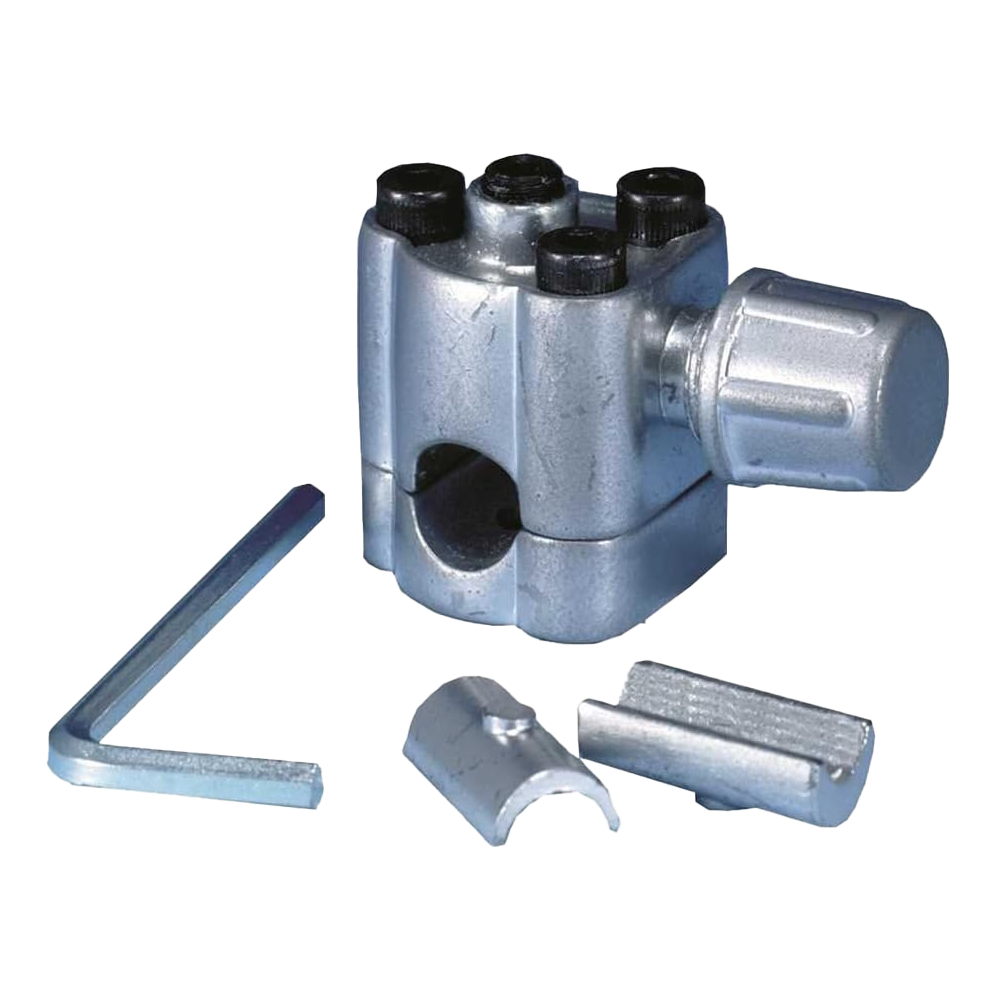

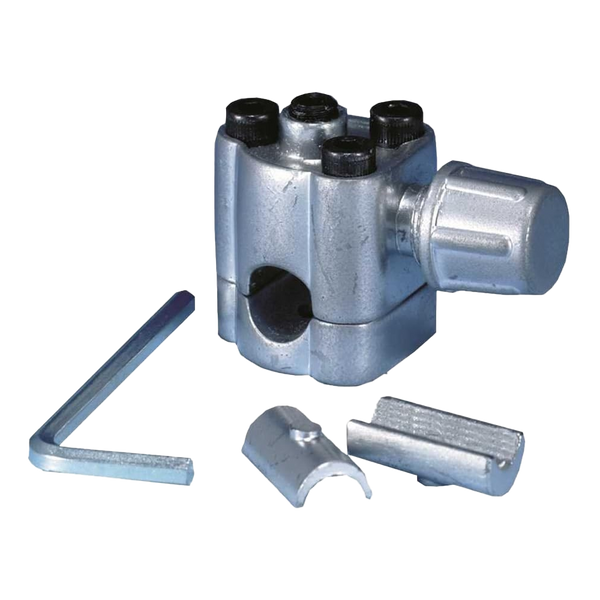

Supco BPV31 Bullet Piercing Valve
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The only valve with a permanent gasket to provide 50 times more sealing area then standard O-ring type valves. Safe for use on the LOW SIDE of R410 systems.
Features:
500 PSI Maximum pressure
OD size: ¼", 5/16", and â…œ"
Connection: ¼" Male Flare (0.25")
Material: Zinc
Corrosion resistant
Hex key wrench included
Non-positional mounting, no adapter valve required
Patented valve gasket provides 50 times more sealing area than competitive 'O' ring types
Piercing needle is engineered for concentricity and hardness to insure perfect seating every time
Requires only 2" clearance for installation and operation
