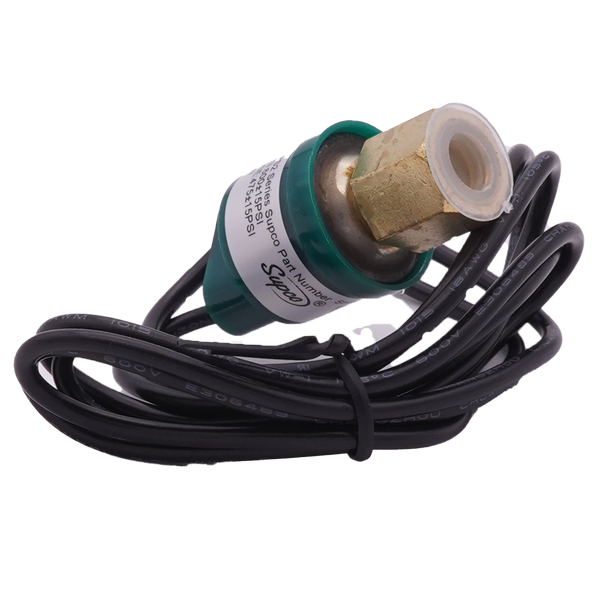

Supco SHP600475 High Pressure Control Switch
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
These switches are encapsulated nonadjustable, SPST, direct mount switches for use with HFC, HCFC, and CFC refrigerants. The switches are available with automatic reset in both open low and open high configurations and manual reset with open high switching. These switches can also be used as operating controls in applications such as low ambient condenser fan control.
Features:
1/4in SAE 45-degree female flare fitting with valve core depressor
Excellent set point repeatability/stability
High pressure switch opens on pressure rise
Life at rated load: 100,000 cycles
Rated Voltage 24/120/240 VAC at 50/60 Hz
Small size and light weight for direct mounting
Snap acting stainless steel hermetically sealed sensor
Wire is 18 AWG, 18in long
