SIG1100

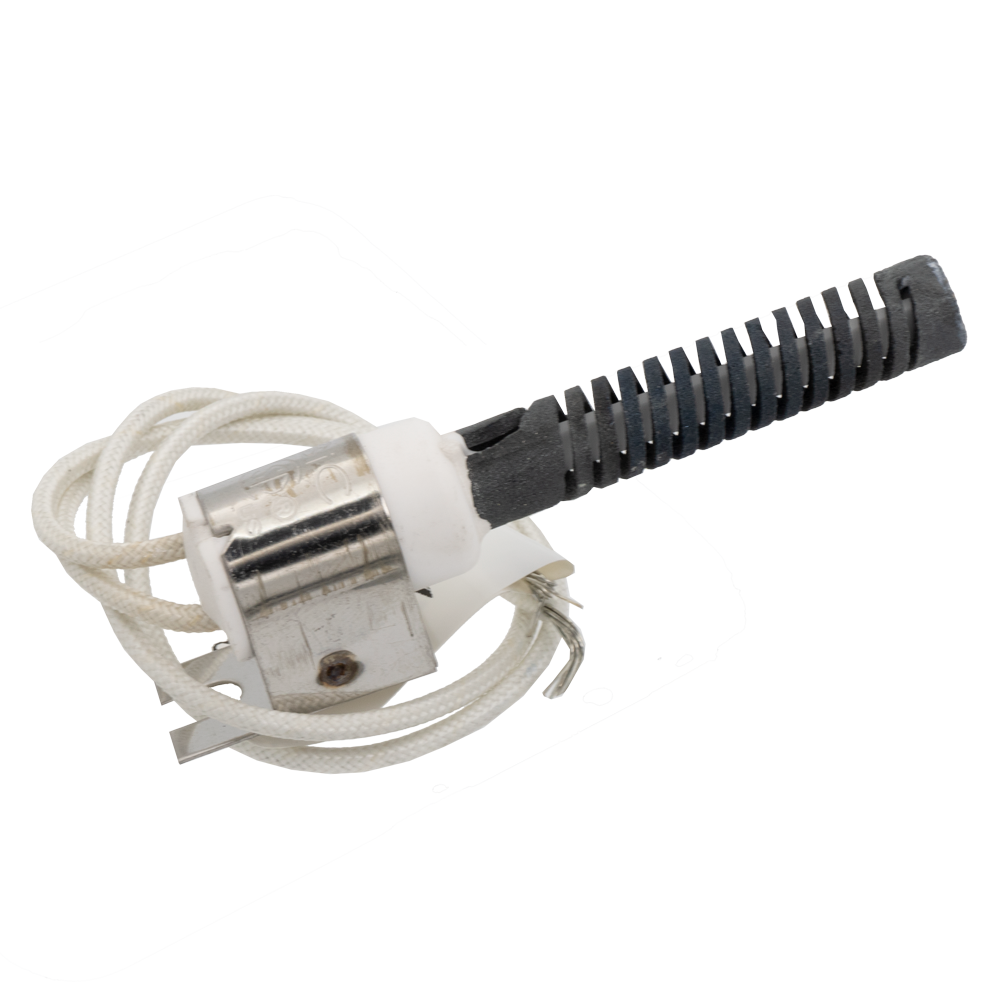

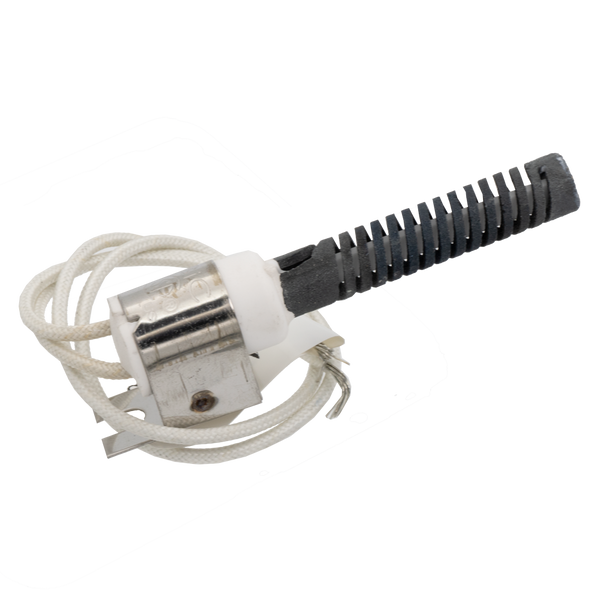

Supco SIG1100 Universal Round Silicon Carbide Igniter Kit

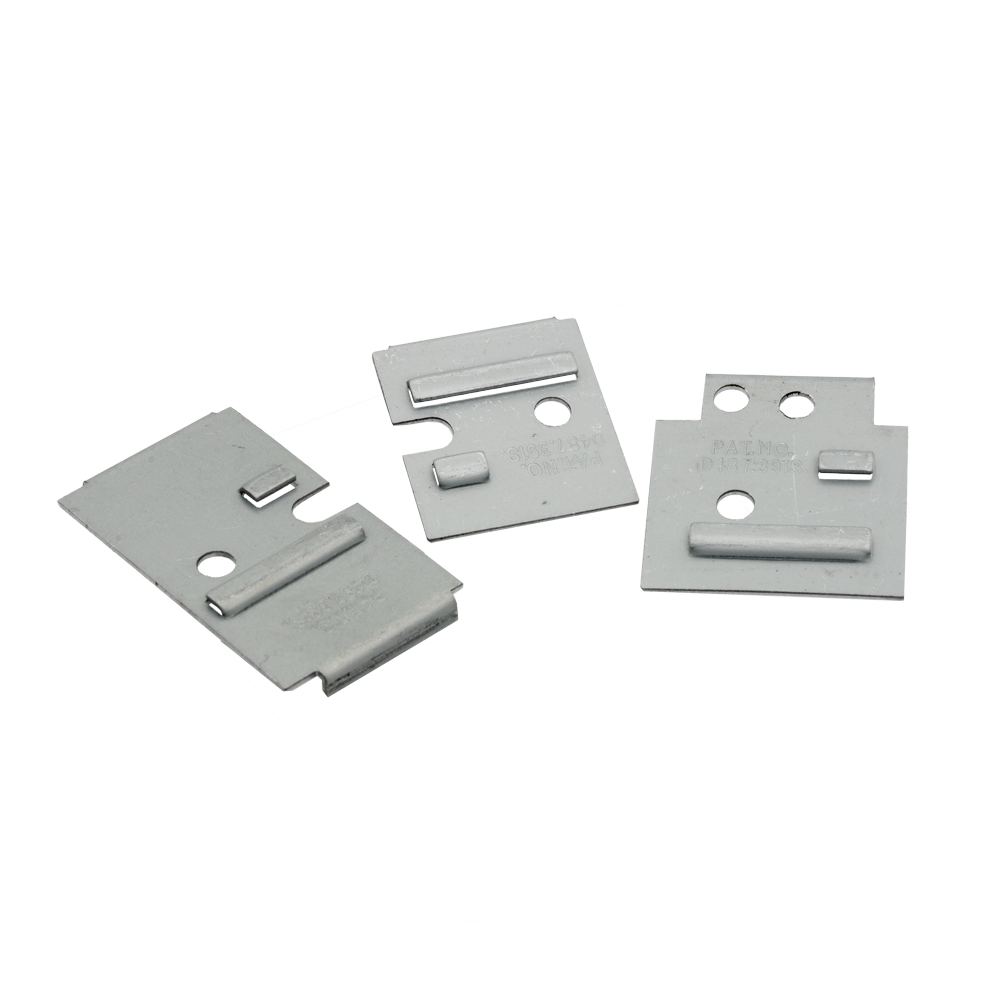

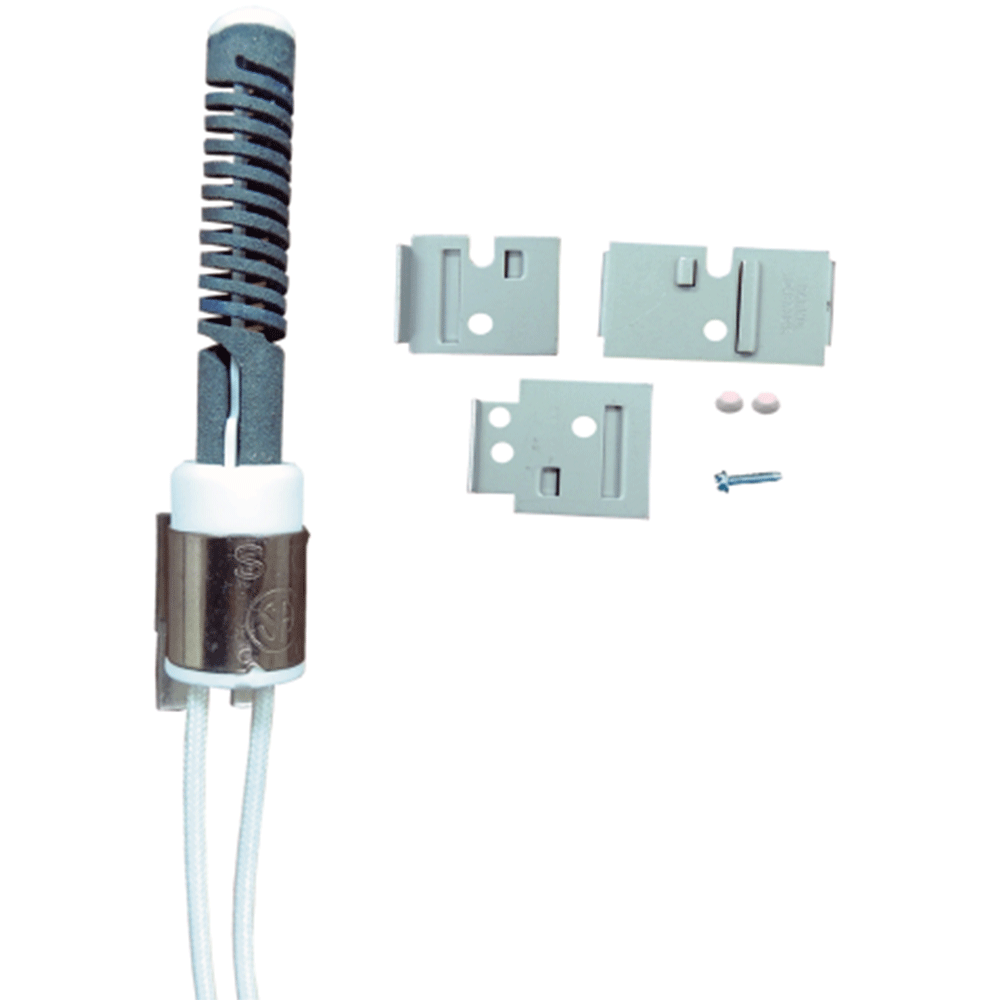

The Supco SIG1100 is a universal round silicon carbide igniter kit that includes brackets and hardware to replace hundreds of OEM furnace and boiler igniters for over 150 different SKUs.
Features
Universal igniter kit is designed to replace hundreds of OEM part numbers
Universal replacement minimizes inventory
Superior gas lighting ability
Lower power consumption
18 gauge copper high temperature fiberglass insulated lead wires
Supco® round igniters offer an efficient , stronger, reliable hot surface Silicon Carbide design
Faster time to temperature response
Stronger more durable design
More robust in transit
Higher resistance to oxidation
Longer usable life
Applications
Furnaces
Boilers
Water heaters
Unit heaters
Pool heaters
Specifications
Time to temperature (1800°F): < 17 seconds @ 120 VAC
Voltage: 120 VAC
Amperage: 4 amps @ 132 VAC maximum
Cold resistance: 40-100 Ohms @ 75°F +/- 10°F
