Supco SLP1025 Low Pressure Switch | 10 PSI Open, 25 PSI Close
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.

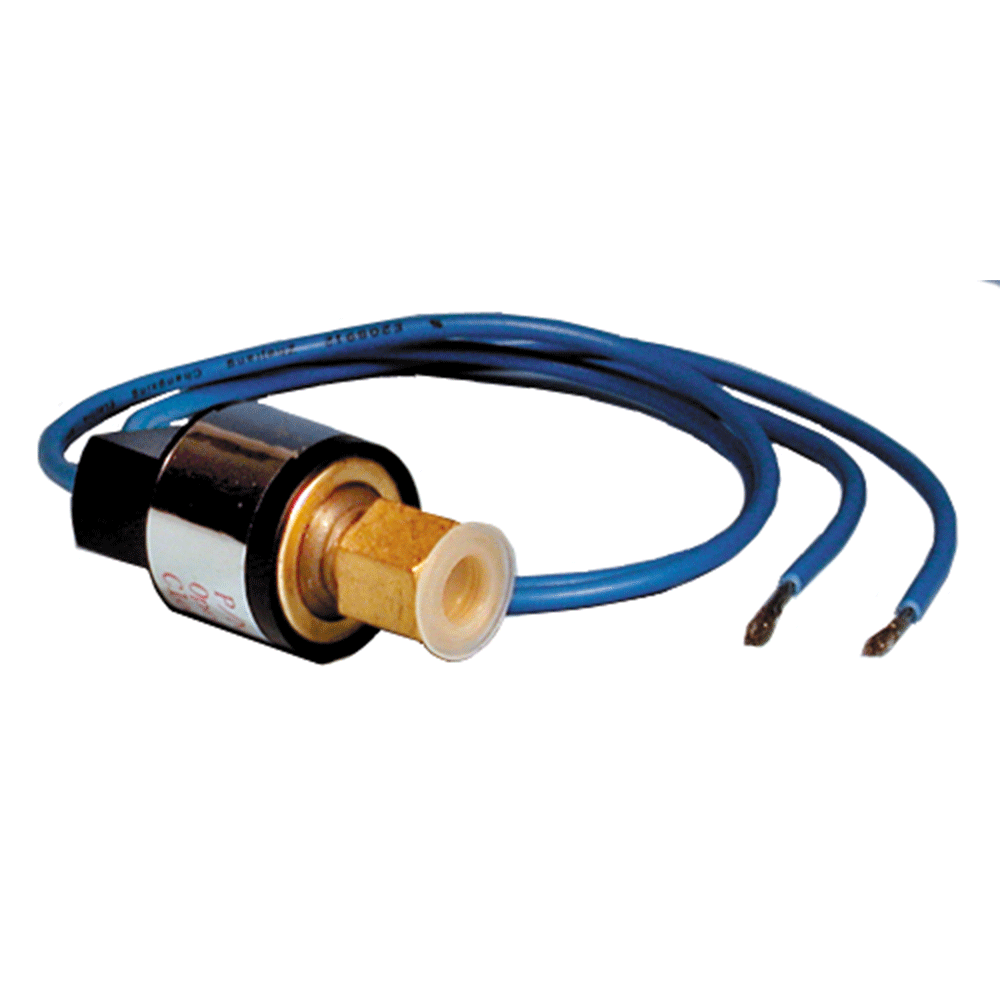

The Supco SLP1025 is a 10 Open PSI, 25 PSI Close pressure switch provides high precision controls at economical prices. Encapsulated, non-adjustable, single pole - single throw, direct mount switches for use with HFC, HCFC, and CFC refrigerants.
Features
Low pressure switch opens on pressure fall
Rated Voltage 24/120/240 VAC @ 50/60 Hz
Life at rated load: 100,000 cycles
¼" SAE 45° female flare fitting with valve core depressor
Snap acting stainless steel hermetically sealed sensor
Small size and light weight for direct mounting
Excellent set point repeatability/stability
Wire is 18 AWG, 18" long
Applications
Heat pump systems
Air conditioning systems
Refrigeration Systems
Specifications
Tolerance: +/- 5 PSI
Open PSI: 10 PSI
Close PSI: 25 PSI
Burst Pressure: 2800 PSI
Maximum Operating Pressure: 700 PSI
Maximum Temperature: -31°F to 149°F (-35°C to 65°C)
Maximum LRA: 17.4 Amps @ 240VAC
Maximum LRA: 34.8 Amps @ 120VAC
Maximum FLA: 2.9 Amps @ 240VAC
Maximum FLA: 5.8 Amps @ 120VAC
