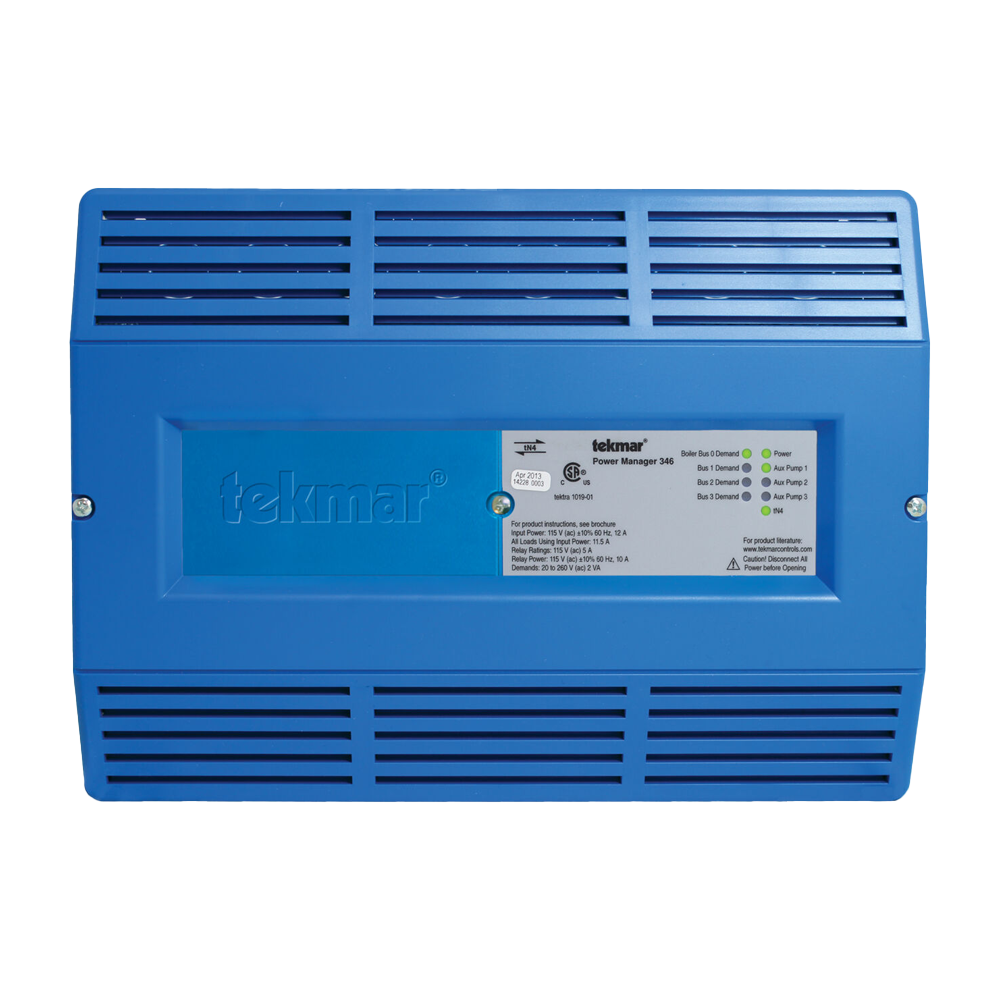

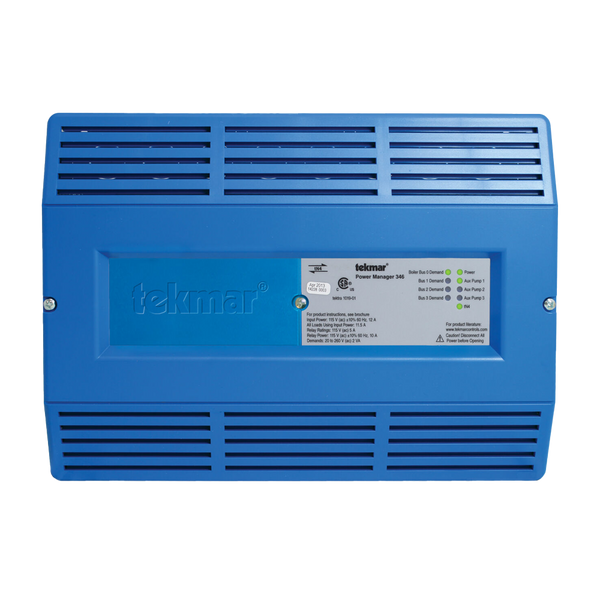

Tekmar 346 Power Manager, Three Auxiliary Pumps, Four Demands
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The Power Manager 346 is designed to allow non-tekmar products to interface with a tekmarNet 4 communicating heating system. It can be used in applications that use 3rd party thermostats, zoning devices, or mechanical equipment that requires a hot water demand from the boiler system. This product provides demand inputs for up to 4 different reset water temperatures (high temp, low temp 1, low temp 2, low temp 3). It has the capability of switching 3 pump outputs and provides wiring for up to 3 tekmarNet 4 devices, as well as the 4 separate demand inputs to create a heat call on one of up to 4 possible reset water temperatures.
Features:
CSA C US certified for use in the USA and Canada
Converts demands to tekmarNet 4 communication
Internal 50 VA transformer
Four on-off demand inputs
Four tekmarNet 4 buses
Provides power to tekmarNet 4 reset module
tekmarNet 4 compatible
Three 115 V powered auxiliary pump outputs
