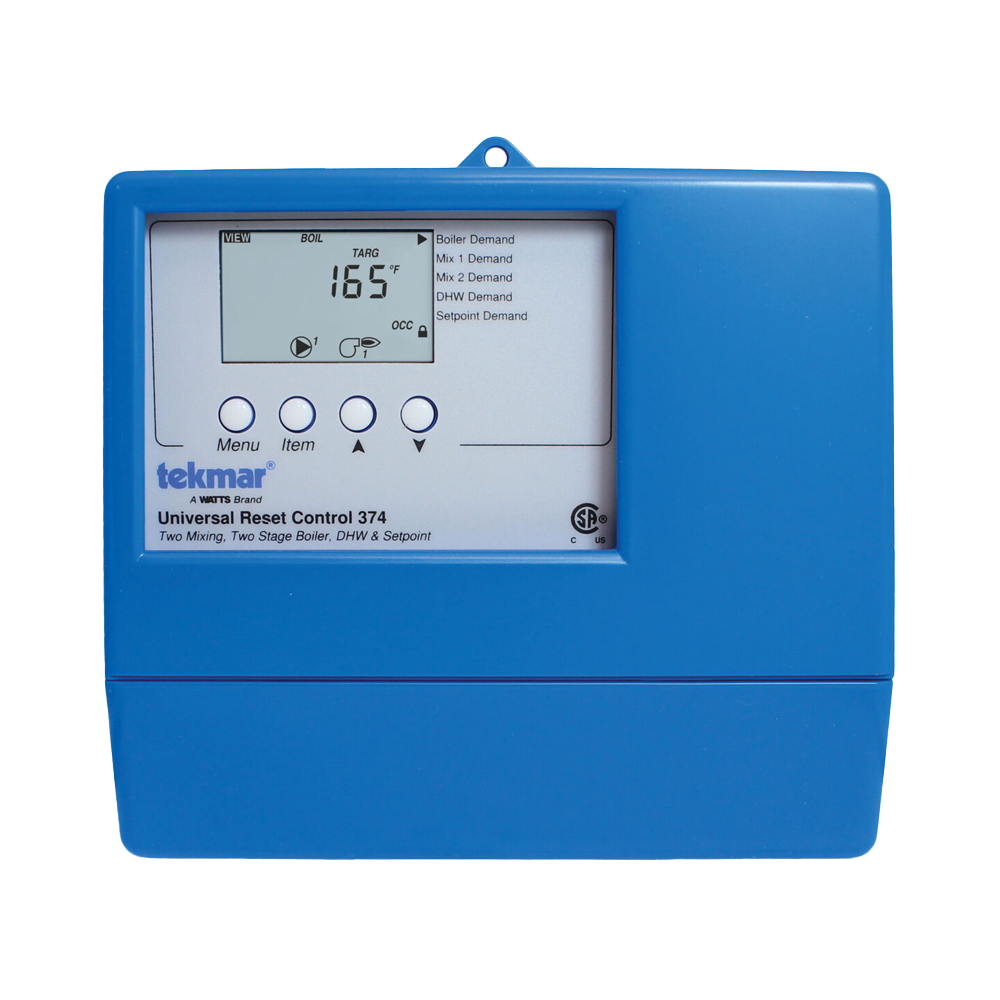

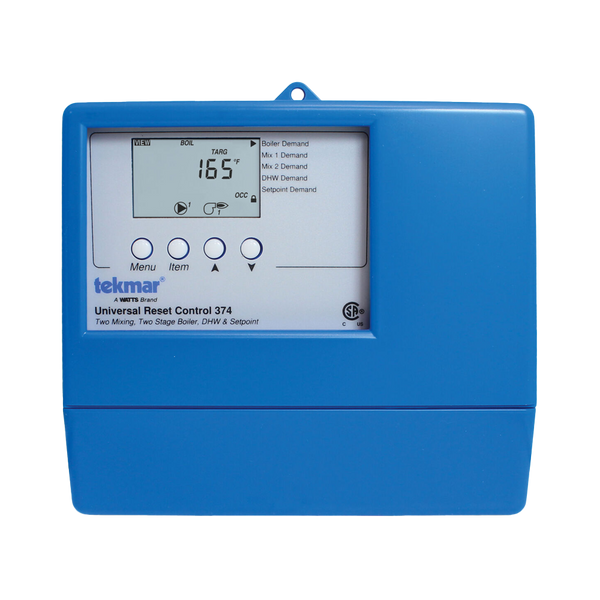

Tekmar 374 Universal Reset Control, Two Mixing, Two Stage Boiler, DHW and Setpoint
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The Universal Reset Control 374 is designed to operate all of the mechanical equipment in a residential hydronic heating system. It can be used in applications ranging from a single zone of baseboard with an on/off boiler to multiple fan coils, low temperature staple up zones, low temperature in-slab radiant zones, domestic hot water, and 2 on/off boilers. It regulates up to three space heating water temperatures through Outdoor Temperature Reset. It is capable of controlling up to 2 on/off boilers, up to 2 mixing devices (either variable speed pumps or floating action mixing valves), and Domestic Hot Water or setpoint loads.
Features:
Outdoor temperature reset, warm weather shut down
Boiler load reset, automatic boiler differential
3 Outdoor temperature reset controlled water temperatures, control up to 2 on/off boilers
Equal run time rotation, 2 X variable speed pump outputs or 2 X floating action mixing outputs
Powered boiler system and mixing system pump outputs, exercising
DHW pump or valve operation, DHW priority (optional)
Quick setup for easy installation, user comfort adjustment to increase or decrease building space temperature
Advanced settings to fine-tune building requirements, test sequence to ensure proper operation
CSA C US certified (approved to applicable UL standards)
