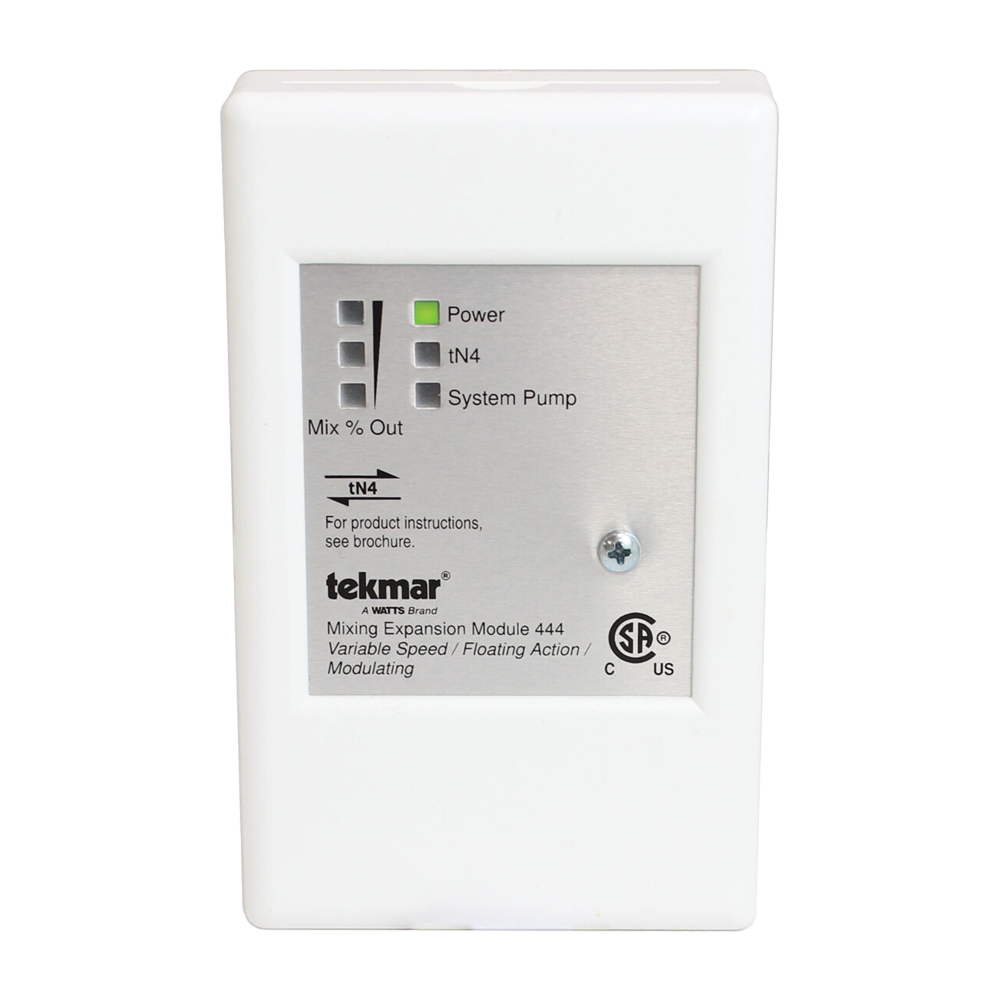

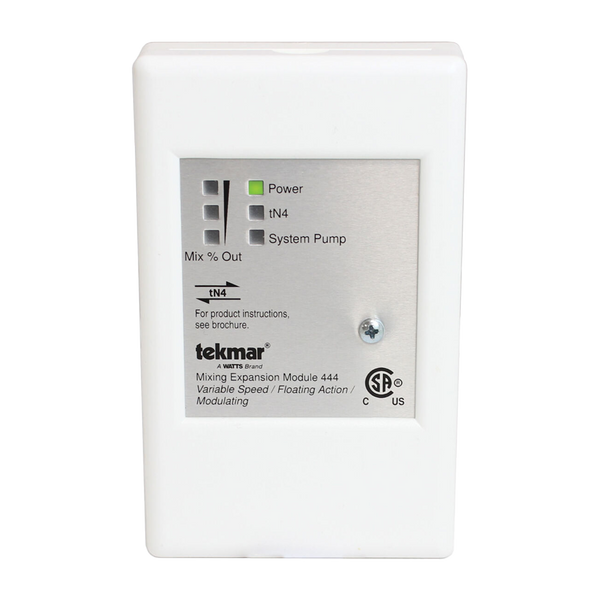

Tekmar 444 Mixing Expansion Module, Variable Speed, Floating Action, Modulating
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The Mixing Expansion Module 444 is designed to operate a mixing device within a hydronic heating system as part of a tekmarNet® control system. It is capable of controlling a mixed system pump and six optional outputs for mixing: a variable speed injection pump, a floating action actuator, or an analog 0-10 V (dc), 2-10 V (dc), 0-20 mA, or 4-20 mA signal.
Features:
Requires a tekmarNet 4 system control
Powered variable speed injection pump
Powered 24 V (ac) floating action output
Analog 0-20 mA or 4-20 mA output
Analog 0-10 V (dc) or 2-10 V (dc) output
Powered 120 V (ac) system pump
Powered 24 V (ac) system pump output
CSA C US certified for use in USA and Canada
