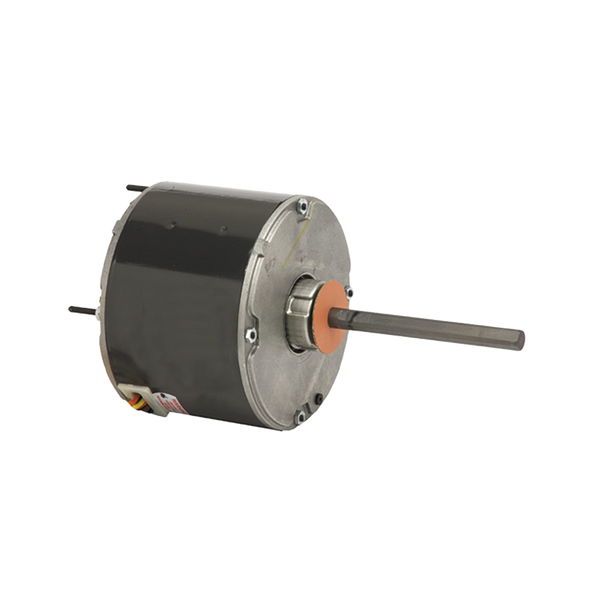

US Motors 1860 1/4HP 1075RPM 208-230V Split Capacitor Condenser Fan, Enclosed, Air Over
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
US Motors 1860 1/4HP 1075RPM 208-230V Split Capacitor Condenser Fan, Enclosed, Air Over
Features:
140°F (60°C) Ambient Design
Bearings Have All Angle Thrust System
Class B Insulation
Suitable for Use With 370V Capacitors
Extended Studs
30" Leads
Hubless Lead End
Drain Holes Both Ends
Reversible Rotation (Unless otherwise noted)
Automatic Reset Thermal Overload Protector
Continuous Duty
Specs:
HORSEPOWER: 1/4
RPM: 1075RPM
HERTZ: 60
VOLTS PRIMARY: 208-230
VOLTS: 208
VOLTS 2: 230
FRAME: 48
SHAFT CODE: Y
STACK: 1.375
MOUNTING: STUD/BAND
MOTOR TYPE: FHP
AMBIENT: 60C
ROTATION: CCW LEAD END REV
SERVICE FACTOR: 1
RUNCAPMFD: 5
RUNCAPVOLTS: 370
THERMAL PROTECTION: AUTOMATIC RESET
FULL LOAD AMPS PRIMARY: 1.5
