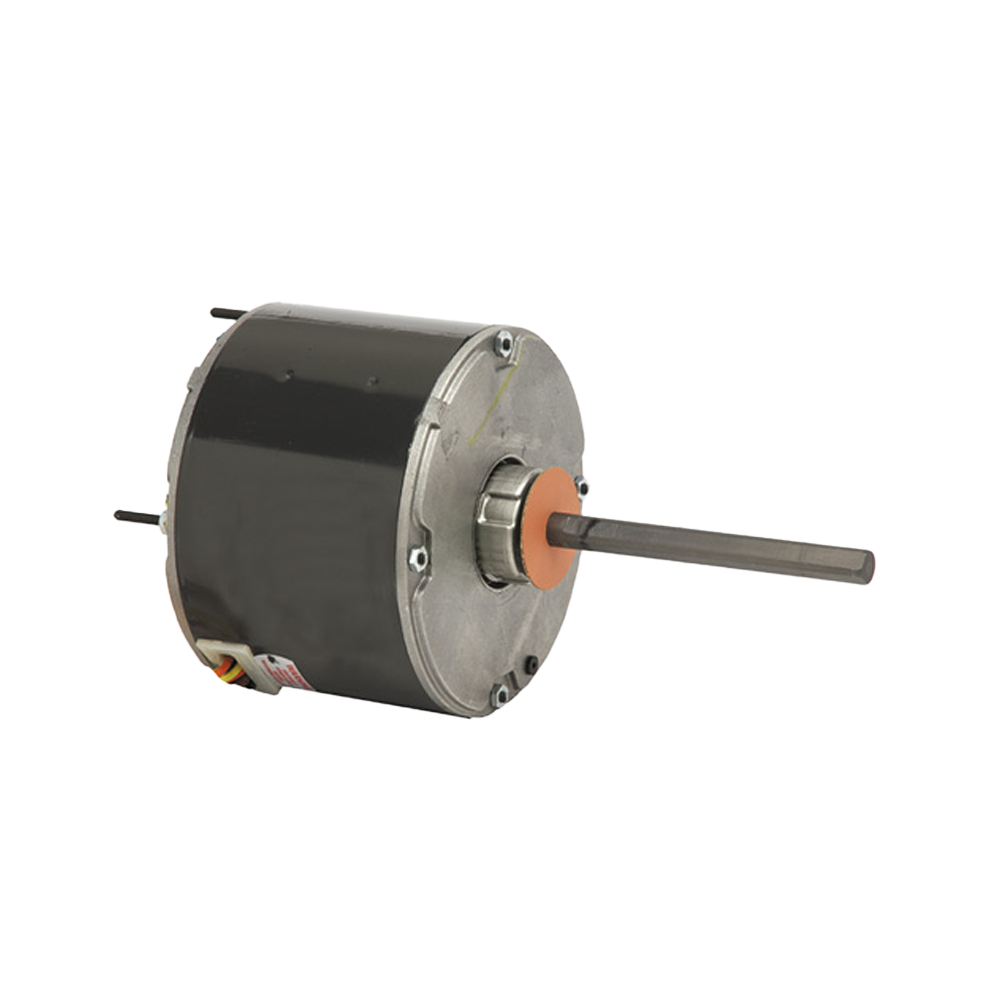

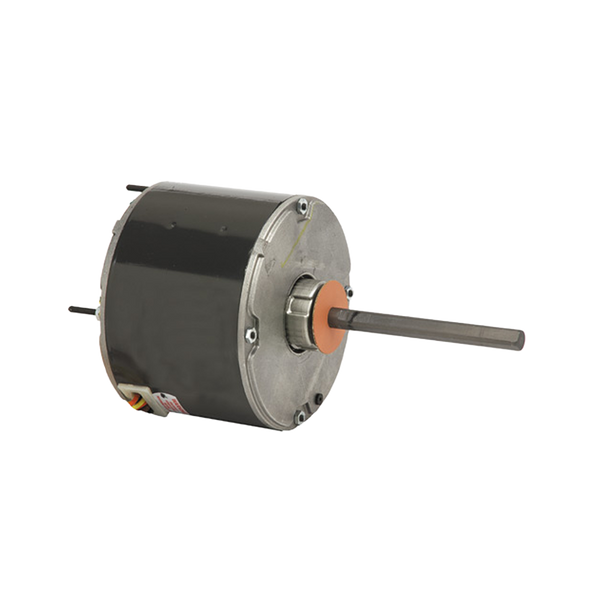

US Motors 1861 1/3HP 1075RPM 208-230V Split Capacitor Condenser Fan, Enclosed, Air Over
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
US Motors 1861 1/3HP 1075RPM 208-230V Split Capacitor Condenser Fan, Enclosed, Air Over
Features:
140°F (60°C) Ambient Design
Bearings Have All Angle Thrust System
Class B Insulation
Suitable for Use With 370V Capacitors
Extended Studs
30" Leads
Hubless Lead End
Drain Holes Both Ends
Reversible Rotation (Unless otherwise noted)
Automatic Reset Thermal Overload Protector
Continuous Duty
Specs:
HORSEPOWER: .33
KILOWATTS: 0.3
POLES: 6
NUMBER SPEEDS: 1
RPM: 1075
HERTZ: 60
VOLTS PRIMARY: 208-230 V
VOLTS : 208
VOLTS 2: 230
FRME : 48
SHAFT CODE: Y
STATOR DIAMETER: 5.5
STACK: 2
MOUNTING: STUD/BAND
MOTOR TYPE: FHP
OPPOSITE END BEARING: SELF-ALIGN
SHAFT END BEARING: SELF-ALIGN
AMBIENT: 60
ROTATION: CCW LEAD END REV
SERVICE FACTOR: 1
RUNCAPMFD: 7.5
RUNCAPVOLTS: 370
THERMAL PROTECTION: AUTOMATIC RESET
BREAKDOWN TORQUE: 45.6
BREAKDOWN TORQUE UOM: OZFT
LOCKED ROTOR TORQUE: 10.85
LOCKED ROTOR TORQUE UOM: OZFT
INSULATION CLASS: B
LOCKED ROTOR AMPS: 5.27
FULL LOAD AMPS PRIMARY: 2.0
