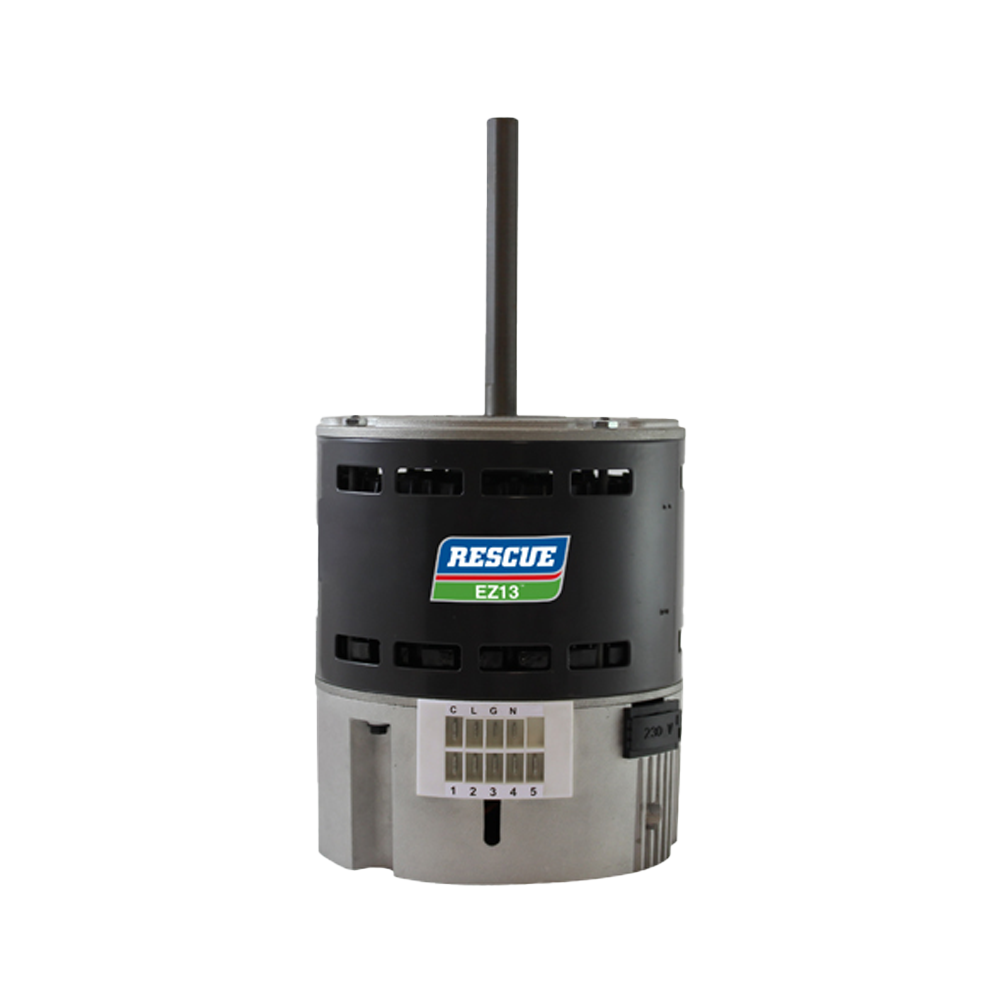

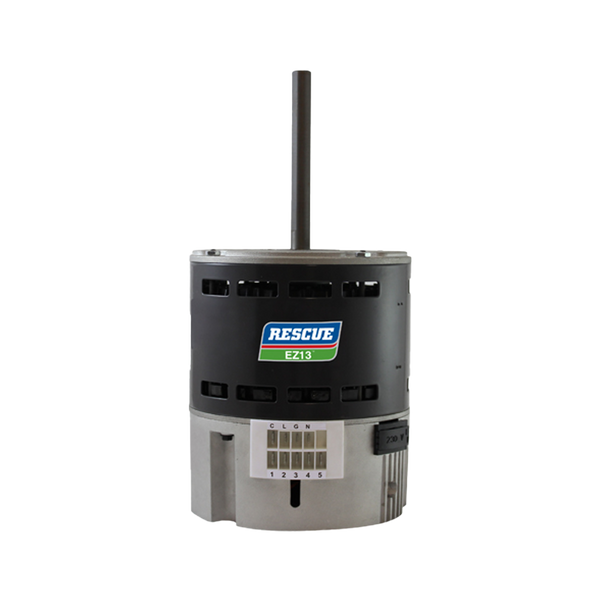

US Motors 5632 1/2-1/3HP 1075RPM 115/208-230V EZ13 Rescue ECM Direct Drive Dual Voltage
US Motors 5632 1/2-1/3HP 1075RPM 115/208-230V EZ13 Rescue ECM Direct Drive Dual Voltage
Regular price
$249.57
Regular price
Sale price
$249.57
Unit price
/
per
Low stock: 1 left
US Motors 5632 1/2-1/3HP 1075RPM 115/208-230V EZ13 Rescue ECM Direct Drive Dual Voltage
Specs:
HORSEPOWER: .5
HORSEPOWER 2: 0.333
POLES: 10
NUMBER SPEEDS: 1
RPM: 1075
HERTZ: 60
HERTZ 2: 50
VOLTS PRIMARY: 115/208-230 V
VOLTS : 115
VOLTS 2: 208
VOLTS 3: 230
FRME : 48
SHAFT CODE: Y
STACK: 1.125
MOTOR TYPE: FHP
OPPOSITE END BEARING: BALL
SHAFT END BEARING: BALL
AMBIENT: 40
ROTATION: REVERSIBLE
THERMAL PROTECTION: ELECTRONICALLY PROTECTED MOTOR
BREAKDOWN TORQUE UOM: OZFT
LOCKED ROTOR TORQUE UOM: OZFT
INSULATION CLASS: B
FULL LOAD AMPS PRIMARY: 6.3/4.0-3.8 & 6.4/4.0-3.8
