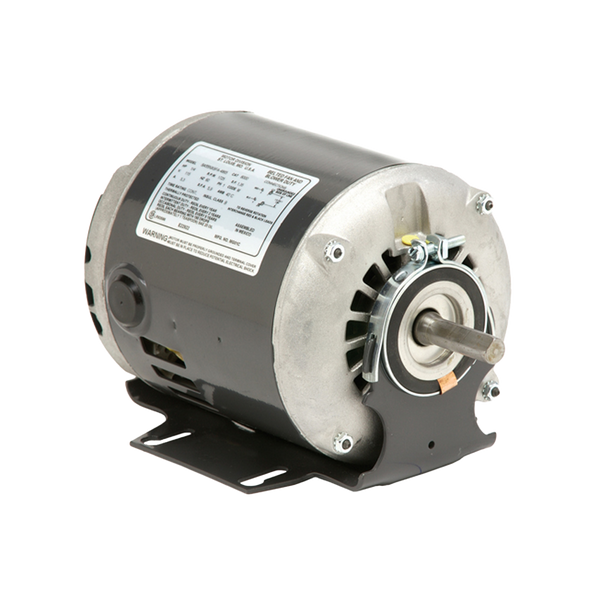

US Motors 8100 1/3HP 1725RPM 115V Split Phase Belted Fan And Blower, NEMA 48 Frame
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
US Motors 8100 1/3HP 1725RPM 115V Split Phase Belted Fan And Blower, NEMA 48 Frame
Features:
Resilient Base
Class B Insulation Unless Otherwise Noted
With Threaded Conduit Hole
Reversible Rotation
Automatic Reset Thermal Overload Protector
Specs:
HORSEPOWER: .33
KILOWATTS: 0.3
POLES: 4
NUMBER SPEEDS: 1
RPM: 1725
HERTZ: 60
VOLTS PRIMARY: 115 V
VOLTS : 115
FRME : 48
STATOR DIAMETER: 5.5
STACK: 1.5
MOUNTING: RESILIENT
MOTOR TYPE: FHP
OPPOSITE END BEARING: 6203
SHAFT END BEARING: 6203
AMBIENT: 40
ROTATION: CCW LEAD END REV
SERVICE FACTOR: 1.35
THERMAL PROTECTION: AUTOMATIC RESET
BREAKDOWN TORQUE: 44.17
BREAKDOWN TORQUE UOM: OZFT
LOCKED ROTOR TORQUE: 19.19
LOCKED ROTOR TORQUE UOM: OZFT
INSULATION CLASS: B
KVA CODE LETTER: N
LOCKED ROTOR AMPS: 30.91
FULL LOAD AMPS PRIMARY: 6.4
SERVICE FACTOR AMPS PRIMARY: 7.0
