1F72-151

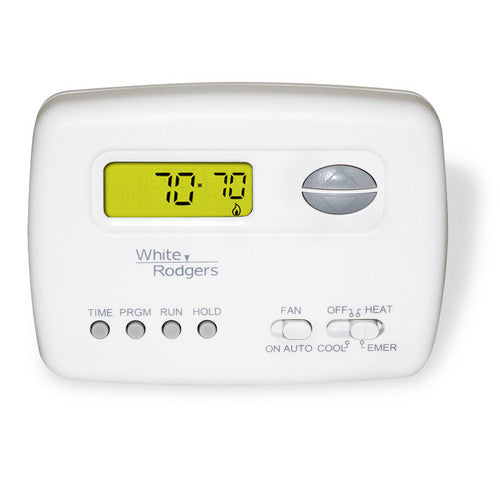

White-Rodgers 1F72-151 Heat Pump Programmable Thermostat
FEATURES
Heat Pump compatible.
Large LCD display with backlight.
Permanent program retention during power loss.
Selectable Celsius or Fahrenheit temperature display.
Selectable Energy Management Recovery (1F72-151).
Classic White color
Suitable replacement for Robertshaw 8625 and Totaline P474-1050
SPECIFICATIONS
Electrical Rating: 20 to 30 VAC, NEC Class II
Terminal Load: 1.0 A per terminal,1.5 A maximum all terminals combined
Setpoint Range: 45 to 99°F (7 to 37°C)
Anticipation, Heating: Adjustable
Anticipation, Cooling: Adjustable
Rated Differential, Heat Pump: Heat & Cool 0.75° or 1.2°F
Operating Ambient: 32 to +105°F (0 to +43°C)
Operating Humidity: 90% non-condensing max.
Shipping Temperature Range: -4 to 149°F (-20 to 65°C)
Dimensions: 33/4"H x 51/8"W x 11/8"D
