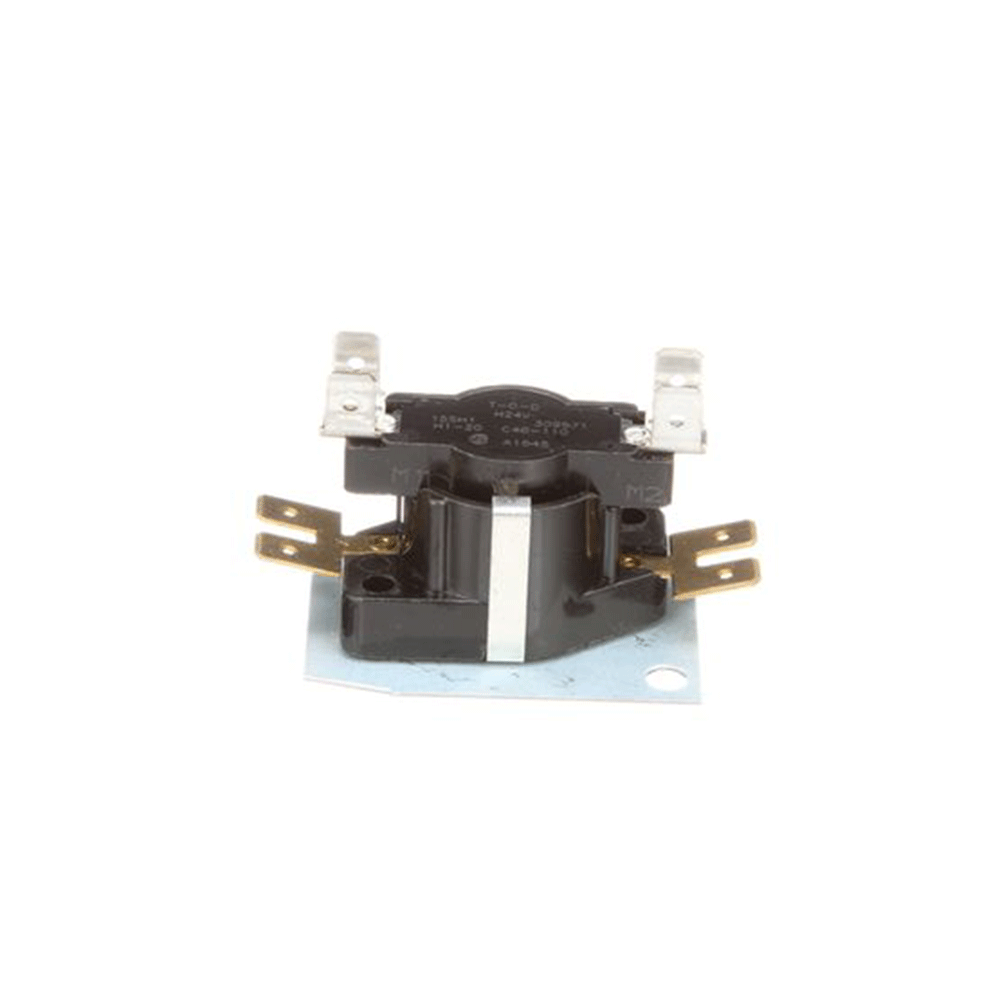

White-Rodgers 24A34-4 1 Timing, 2 Switch Electric Heat Sequencer
$18.73
Out of Stock
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The White-Rodgers 24A34-04 is a 1 timing, 2 switch electric heat sequencer direct replacement for most fan and heat sequencing functions.
Features
Replaces Honeywell, MARS, TOD, Gemline, Klixon (Texas Instruments)
24V input control
Multi-poise mounting
Any contacts (except M1 & M2) can be used as auxiliary contacts
Double quick-connect terminals for combination loads
Specifications
Timings: 1
Switches: 2
Timings On:
M5-M6: 30-90
M7-M8: 30-90
Timings Off:
M5-M6: 1-30
M7-M8: 1-30
INDUCTIVE (MOTOR) FULL LOAD 120 VAC: 14.0A
INDUCTIVE (MOTOR) FULL LOAD 240 VAC: 7.0A
INDUCTIVE (MOTOR) LOCKED ROTOR 120 VAC: 72.0A
INDUCTIVE (MOTOR) LOCKED ROTOR 240 VAC: 42.0A
RESISTIVE (NONINDUCTIVE) 120 VAC: 25.0A, 3000W
RESISTIVE (NONINDUCTIVE) 240 VAC: 25.0A, 6000W
RESISTIVE (NONINDUCTIVE) 480 VAC: 12.5A, 6000W
PILOT DUTY: 120-240 VAC 125 VA
