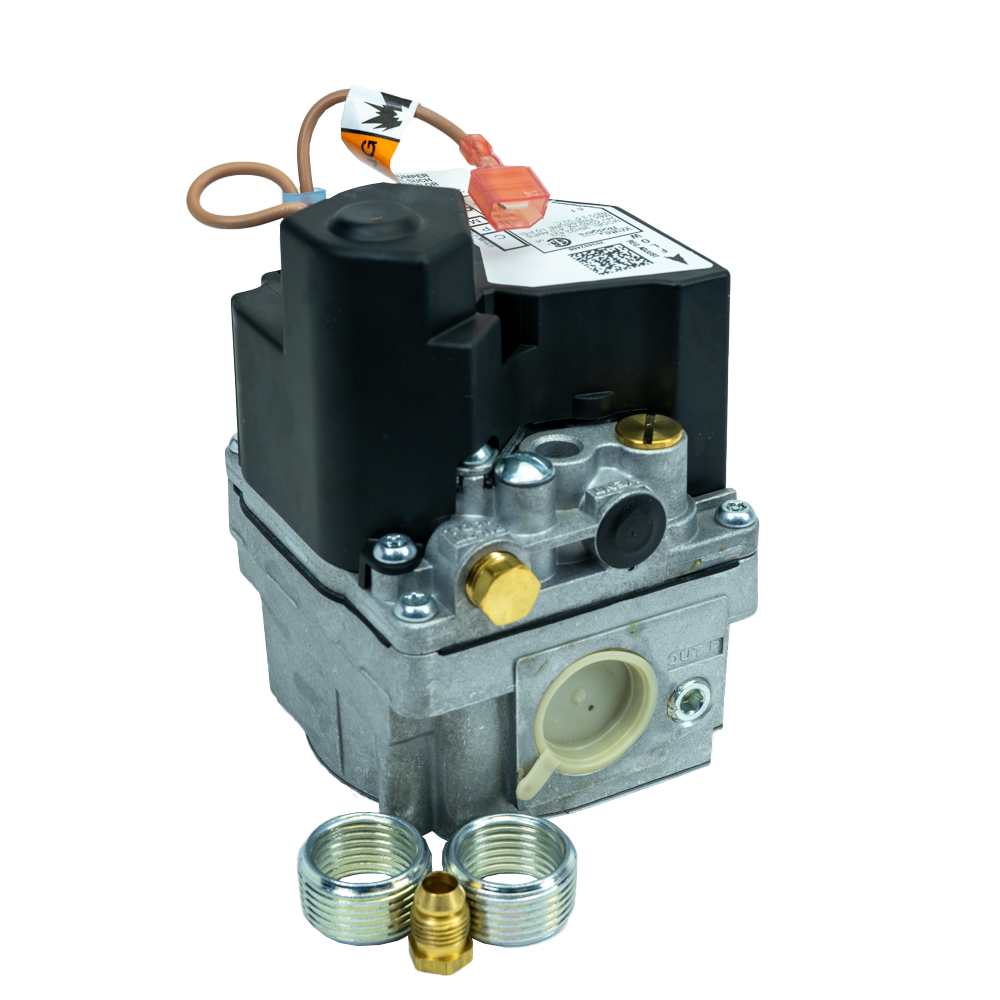

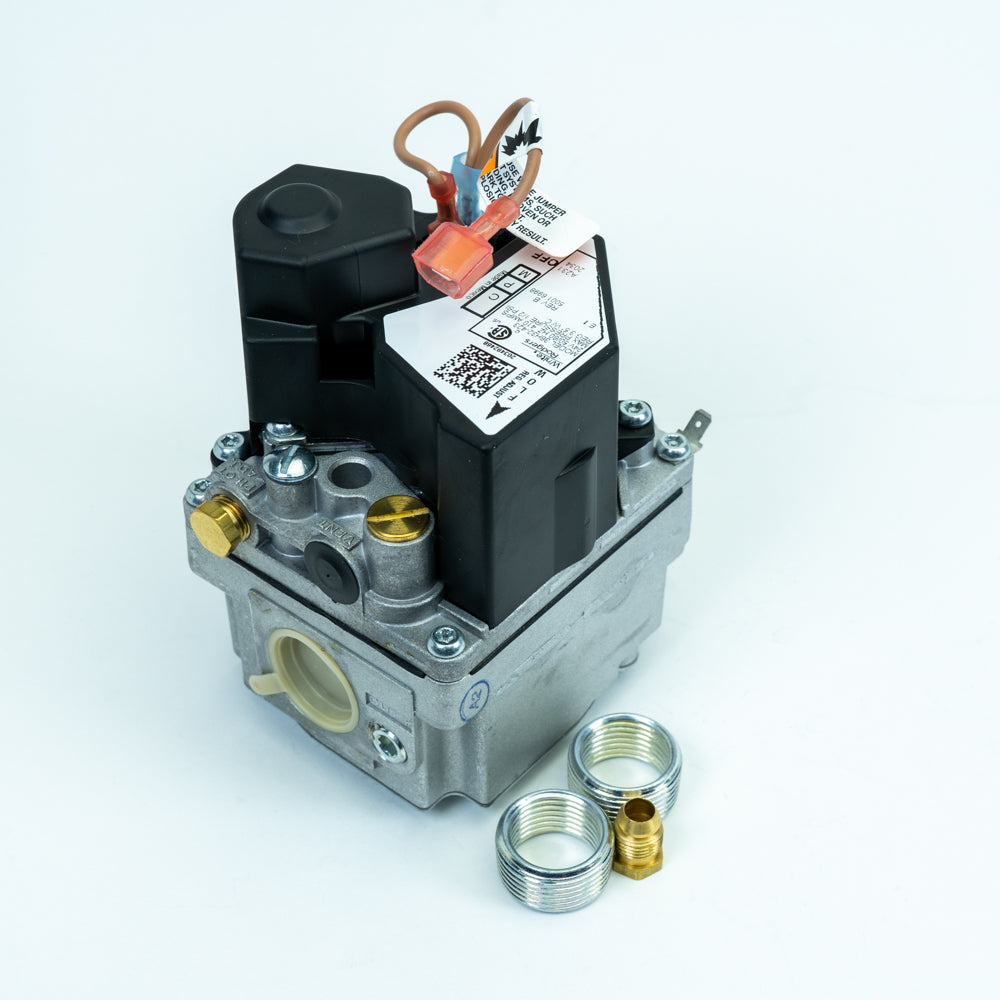

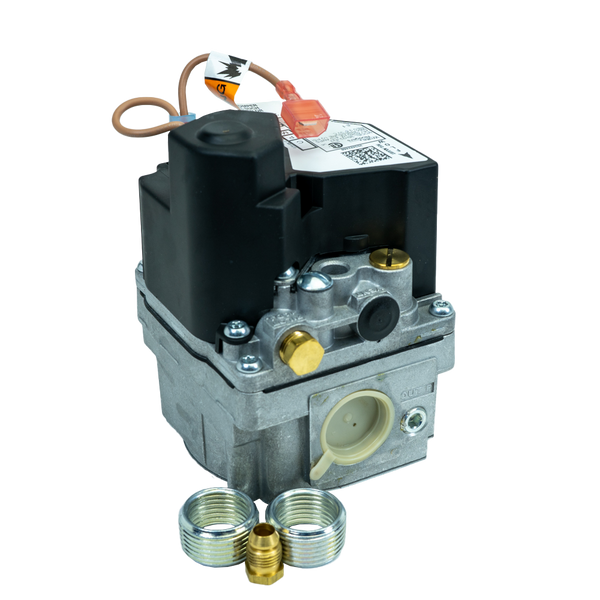

White-Rodgers 36H32-423 Universal Gas Valve with Reducer Bushings
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
Universal Single Stage Fast Open HSI/DSI/Intermittent/Proven Pilot Gas Valve, 24V, 3/4 X 3/4, Reducer Bushings (Two 3/4 to 1/2), 1/4 Male Spade Quick Connect Terminals, Nat. Gas (Includes LP Conversion Kit), Replaces 36C68-423; Can Replace 36H32-304
The 36H Combination Gas Control Valve is a Versatile Multifunction Control Designed to Meet the Requirements for Use with Intermittent Ignition Systems (Direct Ignition, Proven Pilot). The 36H Valve is Our Highest Capacity Combination Gas Valve
Features
Pilot port plugged for Hot Surface and Direct Spark Ignition systems, remove plug for Intermittent/Proven Pilot systems
Fast open, single stage
Electric on-off switch and convenient quick connect coil terminals
Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
Mounting position upright, or 0° to 90°From upright in any direction
CSA approved
