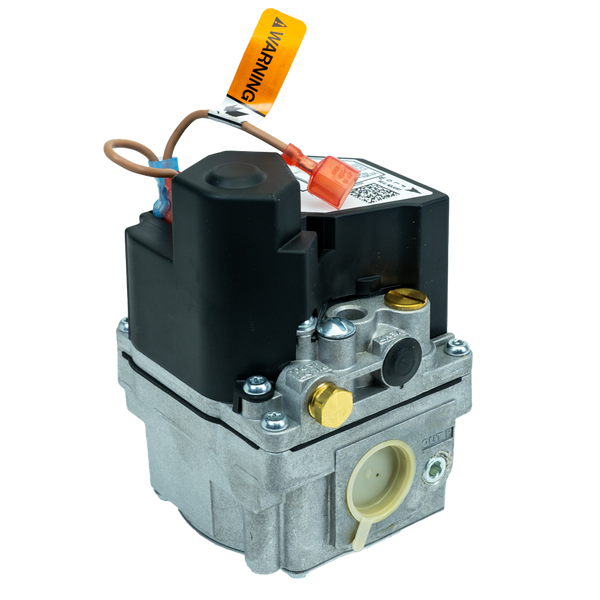

White-Rodgers 36H32304 Universal Single-Stage Proven Pilot Gas Valve
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The White-Rodgers 36H32304 Universal Single-Stage Proven Pilot Gas Valve is a 36H Combination Gas Control Valve, making it the highest-capacity combination gas valve that White-Rodgers and Emerson has to offer. The White-Rodgers 36H32304 is versatile and has multifunction control that allows it to be used with both direct ignition and proven pilot intermittent ignition systems.
The White-Rodgers 36H32304 Universal Single-Stage HSI/DSI/Intermittent/Proven Pilot Gas Valve has a fast open and an electric on/off switch. It's bushings are 1/2in by 3/4in and 1/2in by 3/8in with a 1/4in O.D.
It's flow is straight through and it operates on 24 Volts.
A pilot fitting is included with the White-Rodgers 36H32304.
This item replaces the 36E36-304 and 36H32-304.
Features
Universal, Single Stage
Pilot port plugged for Hot Surface and Direct Spark Ignition systems, remove plug for Intermittent/Proven Pilot systems
Fast open, single stage
Electric on-off switch and convenient quick connect coil terminals
Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
Mounting position upright, or 0° to 90°From upright in any direction
CSA approved
