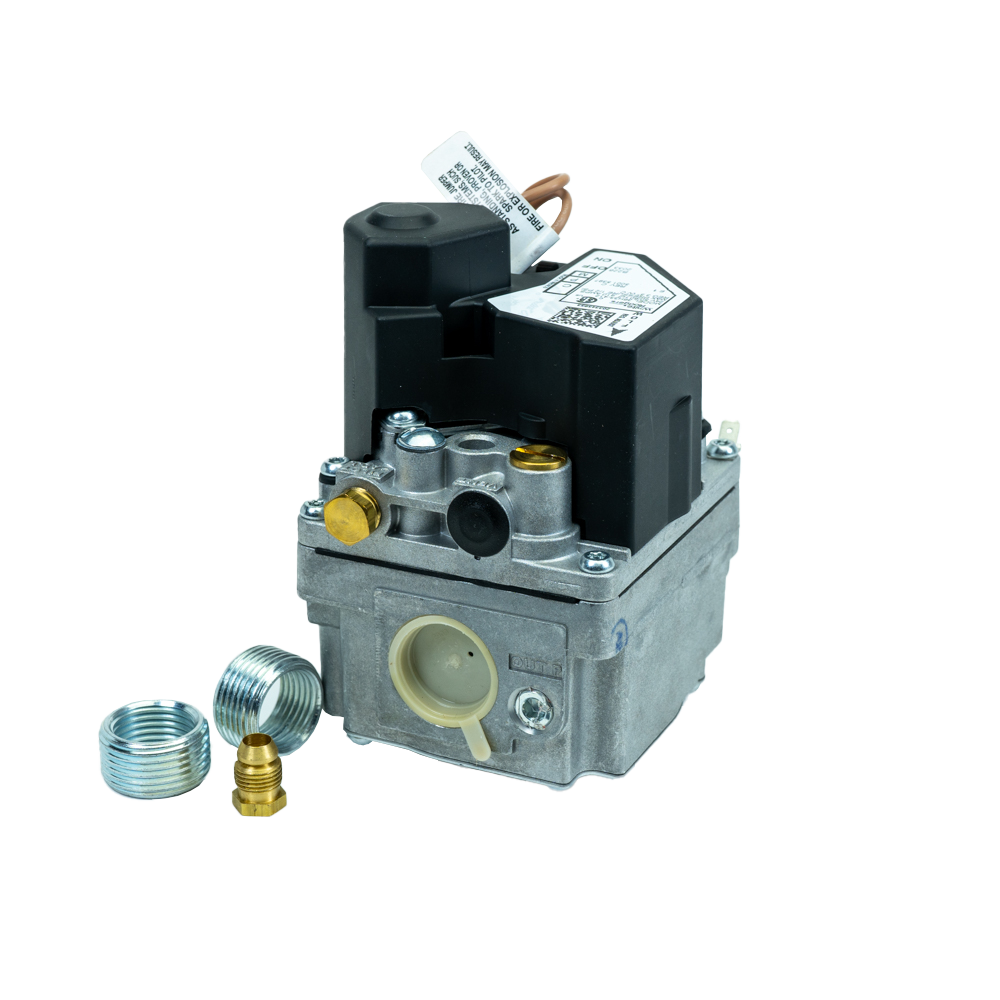

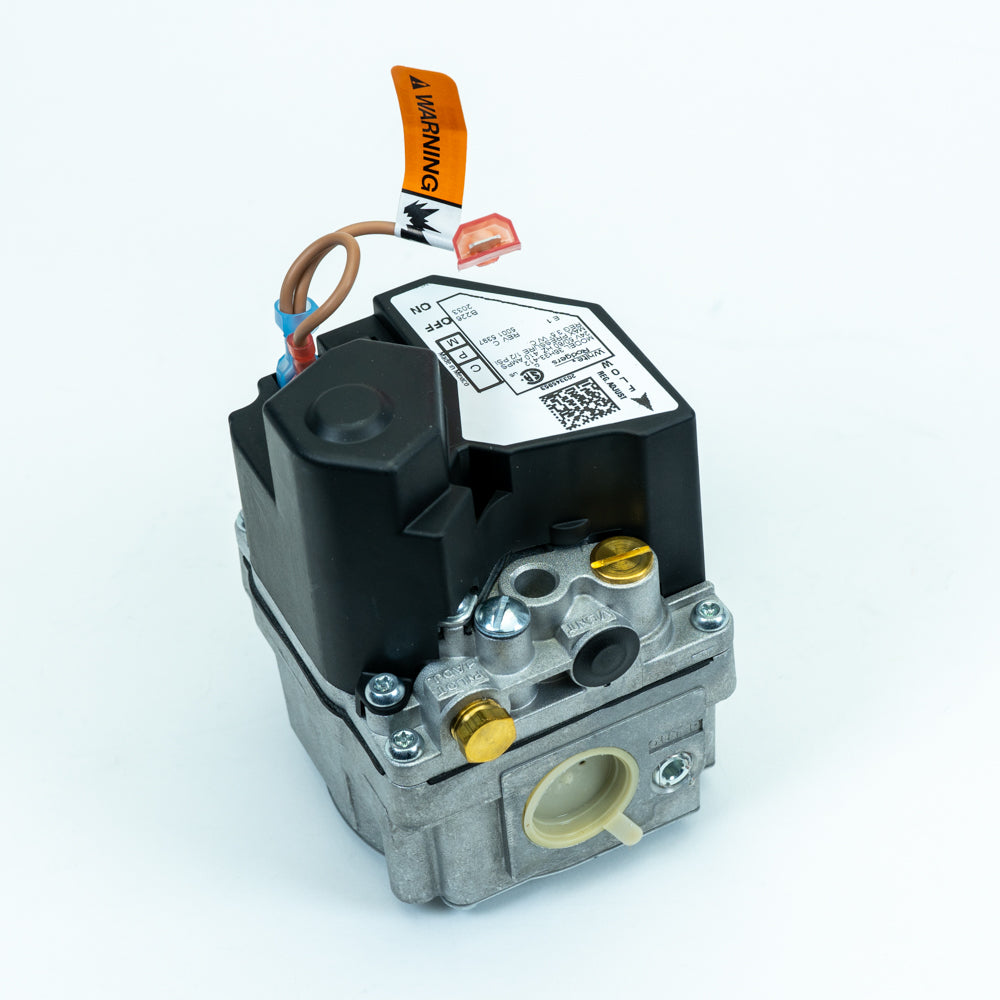

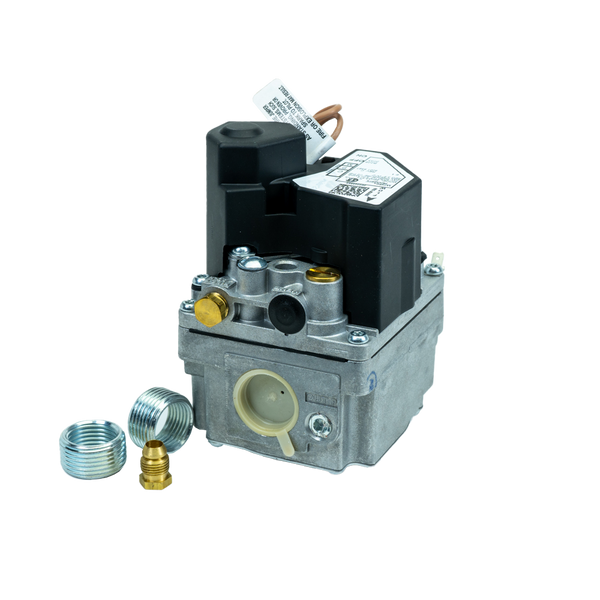

White-Rodgers 36H33-412 Slow Opening Furnace Gas Valve, 3/4in x 3/4in
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
Universal Single Stage HSI/DSI/Intermittent/Proven Pilot Gas Valve, 24V, Flow – Straight Thru, 3/4" X 3/4" NPT, Two 1/2" X 3/4" Bushings, Slow Open, Electric On/Off Switch, 1/4" O.D. Pilot Fitting Included, LP Conversion Kit
The 36H Combination Gas Control Valve is a Versatile Multifunction Control Designed to Meet the Requirements for Use with Intermittent Ignition Systems (Direct Ignition, Proven Pilot). The 36H Valve is Our Highest Capacity Combination Gas Valve
Features
Pilot port plugged for Hot Surface and Direct Spark Ignition systems, remove plug for Intermittent/Proven Pilot systems
Slow open, single stage
Electric on-off switch and convenient quick connect coil terminals
Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
Mounting position upright, or 0° to 90°From upright in any direction
CSA approved
