36H64-463

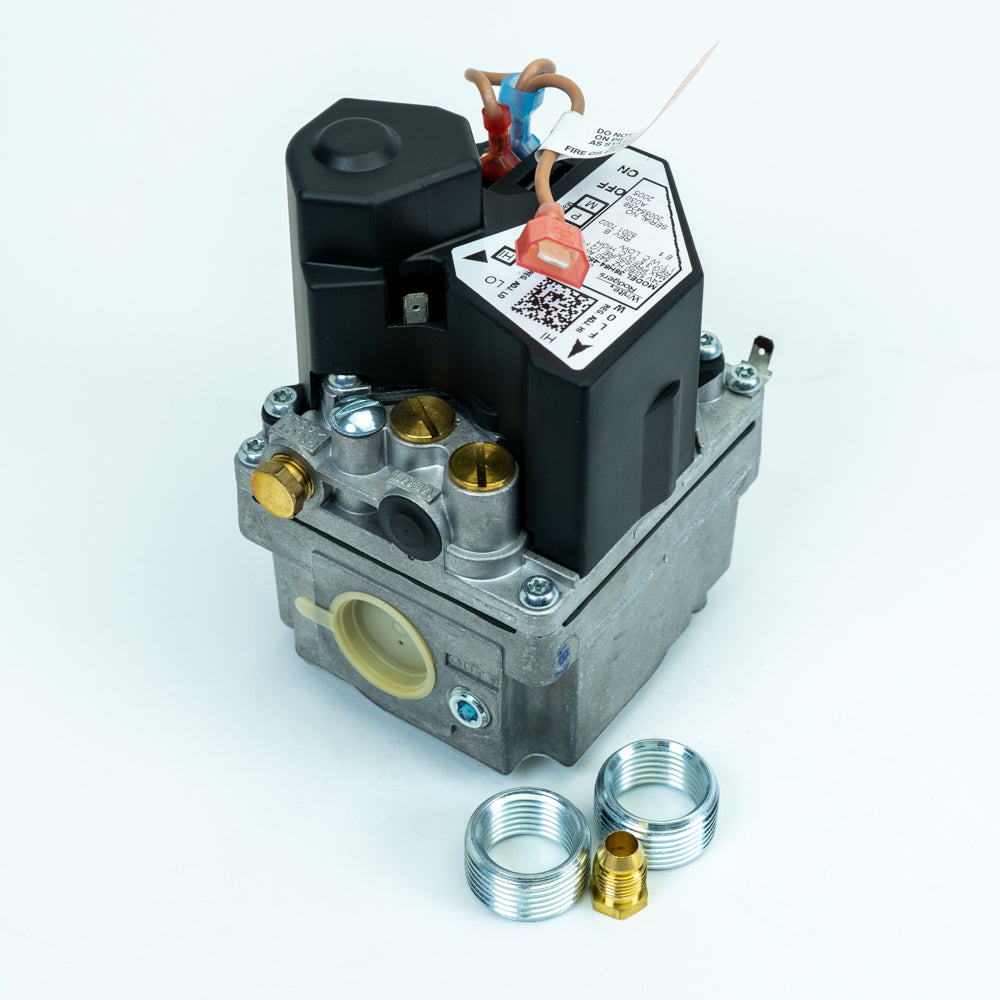

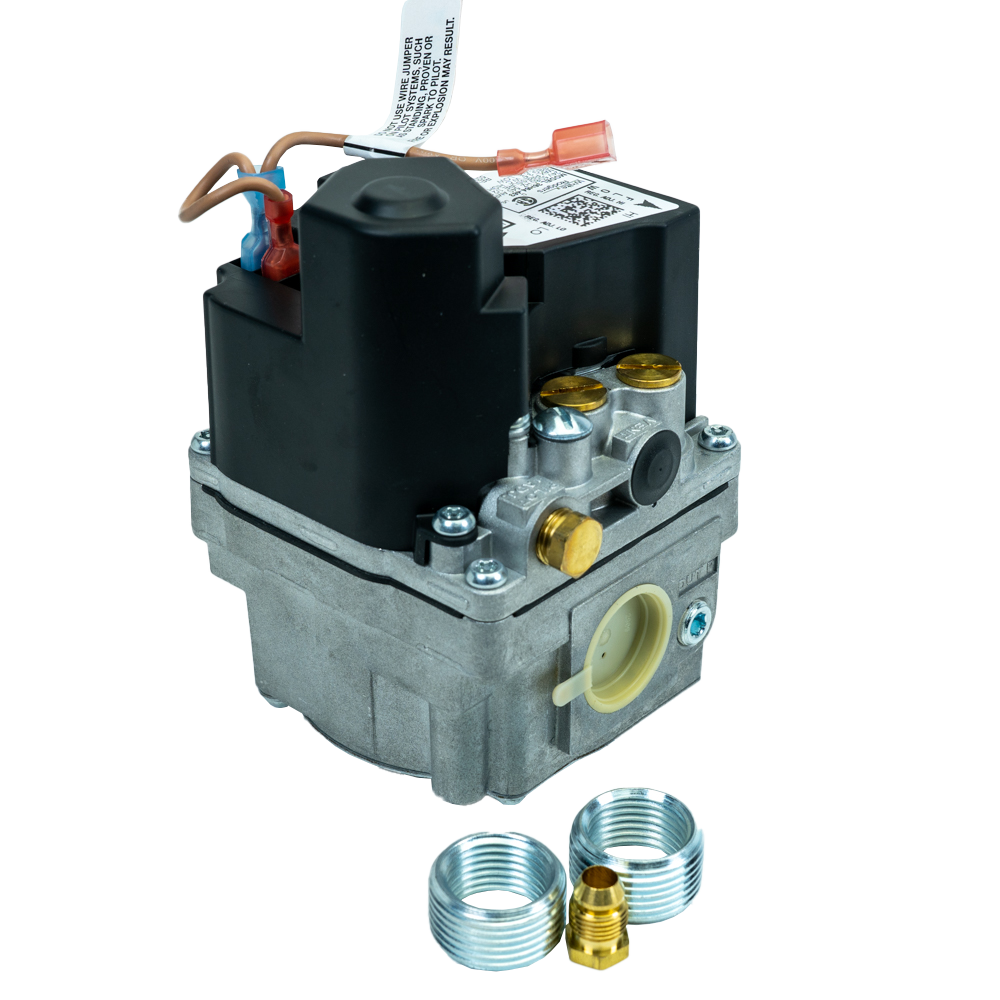

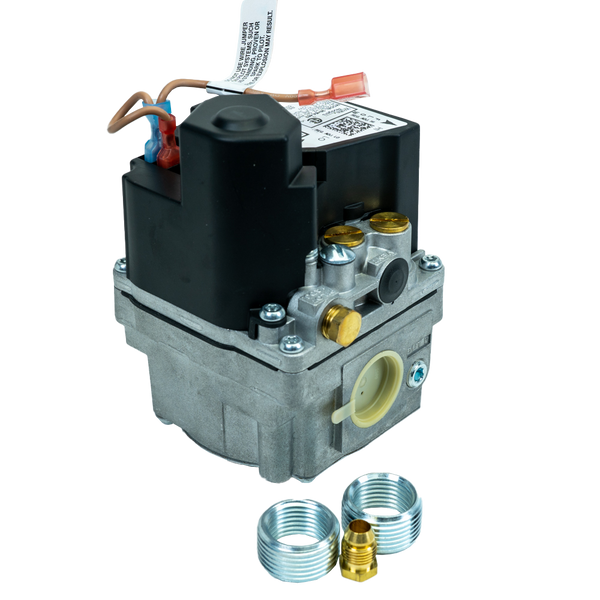

White-Rodgers 36H64-463 Universal Two-Stage Proven Pilot Gas Valve
The White-Rodgers 36H64-463 Universal Two-Stage Proven Pilot Gas Valve is a versatile, combination gas control valve that is designed for use with Intermittent Ignition Systems (Direct Ignition and Proven Pilot). This 36H Gas Valve is the highest capacity combination gas valve created by White-Rodgers.
This 36H64-463 Universal Gas Valve is multi-purpose. When the Pilot Port is plugged in, it can be used for Hot Surface and Direct Spark Ignition Systems. If you remove the plug, it can be used for Intermittent and Proven Pilot Systems.
Features and Specifications
24 Volt
3/4in by 3/4in NPT
Fast Open, Two Sate
1.4 Male Spade Quick Connect Terminals
Natural Gas and Includes LP Conversion Kit
Electric On-Off Switch
Tamper Resistant Screws
Controlled Gasket Compression for High Inlet Pressures
Upright Mounting Position or 0° to 90° from upright in any direction
CSA Approved
Replaces 36C76-406, 36C76-420, 36C76-462, 36C76-463 and Other Models
