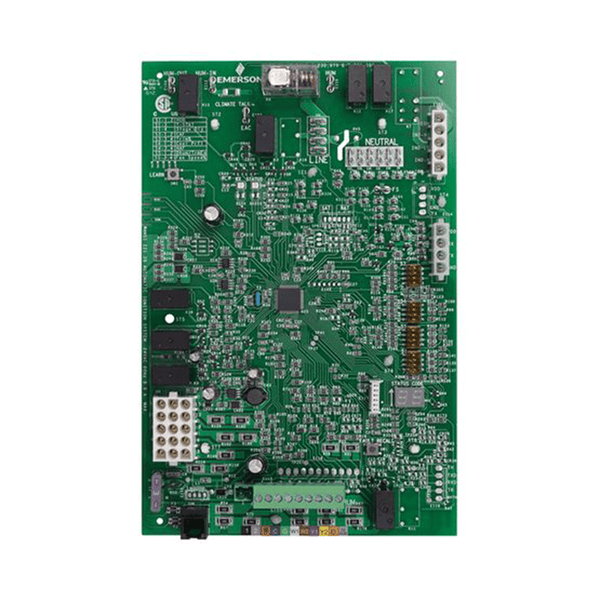

White-Rodgers 50C51-707 Two-Stage HSI Integrated Furnace Control
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.

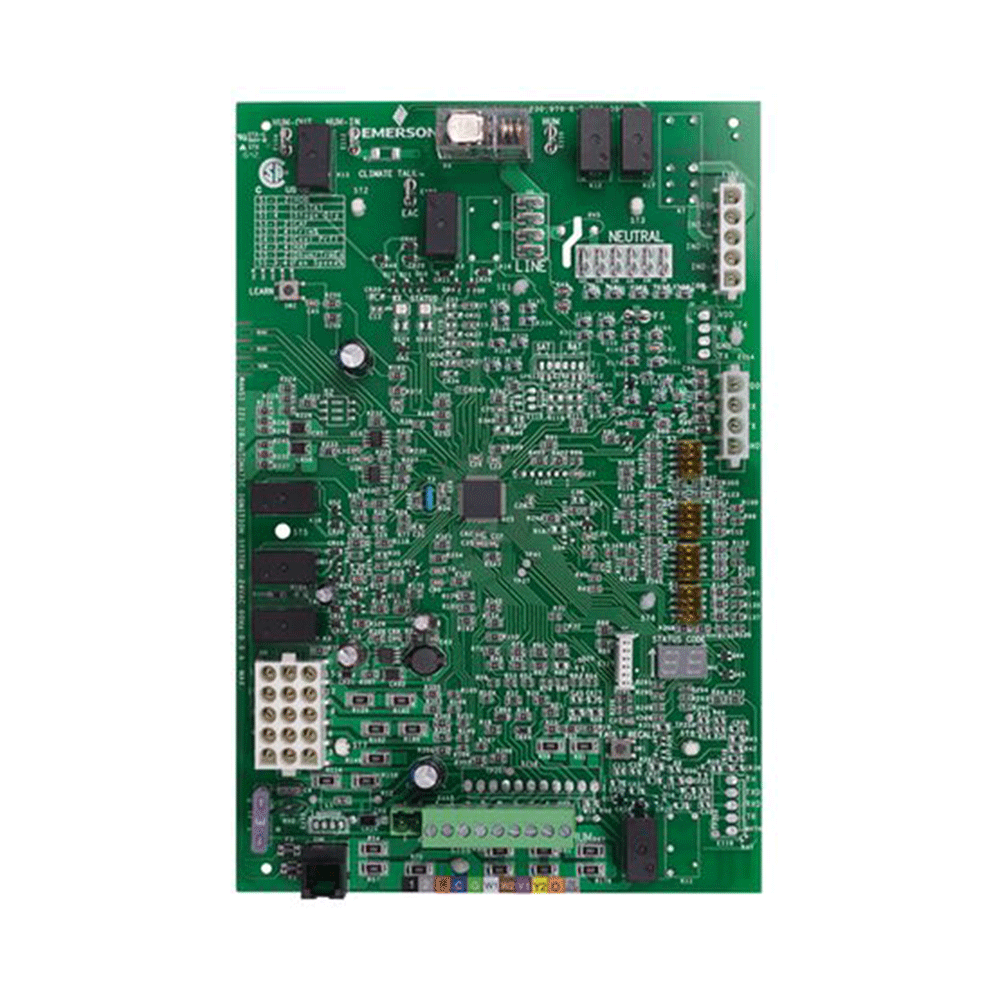

The Emerson 50C51-707 is a direct replacement integrated furnace control for Goodman OEM parts.
Features
Direct OEM replacements designed for high volume major brand controls
Models include PSC, Variable Speed and ECMx motor control
Diagnostic LED indicators streamline installation and system troubleshooting
120V air cleaner output and 120V humidifier output up to 1 Amp max
Factory standard safety timings and adjustable fan delay options
Replaceable automotive style fuse
Specifications
Replacement Board For: Goodman
Stages: Two-Stage
Ignition Type: 14.5 FLA - 25.0 LRA @ 120 Vac
Ignitor Voltage: 120 Vac
Inducer Motor/Blower Motor: Variable Speed/Variable Speed
Blower MotorSpeed Taps: 4-wire Interface
Thermostat Inputs: 1, 2, R, C, W1, W2, Y1, Y2, G, O DHUM
Twinning: No
Communicating System: yes
Mounting Options: Standoff
