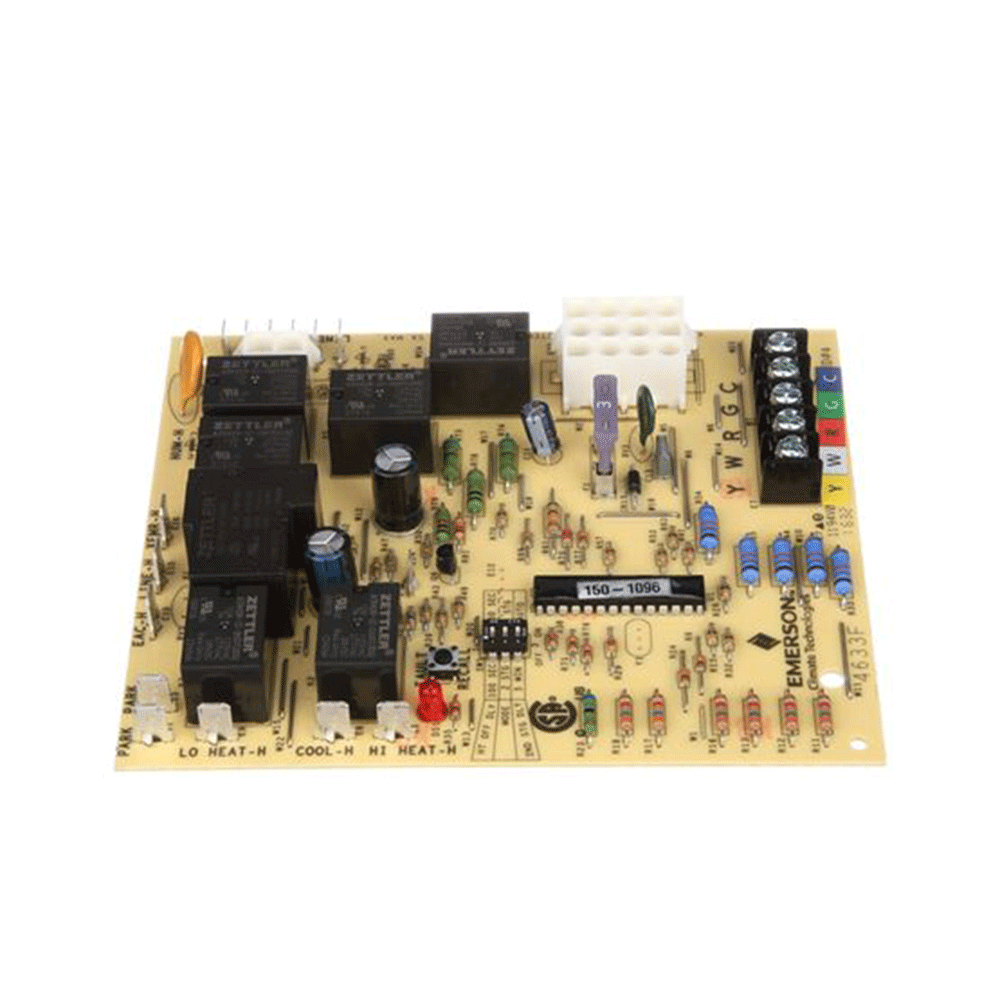

White-Rodgers 50M56-743 HSI Integrated Furnace Control Board
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The White-Rodgers 50M56-743 is a Goodman Direct Replacement Integrated Furnace Control Board.
Features
Direct OEM replacements designed for high volume major brand controls
PSC Inducer/Blower Motor
System diagnostic LED with fault recall
120V air cleaner output and 120V humidifier output up to 1 Amp max
Factory standard safety timings and adjustable fan delay options
Replaceable automotive style fuse
Specifications
Replacement for: Goodman
Stages: Single or Two Stage
Ignition Type: 14.5 FLA - 25.0 LRA @ 120 Vac
Ignitor Voltage: 120 Vac
Inducer Motor/Blower Motor: PSC/PSC
Blower MotorSpeed Taps:: Lo Heat, Hi Heat, Cool
Thermostat Inputs: R, C, W, Y G
Accessories: None
Twinning: No
Communicating System: No
Mounting Options: Standoff
