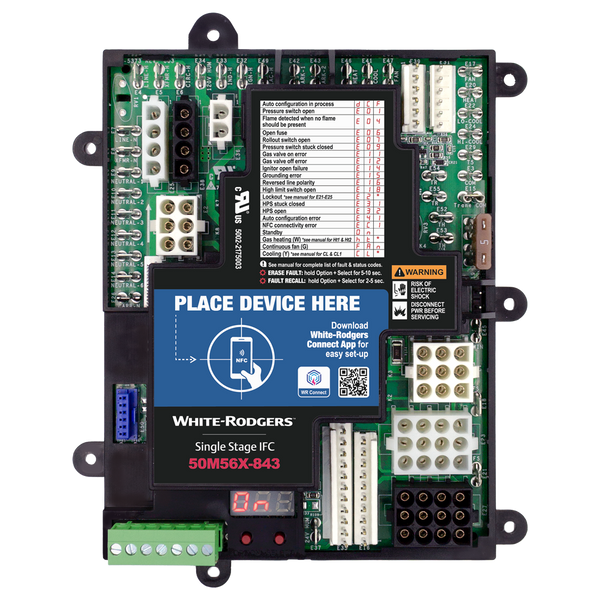

White-Rodgers 50M56X-843 Integrated Furnace Controls Universal Replacement
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
Universal single stage HSI integrated furnace control for PSC and ECMx blower motors. Includes a universal 120V nitride ignitor and utilizes the White-Rodgers Connect app for simple configuration and diagnostics.
Features:
Configurable for either PSC or ECMx blower motors
Reduce inventory by replacing over 550 part numbers
Quick configuration (without power) and diagnostics with the White-Rodgers Connect App
OEM harness detection, no additional harnesses required
120V Nitride ignitor included
7-Segment LED display provides unlimited configuration options
Rollout accessory is not required
Thermostat connector block for simple wiring
Specifications:
Input Voltage: 25 Vac, 60 Hz
Circulator Relay: 14.5 FLA-25.0 LRA @ 120 Vac
Operating Temperature Range: -40 to 175 deg. F (-40 to 79 deg. C)
Operating Humidity: 5% to 93% relative humidity (non-condensing)
Accessories: Includes Ignitor
Agency Approvals: UL- US, Canada
